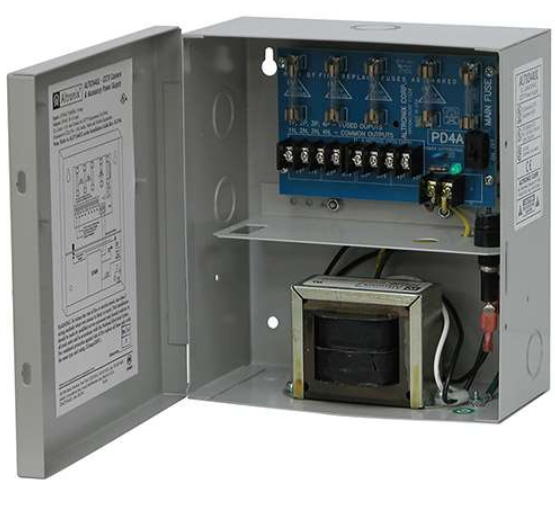

ALTRONIX ALTV244UL 4 FUSED OUTPUTS CCTV POWER SUPPLY

$170.99

ALTV244UL provides 24VAC or 28VAC distributed via four (4) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.

Input:

115VAC, 50/60Hz, 0.9 amp.

Output:

Four (4) fuse protected outputs.
24VAC @ 3.5 amp (85VA) supply current (0.875 amp per device, 3.5 amp max.) or 28VAC @ 3 amp (85VA) supply current (0.75 amp per device, 3.5 amp max.).
Outputs are rated @ 3.5 amp.
Surge suppression.

Electrical:

Operating temperature: 0° C to 49° C ambient.
BTU/Hr.: 42.99BTU/Hr.
System AC input VA requirement: 103.5VA.

Features:

Secondary fuse rated @ 5 amp/250V.
AC power LED.
Power ON/OFF switch.
Spare fuses provided.



Weight 3.3 lbs
Input

115VAC, 50/60Hz, 0.9 amp

Output

Four (4) fuse protected outputs.
• 24VAC @ 3.5 amp (85VA) supply current
(0.875 amp per device, 3.5 amp max.)
or 28VAC @ 3 amp (85VA) supply current
(0.75 amp per device, 3.5 amp max.).
• Outputs are rated @ 3.5 amp.
• Surge suppression.

Electrical

Operating temperature: 0º C to 49º C ambient.
• BTU/Hr.: 42.99 BTU/Hr.

Features

Secondary fuse rated @ 5 amp/250V.
• AC power LED.
• Power ON/OFF switch.
• Spare fuses provided.

Mechanical

NEMA1 Enclosure.
• Enclosure Dimensions (H x W x D approx.):
8.5” x 7.5” x 3.5” (215.9mm x 190.5mm x 88.9mm)
• Product weight (approx.): 6.4 lbs. (2.9 kg).
• Shipping weight (approx.): 7.0 lbs. (3.2 kg)
