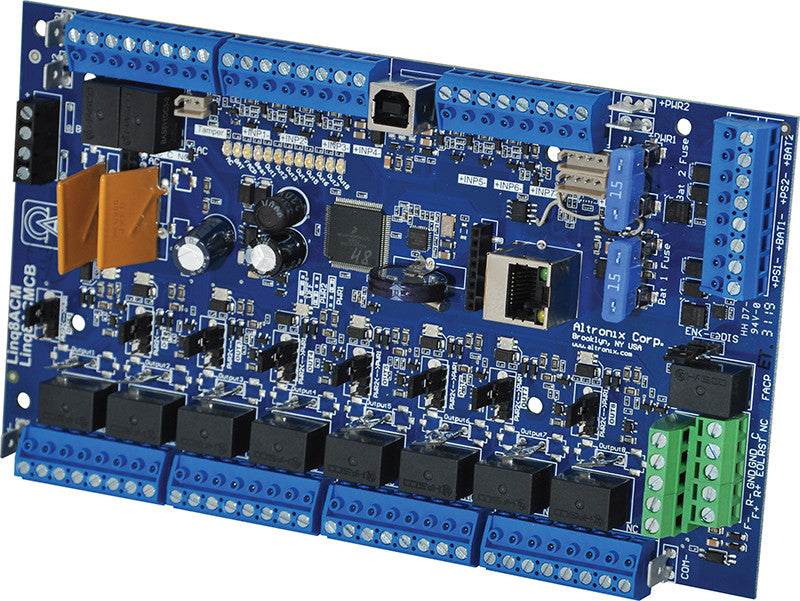

Altronix LINQ8ACMCB Network Access Power Controller, 8 PTC Class 2 power-limited Outputs, Board

$379.99

Altronix LINQ8ACMCB dual input network access power controller which can be installed in Altronix wall and rack mount enclosures to facilitate access control deployment. Access Power Controller’s dual input design allows power to be steered from one (1) or two (2) independent low voltage 12 or 24 VDC Altronix power supplies to eight (8) independently controlled PTC protected outputs. Outputs are activated by an open collector sink, normally open (NO), normally closed (NC) dry trigger input, or wet output from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. LINQ8ACMCB will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs. The spade connectors allow you to daisy chain power to multiple LINQ8ACMCB modules. This feature allows you to distribute the power over more outputs for larger systems. Built-in LINQ™ Network Power Management facilitates monitoring, reporting and control of power/diagnostics.

LINQ8ACMCB has built-in LINQ technology which facilitates monitoring, reporting, and control of one (1) or two (2) low voltage AC or supervised DC power supply/chargers over the network. They report diagnostics via Email and Windows Dashboard Alert notifications, greatly reducing system downtime and eliminating unnecessary service calls. LINQ8ACMCB retrofits with most currently installed multi-output power supply/chargers.

  • Input
    • Two (2) Independent Low Voltage Inputs.
    • Input Voltage Options:
      • Single Input:
        • Input1:
        • 12 or 24 VDC from eFlow series power supply.
      • Dual Input Option 1:
        • Input 1:
        • 12 or 24 VDC from eFlow series power supply.
        • Input 2:
        • a) 12 or 24 VDC from eFlow series power supply.
        • b) 5 or 12 VDC from VR6 voltage regulator.
      • Dual Input Option 2:
        • 12 and 24 VDC from Tango1B PoE Driven Power Supply.
      • Voltage Range
        • 5VDC to 24VDC up to 10A each or 16A total input.
    • Current Consumption: 0.6A @ 12V, 0.3A @ 24V with all relays energized.
    • Main Fuse Rating: 15/32A.
  • Outputs
    • PTC protected outputs rated @ 2A per output, Class 2 power-limited. Total output 16A max.
    • Do not exceed the individual power supply ratings.
    • Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
    • Individual outputs may be set to OFF position for servicing.
  • Output Ratings
    • PTCs are rated 2A each.
    • Total output current is determined by the power supply(ies), not to exceed a maximum of 10A for each input.
  • Programming Features
      • Eight (8) Programmable Outputs:
        • Fail-safe, fail-secure or auxiliary outputs.
        • Input controlled or manually controlled through software.
        • High (over) and low (under) voltage and current monitoring by output.
        • Multiple outputs may be programmed to be triggered by a single input.
        • Battery back-up by output.
      • Eight (8) Programmable Trigger Inputs:
        • Normally open (NO).
        • Normally colsed (NC).
        • Open collector sink inputs.
        • Wet Input (5VDC - 24VDC) with 10k resistor.
        • Any combination of the above.
      • Other Programmable Trigger Inputs:
        • Monitor power supply(ies) input for voltage and currect limits (high/low).
        • Input and output current calibration.
        • Programmable timer events.
        • Programmable user levels.
        • Enable or disable alerts by type.
        • Programmable alert reporting delay.
  • Fire Alarm Disconnect
    • Supervised: Inactive, latching or non-latching, individually selectable for any or all of the eight (8) outputs.
    • EOL: 10K Resistor.
  • LED Indicators
    • Green AC LED: indicates AC trouble condition.
    • Green BAT LED: indicates battery trouble condition.
    • Green FACP LED: indicates FACP disconnect is triggered.
    • Flashing Blue Heartbeat LED: indicates network connection.
    • Individual OUT1 - OUT8 Red LEDs: indicate outputs are triggered.
    • Individual Voltage LEDs: indicate 12VDC (Green) or 24VDC (Red).
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 93% +/- 5%.
    • BTU/Hr (approx.): 4 BTU/Hr.
    • Mounting hardware included.
