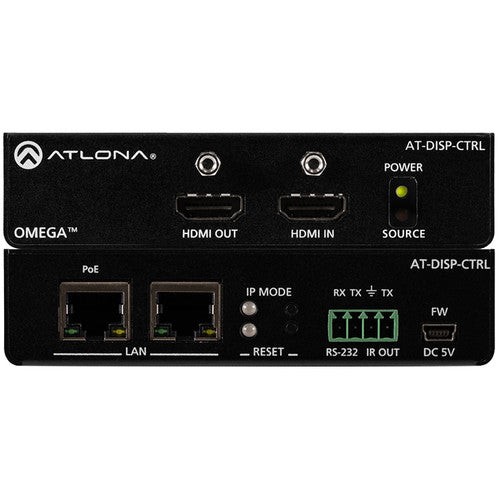

Atlona® AT-DISP-CTRL 4K/UHD HDMI Display Controller


The Atlona AT-DISP-CTRL is a compact display controller, designed for small meeting spaces and huddle rooms. The DISP-CTRL detects connection of a source device with an active signal, and then automatically sends a control command to power up a display. Similarly, when the device is disconnected, the DISP-CTRL delivers a command to power down the display. The DISP-CTRL can be configured to deliver pre-stored or user-programmed display control commands through TCP/IP, RS-232, IR, or CEC. Additionally, this controller includes EDID and HDCP management features, and can be powered locally or through Power over Ethernet (PoE). The DISP-CTRL is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps.

The DISP-CTRL enables simple plug-and-play operation for a presenter - while eliminating the need to rely on a handheld remote control that is often misplaced or non-functional (dead batteries). The DISP-CTRL can be used on its own, or in conjunction with an HDMI switcher such as the JunoX™ 451 (AT-JUNO-451). The AT-IR-CS-TX emitter cable is available for controlling a display through IR. For additional integration convenience, the DISP-CTRL features adjustable standby and lamp cooldown timer modes, TCP/IP and RS-232 control, and remote management with Atlona Management System (AMS). A comprehensive selection of display drivers from the Velocity™ Control System driver database is available for setting IR, RS-232, or IP control commands.


  • Huddle rooms and open meeting spaces - The DISP-CTRL provides a simple automation solution for BYOD connectivity in any gathering area with a display installed, but no other AV equipment.
  • AV system upgrades - The DISP-CTRL is ideal as an easy problem-solver for legacy AV installations to provide automatic display control capabilities.
  • Control systems - Use the DISP-CTRL to easily add a new display to an existing control system, while avoiding the need for extensive reprogramming.


Simple, automated display control

  • Automatically changes display power state based on HDMI device connection or disconnection. Control signals to display are transmitted via IP, RS-232, IR, or CEC.
  • Enables display, volume control, and input selection
  • Avoids the need for a handheld remote control which may be misplaced or non-functional

Programmable display control modes

  • A display can be powered off after a specified period of inactivity (no video signal detected), or after a device has been disconnected
  • Adjustable lamp cooldown mode also available to avoid prematurely powering up a projector after shutdown

4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats

  • Ideal for new and emerging 4K/UHD and HDR-capable sources and displays
  • Compatible with 4K HDR10 and Dolby® Vision™ @ 60 Hz
  • Fully supports video resolutions, audio formats, and color space formats in the HDMI 2.0b specification

HDCP 2.2 compliant

  • Adheres to latest specification for High-bandwidth Digital Content Protection
  • Allows protected content stream to pass between devices

HDMI input and pass-through ports with locking terminals

  • Ideal for Atlona LinkConnect™ cables with locking HDMI connectors
  • Ensures fully secure cable connections and failsafe image display
  • Form Factor: Surface-mountable
  • Height: 1"
  • Width: 4.3"
  • Depth: 3.5"
  • Weight (Approximate): 10.58 oz
  • Application/Usage: Meeting
  • Application/Usage: Room
  • Application/Usage: Display
  • Application/Usage: Laptop
  • Application/Usage: Controller
  • Application/Usage: AV System
  • Environmentally Friendly: Yes
  • Environmental Certification: RoHS
  • Limited Warranty: 10 Year
Manufacturer Atlona Technologies
Manufacturer Part Number AT-DISP-CTRL
Manufacturer Website Address
Brand Name Atlona
Product Model AT-DISP-CTRL
Product Name AT-DISP-CTRL Display Controller
Product Type Display Controller
Form Factor Surface-mountable
Package Contents AT-DISP-CTRL Display Controller Installation guide Surface mounting hardware External universal power supply
Application/Usage Meeting
AV System
Environmentally Friendly Yes
Environmental Certification RoHS
Limited Warranty 10 Year
Model Number AT-DISP-CTRL
Brand Atlona
Category Signal Distribution/Connectivity
UPS Shippable Y
Shipping Weight 1
UPC Code 846352006310
