Atlona® AT-HDVS-150-TX-PSK Three-Input Switcher for HDMI and VGA Sources with HDBaseT Output

The Atlona AT-HDVS-150-TX is a 3×1 switcher and HDBaseT transmitter with two HDMI inputs and a VGA input with audio. Video signals up to 1080p, plus embedded audio can be transmitted up to 230 feet (70 meters). The HDVS-150-TX is designed for use with the AT-HDVS-150-RX receiver and HD scaler, and can serve as the central component of a compact, automated AV system with the convenience of automatic input selection and display control. The switcher is remotely powered by the HDVS-150-RX through Power over Ethernet (PoE).

The HDVS-150-TX combines the benefits of auto-switching and integrated display control, and the advantages of HDBaseT signal transmission. It incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces.

Surface mounting brackets are provided with the HDVS-150-TX for easy under-table, furniture, or on-wall installation.

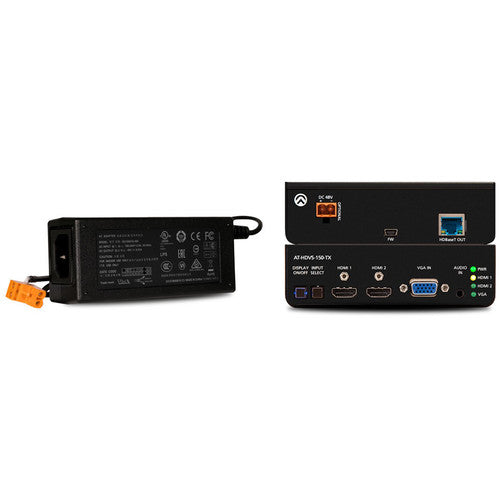

The Atlona AT-HDVS-150-TX-PSK is identical to the AT-HDVS-150-TX, with the addition of local powering capability and an external power supply. This makes it ideal for extending AV and control directly to a projector with an HDBaseT input. The AT-HDVS-150-TX can serve as the central component of a small, automated AV system through automatic input selection, and by sending RS-232 control commands to the display. With automatic display control capability, the AT-HDVS-150-TX can power the display on or off whenever a source is connected or disconnected from the unit.

  • Education environments
  • Corporate environments
Key Features

3×1 HDBaseT switcher

  • Features two HDMI inputs plus a VGA input with audio.
  • Allows advanced HDMI display devices to be used with legacy VGA sources.
Designed for point-to-point extension to the ATHDVS-150-RX HD scaling receiver
    • Extends AV up to 230 feet (70 meters) @ 1080p or 1920×1200.
    • Provides a cost-effective yet compact, automated AV system with the convenience of automatic input selection and display control.

    Long distance HDMI extension

    • Transmits AV up to 230 feet (70 meters) @ 1080p or 130 feet (40 meters) @ 4K/UHD using CAT6a/7 cable
    • Uses easy-to-integrate category cable for low-cost, reliable system installation

    Remotely powered via PoE (Power over Ethernet)

    • EIEEE 802.3af PoE Powered Device (PD).
    • Power for transmitter is supplied by AT-HDVS-150- RX over HDBaseT.

    Automatic input selection using hot plug detection

    • Selects active input when sources are connected or if there is a change in source power status.
    • Enables simplified, automatic system operation with no user intervention necessary.

    Automatic display control (when connected to the HDVS-150-RX)

    • Automatically changes display power state based on active or standby mode of the switcher (in conjunction with the HDVS-150-RX). Control signals to display are transmitted via RS-232.
    • Eliminates the need for a complex control system.

    Front panel input selection and on/off controls

    • Overrides auto-switching when more than one active source is present.
    • Simple manual operation allows presenter to maintain control of AV system.
    Field-updatable firmware
    • Rear panel USB port provides an easy means for device updates.
    • Ensures long-term system return on investment.
    • Switch between sources by using this audio video switchbox without degradation of video quality and eliminate the need to manually switch cables between sources
    • Trouble free connection with computer
    • Connect single display to 3 sources
    • Enjoy watching any class of content on 4096 x 2160 resolution
    • Automatic display control (when connected to the AT-HDVS-150-RX)
    • Automatic input selection
    • Front panel input selection and display on/off control
    Manufacturer Atlona Technologies
    Manufacturer Part Number AT-HDVS-150-TX
    Manufacturer Website Address
    Brand Name Atlona
    Product Model AT-HDVS-150-TX
    Product Name Three-Input Switcher for HDMI and VGA Sources with HDBaseT Output
    Product Type Audio/Video Switchbox
    Connectivity Technology Cable
    Number of Input Devices Supported 3
    Device Supported Display
    Number of Displays Supported 1
    Graphics Modes 4K
    Maximum Video Resolution 4096 x 2160
    HDMI In Yes
    VGA In Yes
    Connectivity (RJ-45) Yes
    Number of Connectivity (RJ-45) Ports 1
    Number of USB Ports 1
    Number of HDMI Inputs 2
    Number of VGA Inputs 1
    Media Type Supported Twisted Pair
    Maximum Operating Distance 229.66 ft
    Country of Origin United Kingdom
    Limited Warranty 10 Year
    Model Number AT-HDVS-150-TX-PSK
    Brand Atlona
    Category Signal Distribution/UTP Extension
    UPS Shippable Y
    Shipping Weight 2
    UPC Code 846352005382
    Country of Origin GB-United Kingdom
