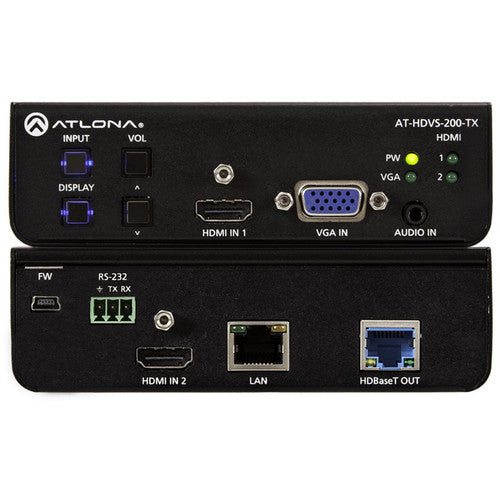

Atlona® AT-HDVS-200-TX Three-Input Switcher for HDMI and VGA over Ethernet Enabled HDBaseT Tx


The AT-HDVS-200-TX is a 3×1 switcher for HDMI and VGA inputs with HDBaseT output. It features two HDMI inputs, a VGA input, and an always on 3.5mm audio connector. The AT-HDVS-200-TX can be the central component of a small, automated AV system. Automatic display control turns on the display automatically whenever a source is connected. When the source is removed, the display is turned off. Volume is controlled by using the front panel buttons. Automatic input selection on the AT-HDVS-200-TX works by sensing the presence of any video signal. With automatic input selection, manual control systems can be eliminated.

The AT-HDVS-200-TX combines the benefits of a switcher and the advantages of Ethernet-enabled HDBaseT signal transmission over a single cable. The switcher enables input selection from the front panel, RS-232, or TCP/IP commands. HDMI signals up to 4K/UHD @ 60Hz with embedded audio, VGA input signals up to 1920×1200, and control signals can be extended up to 328 feet (100 meters).

When used with the HDVS-200-RX system performance is limited to 1080p. The AT-HDVS-200-TX receives power from the AT-HDVS-200-RX scaler via Power over Ethernet. Together they create a standalone AV switching and control system with scaling for classrooms and huddle rooms.

Automatic Display Control

Offering first-of-its-kind display capabilities, the AT-HDVS-200-TX allows display control using CEC, TCP/IP or RS-232 signals. This means that many more types of displays can be controlled, costs are reduced, and that wiring is simplified. In a commercial setting, when a switcher is integrated with a display, the AT-HDVS-200-TX forces the display to power on automatically when a laptop is connected. At the end of the presentation, when the presenter disconnects the laptop, the AT-HDVS-200-TX forces the display to power off. Ease of presenter interaction with the system and the savings incurred by auto-display shutdown provide a significant return on investment.

  • Switch between sources by using this audio video switchbox without degradation of video quality and eliminate the need to manually switch cables between sources
  • A great solution for connecting display
  • Connect single display to 3 sources
  • 4096 x 2160 resolution for high-quality video delivery
  • Selects active input when sources are connected
  • Eliminates need for complex control system in AV systems
  • Flexible control options for compatibility with third-party control systems. RS-232 controlled from HDBaseT connection
  • Reduces integration time and costs
  • Transmits IP and AV signals up to 328 ft. (100m)
  • Uses easy-to-integrate category cable for low-cost, reliable system installation
  • Simple manual control allows presenter to maintain control of AV system
  • Remotely controls display power state; provides alternate ‘Display Mute’ mode
  • Eliminates need for manual operation of display or use of IR remote control
  • Remotely controls audio volume using TCP/IP or RS-232; provides ‘Mute’ mode
  • Eliminates need for manual operation of display or use of IR remote control
  • This IP-controllable product can be remotely managed by the Atlona Management System software
  • Integrates product configuration, management, and updates to reduce installation time and enable remote support
Manufacturer Atlona Technologies
Manufacturer Part Number AT-HDVS-200-TX
Manufacturer Website Address
Brand Name Atlona
Product Model AT-HDVS-200-TX
Product Name Switcher for HDMI and VGA Inputs with HDBaseT Output
Product Type Audio/Video Switchbox
Full Product Specifications Click to view
Connectivity Technology Cable
Number of Input Devices Supported 3
Device Supported Speaker
Number of Displays Supported 1
Graphics Modes 4K
Maximum Video Resolution 4096 x 2160
VGA In Yes
Connectivity (RJ-45) Yes
Number of Connectivity (RJ-45) Ports 2
Number of USB Ports 1
Number of HDMI Inputs 2
Number of VGA Inputs 1
Maximum Operating Distance 328.08 ft
Package Contents Switcher for HDMI and VGA Inputs with HDBaseT Output User Guide Mounting Brackets
Limited Warranty 10 Year
Model Number AT-HDVS-200-TX
Brand Atlona
Category Signal Distribution/UTP Extension
UPS Shippable Y
Shipping Weight 1.2
UPC Code 846352004637
Country of Origin US-United States
