Atlona® AT-OME-MS42 Omega 4x2 4K/UHD multiformat matrix switcher, with HDMI, USB-C, Display


Ready for Zoom, Skype for Business, Microsoft Teams, Cisco Webex, BlueJeans, GoToMeeting, and more.

Enhance collaboration and productivity with your preferred UC platform.

Universal AV format compatibility.

Whether HDMI, DisplayPort, or USB-C the OME-MS42 has you covered.

Hands-free, zero UI operation.

Connect and forget - the OME-MS42 takes care of the rest.

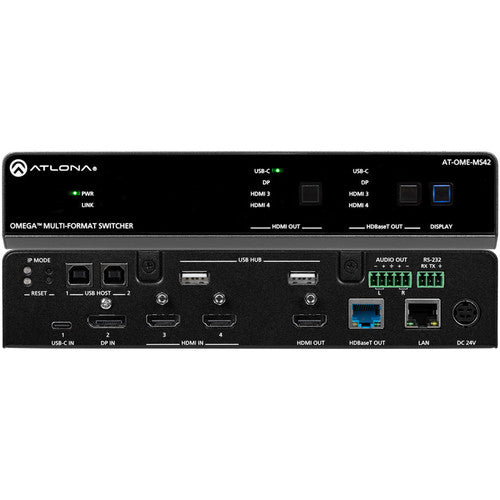

The Atlona AT-OME-MS42 is a versatile 4×2 matrix switcher and HDBaseT transmitter with HDMI, DisplayPort, and USB-C inputs, and mirrored HDMI and HDBaseT outputs. It's perfect for video conferencing applications with built-in USB interfacing and extension to a display.

Local and long distance outputs

Two outputs are included, one for a local HDMI display, and the other for extending video over HDBaseT up to 330 feet (100 meters) to a remote location. The outputs can be matrixed or mirrored.

Flexible HDBaseT receiver options

Choose the OME-EX-RX (part of the OME-MS42-KIT) with USB peripheral connectivity, or the OME-SR21 with USB hub, 4K up/downscaling, contact closure control, and more.

Remote or local powering available

The OME-MS42 can be remotely powered by the receiver, allowing easy installation below a meeting table. For standalone operation (and USB-C device charging), use the included power supply.

Integrated 4K to 1080p downconversion

The OME-MS42 supports 4K/60 4:2:0 via HDBaseT and 4K/60 4:4:4 over local I/O ports. 4K to 1080p downscaling is available over the HDMI output for an HD display or video conferencing codec.

  • Connectivity Technology: Cable
  • HDMI In: Yes
  • HDMI Out: Yes
  • DisplayPort: Yes
  • Connectivity (RJ-45): Yes
  • Number of Connectivity (RJ-45) Ports: 2
  • Number of USB Ports: 5
  • Number of HDMI Inputs: 2
  • Number of HDMI Outputs: 1
  • Number of DisplayPort Inputs: 1
  • Media Type Supported: Twisted Pair
  • Height: 1.7"
  • Width: 8.6"
  • Depth: 10"
  • Weight (Approximate): 3.46 lb
Manufacturer Atlona Technologies
Manufacturer Part Number AT-OME-MS42
Manufacturer Website Address
Brand Name Atlona
Product Model AT-OME-MS42
Product Name Atlona AT-OME-MS42 Video SwitchBox
Product Type Video Switchbox
Connectivity Technology Cable
HDMI Out Yes
DisplayPort Yes
Connectivity (RJ-45) Yes
Number of Connectivity (RJ-45) Ports 2
Number of USB Ports 5
Number of HDMI Inputs 2
Number of HDMI Outputs 1
Number of DisplayPort Inputs 1
Media Type Supported Twisted Pair
Model Number AT-OME-MS42
Brand Atlona
Category Signal Distribution/Switchers/Matrix Switchers
UPS Shippable Y
Shipping Weight 0.1
UPC Code 846352006143
