Atlona® AT-OME-MS52W Omega 5x2 4K/UHD multiformat matrix switcher, with wireless casting, HDM


Simple Wireless BYOD and Video Conferencing.

Native wireless AV casting - no app required.

Present content from your mobile device with confidence.

Ready for Zoom, Skype for Business, Microsoft Teams, Cisco Webex, BlueJeans, GoToMeeting, and more.

Enhance collaboration and productivity with your preferred UC platform.

Moderate between multiple presenters.

Manage up to 16 wirelessly connected devices at one time.

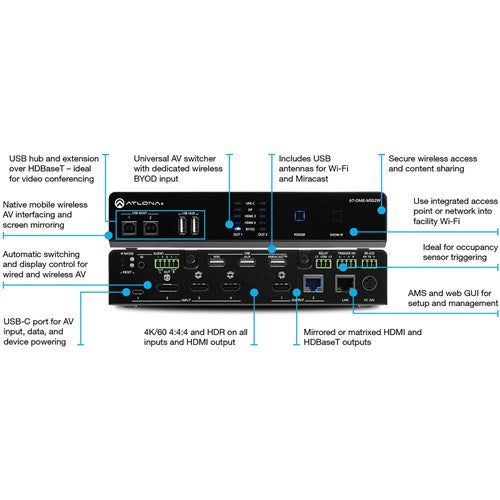

Additional Features

The OME-MS52W is a wireless AV gateway and much more. It delivers complete yet simplified AV system integration for collaborative meeting spaces, with all the convenience and automation features that distinguish Atlona products among AV integrators.

Room control and triggering capability

Use the OME-MS52W to trigger a motorized screen, projector lift, or other room-related function. You can easily tie in this triggering with occupancy sensing, a button module, or into a control system such as Atlona Velocity.

Universal AV inputs - USB-C, HDMI, DisplayPort

The OME-MS52W in unique in that it switches between wireless casting and four wired AV inputs. It's also equipped with the inputs found in all laptops today, including USB-C - and you can charge through this same port!

Flexible network deployment options

You can cast directly to the OME-MS52W via its own Wireless Access Point for Wi-Fi. Or, for security reasons, you can disable it and bridge via Ethernet into the facility LAN. For detailed information, see the FAQs below or refer to this document.

Matrix switching with local and long-distance outputs

The OME-MS52W features matrix switching to two video outputs. One lets you make an HDMI connection to a display, while the other is for extending video over HDBaseT up to 330 feet (100 meters) - so you can install the OME-MS52W wherever needed.

Custom welcome screen

Greet incoming presenters with a customizable welcome screen that displays instructions on making a device connection, including wireless access codes. You can use preloaded or your own background images, and display a single image or rotate through several as a slideshow.

Network security features

The OME-MS52W is equipped with a host of network security features specifically to prevent unauthorized access. Among them is IEEE 802.1x for Wi-Fi and Ethernet, for enterprises and other organizations requiring all devices with secure authentication to access their networks.

  • Use this audio video switchbox and eliminate the need to manually switch cables between sources
  • Trouble free connection with display
  • Up to 4096 x 2160 video resolution
  • HDBaseTTM and HDMI outputs with selectable AV switching modes
  • USB 2.0 interfacing and extension up to 330 feet (100 meters)
  • 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling on local ports (HDMI, DisplayPort, and USB-C)
Manufacturer Atlona Technologies
Manufacturer Part Number AT-OME-MS52W
Manufacturer Website Address
Brand Name Atlona
Product Line Omega
Product Model AT-OME-MS52W
Product Name 5×2 Matrix Switcher with USB and Wireless Link
Product Type Audio/Video Switchbox
Connectivity Technology Cable
Number of Input Devices Supported 5
Device Supported Display
Number of Displays Supported 2
Graphics Modes 4K
Maximum Video Resolution 4096 x 2160
HDMI Out Yes
DisplayPort Yes
Connectivity (RJ-45) Yes
Number of Connectivity (RJ-45) Ports 2
Number of USB Ports 8
Number of HDMI Inputs 2
Number of HDMI Outputs 1
Number of DisplayPort Inputs 1
Media Type Supported Twisted Pair
Maximum Operating Distance 328.08 ft
Model Number AT-OME-MS52W
Brand Atlona
Category Signal Distribution/Switchers/Matrix Switchers
UPS Shippable Y
Shipping Weight 6.6
UPC Code 846352006136
