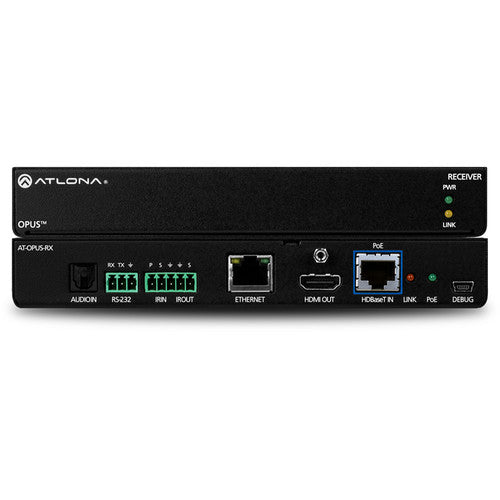

Atlona® AT-OPUS-RX Ultra High Data Rate Extender Receiver w/IR, RS232, Ethernet

The Atlona AT-OPUS-RX is an HDBaseT receiver for high dynamic range (HDR) formats, designed for use with the Opus™ Series of HDMI to HDBaseT matrix switchers. The OPUS-RX is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. It receives HDMI, Ethernet pass-through, and bidirectional IR and RS-232 control signals up to 330 feet (100 meters) over CAT6a/7 cable. Visually lossless VESA Display Stream Compression (DSC) enables HDR and 4K/60 4:4:4 video signal extension over HDBaseT with no latency. For additional integration convenience, the receiver is remotely powered by an Opus Series matrix switcher through Power over Ethernet (PoE). The OPUS-RX can transmit digital audio from a television back to an AV receiver through a dedicated HDBaseT audio return path to the matrix switcher.

Residential installations
  • An Opus system of matrix switchers and OPUS-RX receivers is ideal as the AV distribution centerpiece for whole-house video and audio.
Commercial applications
  • Opus systems are also ideal for a variety of light commercial, education, and corporate applications requiring compatibility with new and forthcoming devices for 4K presentations.

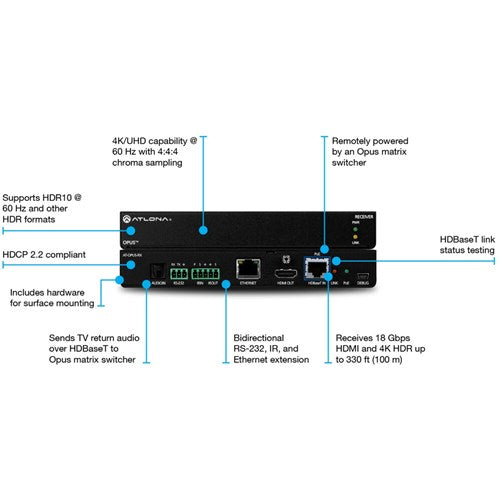

Key Features
4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
  • Ideal for with new and emerging 4K/UHD and HDR-capable sources and displays. Supports HDR10 @ 60 Hz and Dolby Vision @ 30 Hz, as well as HLG.
  • Fully supports video resolutions, audio formats, and color space formats in the HDMI 2.0b specification.
HDCP 2.2 compliant
  • Adheres to latest specification for High-bandwidth Digital Content Protection.
  • Allows protected content stream to pass between authenticated devices.
HDBaseT receiver for HDMI, Ethernet, power, and control up to 330 feet (100 meters)
  • Receives HDMI up to 330 feet (100 meters) @ 4K HDR using CAT6a/7 cable.
  • Uses easy-to-integrate category cable for low-cost, reliable system installation.
Remotely powered by Opus matrix switcher via PoE (Power over Ethernet)
  • Power for receiver is supplied by an Opus Series matrix switcher over HDBaseT.
  • Allows convenient receiver installation at a display or projector without the need for local AC power.
Extends RS-232, IR, and Ethernet control signals over HDBaseT
  • Bidirectional extension of RS-232, IR, and Ethernet control signals.
  • Streamlines integration of control for displays.
Visually lossless VESA Display Stream Compression
  • Enables HDBaseT transmission of HDMI up to 18 Gbps using extremely light video compression.
  • Innovative signal extension solution delivers very high, pristine image quality.
Delivers return audio from a TV via dedicated HDBaseT audio return path
  • Provides a return audio pathway from a television, via TOSLINK digital audio interface, back to the Opus matrix switcher over HDBaseT.
  • Easy and convenient integration of television audio for over-the-air broadcasts, OTT (over-the-top) media services, and more.
Integrated HDBaseT link status monitoring
  • Continuously monitors integrity of the HDBaseT cable link between the Opus matrix switcher and receiver. Web GUI provides real-time link status, plus detailed HDBaseT and HDMI signal information.
  • Quick, easy verification or troubleshooting of RJ-45 termination or twisted pair cable quality.
  • Connectivity Technology: Wired
  • Number of Output Devices Supported: 1
  • Maximum Operating Distance: 328.08 ft
  • Graphics Modes: 4K
  • Maximum Video Resolution: 4096 x 2160
  • Network (RJ-45): Yes
  • HDMI Out: Yes
  • USB: Yes
  • Serial Port: Yes
  • Number of Network (RJ-45) Ports: 2
  • Number of USB Ports: 1
  • Number of HDMI Outputs: 1
  • Media Type Supported: Twisted Pair
  • Twisted Pair Cable Standard: Category 7
  • Receiver Height: 1.02"
  • Receiver Width: 6.86"
  • Receiver Depth: 3.51"
  • Form Factor: Rack-mountable
  • Form Factor: Surface-mountable
Manufacturer Atlona Technologies
Manufacturer Part Number AT-OPUS-RX
Manufacturer Website Address
Brand Name Atlona
Product Model OPUS-RX
Product Name 4K HDR HDMI Over 100 M HDBaseT RX for Opus Series Matrix Switchers
Product Type Video Extender Receiver
Connectivity Technology Wired
Number of Output Devices Supported 1
Maximum Operating Distance 328.08 ft
Graphics Modes 4K
Maximum Video Resolution 4096 x 2160
Network (RJ-45) Yes
HDMI Out Yes
Serial Port Yes
Number of Network (RJ-45) Ports 2
Number of USB Ports 1
Number of HDMI Outputs 1
Media Type Supported Twisted Pair
Twisted Pair Cable Standard Category 7
Receiver Height 1.02"
Receiver Width 6.86"
Receiver Depth 3.51"
Form Factor Rack-mountable
Receiver Weight (Approximate) 15.84 oz
Package Contents 4K HDR HDMI Over 100 M HDBaseT RX for Opus Series Matrix Switchers Installation Guide Surface Mounting Hardware IR Emitter
Limited Warranty 10 Year
Model Number AT-OPUS-RX
Brand Atlona
Category Signal Distribution/UTP Extension
UPS Shippable Y
Shipping Weight 1
UPC Code 846352005085
