Atlona®AT-UHD-EX-100CE-TX 4K/UHD HDMI over HDBaseT Transmitter - Ethernet, Control, & PoE

4K/UHD HDMI Over 100M HDBaseT with Ethernet, Control and PoE

The Atlona AT-UHD-EX-100CE-TX is an HDBaseT™ transmitter for HDMI transmission up to 328 feet (100 meters) over category cable with Ethernet pass through, plus RS-232 and IR control. Designed to work with HDBaseT inputs on switchers and projectors, this extender transmits video signals up to 4K/UHD @ 60Hz with embedded multi-channel audio. Additionally, the transmitter extends Ethernet, RS-232, and 12 volt-based IR control commands. The AT-UHD-EX-100CE-TX is HDCP 2.2 compliant and supports EDID communication. The transmitter features a quarter rack width metal enclosure for easy rack mounting with rear panel I/O ports for uncluttered wire management. This PSE (Power Sourcing Equipment) device is externally powered, includes a desktop power supply and provides Power over Ethernet for compatible receiving devices. The AT-UHD-EX-100CE-TX is certified by the HDBaseT Alliance.

Ethernet-Enabled HDBaseT Transmitter for Projectors

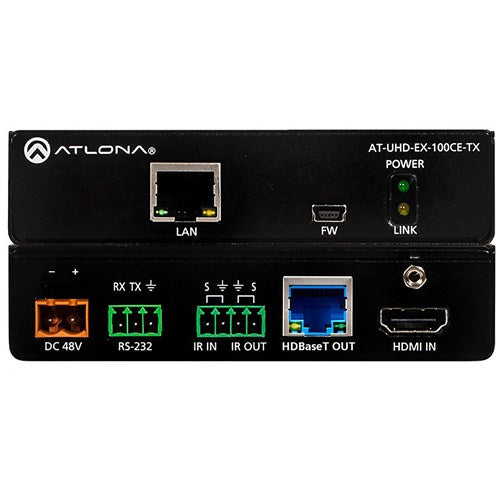

This HDBaseT Class A transmitter is designed to support the growing number of displays and video projectors in the commercial market with HDBaseT inputs. The AT-UHD-EX-100CE-TX provides extended distance, transmission of uncompressed, 4K/UHD HDMI signals from switchers and matrixes. Other applications include remote input signal transmission for the AT-UHD-CLSO-824 matrix switcher. Built-in Ethernet and bi-directional control signal extension eliminates the need for additional cabling from switcher to the display or remote input device. Installer-friendly features include: a rack-mountable form factor that allows four transmitters to share a single, 1U rack tray; power chaining to allow multiple sets to be powered from one power supply; and a front mounted USB port for easy firmware updates.

The AT-UHD-EX-100CE-TX is ideal for use in commercial point to point applications that require extended distance HDMI signal transmission to HDBaseT-equipped displays. The transmitter can be used with any 4K/UHD switcher, matrix switcher, or distribution amplifier. Multiple points of control allow the transmitter to work with a variety of third-party control systems to cost-effectively extend control signals within a system.

Configured and Managed by AMS

The AT-UHD-EX-100CE-TX also supports the Atlona Management System (AMS), a powerful network software platform that integrates product configuration, management and updating. Specially designed for IP-controllable Atlona Products, the Atlona Management System reduces installation time and enables remote monitoring and support. To learn more please visit AT-SW-AMS.

  • Compatible with Ultra High Definition sources and displays
  • Full support of 4K/UHD streaming services and playback devices
  • Adheres to latest specification for High-bandwidth Digital Content Protection
  • Allows protected content stream to pass between devices
  • Uses external power supply (included)
  • Eliminates the need for remote power or power-injection devices
  • Delivers 4K/UHD video, audio, 100Base-T Ethernet, power, and control through a single cable
  • Eliminates multiple cable runs between source, control system, router, and display
  • Transmits HDMI signals up to 328 ft (100m) @ 1080P and 328 ft (100m) @ 4K/UHD using CAT6a/7 cable
  • Uses easy to integrate category cable for low-cost, reliable system installation
Manufacturer Atlona Technologies
Manufacturer Part Number AT-UHD-EX-100CE-TX
Manufacturer Website Address
Brand Name Atlona
Product Model AT-UHD-EX-100CE-TX
Product Name 4K/UHD HDMI Over 100M HDBaseT Transmitter with Ethernet, Control and PoE
Product Type Video Extender
Connectivity Technology Wired
Number of Input Devices Supported 1
Maximum Operating Distance 328.08 ft
Graphics Modes 4K
Maximum Video Resolution 4096 x 2160
Network (RJ-45) Yes
Serial Port Yes
Number of Network (RJ-45) Ports 2
Number of USB Ports 1
Number of HDMI Inputs 1
Media Type Supported Twisted Pair
Twisted Pair Cable Standard Category 7
Package Contents 4K/UHD HDMI Over 100M HDBaseT Transmitter with Ethernet, Control and PoE User Guide Desktop Power Supply for Transmitter Detachable Power Cable IR Emitter P/N AT-IR-CS-TX Mounting Brackets
Environmentally Friendly Yes
Environmental Certification RoHS
Limited Warranty 10 Year
Model Number AT-UHD-EX-100CE-TX
Brand Atlona
Category Signal Distribution/UTP Extension
UPS Shippable Y
Shipping Weight 2.2
UPC Code 846352004422
Country of Origin US-United States
Product Dimensions English With Ears: 3.50 x 4.69 x 1.06
