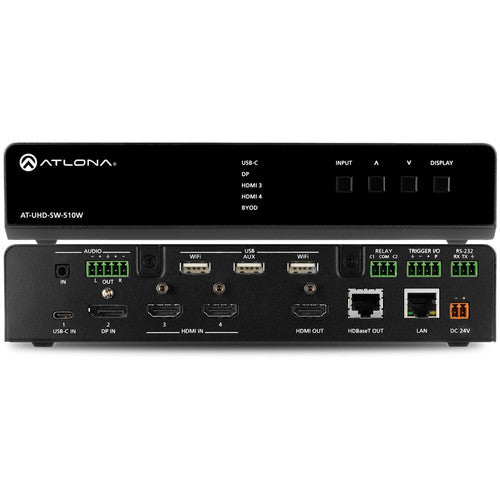

Atlona®AT-UHD-SW-510W Five-Input Universal Switcher with Wireless Presentation Link

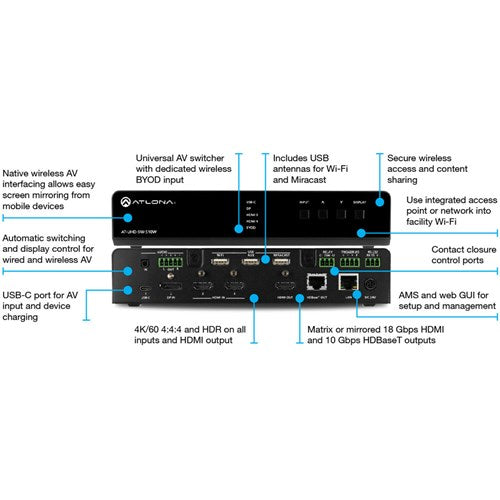

The AtlonaAT-UHD-SW-510Wis a 5×2, multi-format matrix switcher with wireless presentation capability. It provides universal BYOD (bring your own device) compatibility with HDMI, DisplayPort, and USB-C inputs, plus wireless connectivity for mobile devices. The SW-510W is HDCP 2.2 compliant, and features matrixed or mirrored HDMI and HDBaseT outputs. The HDBaseT output is ideal for use with the Atlona AT-UHD-EX-100CE-RX-PSE HDBaseT receiver, or the AT-HDVS-SC-RX scaling HDBaseT receiver. It also includes automatic input switching and automatic display control capability, both applicable to wired and wireless source connections. This unique multi-format matrix switcher and wireless gateway provides a universal connectivity solution for presentation devices in a wide range of professional AV applications.


Meeting spaces

The SW-510W provides the flexibility to accept any presenter device, whether wired or wireless. This capability is ideal for a wide range of meeting environments, from a huddle room to a large presentation space in a convention center.

Classrooms and auditoriums

A credenza or lectern-based AV system for resident sources, plus wireless connectivity for a participant's laptop or tablet.

Small to medium-sized meeting spaces

The SW-510W is compact and ideal for under-table mounting. It conveniently provides automatic switching and display control for simplified user operation, especially with laptops and mobile devices brought into the system.

Conference rooms and boardrooms

The SW-510W features two matrixed outputs for seamless integration into a display and a hardware-based video conferencing system, with additional versatility by enabling wireless AV content presentations to the far end.
The matrix switching capability provides the convenience of auto-switching for local BYOD content that feeds into the codec, while simultaneously allowing far-end content to be shared.

Presentation spaces where two displays are needed

This switcher can be installed in a lectern to serve a confidence monitor, plus the primary display in a remote location. With matrixed outputs, the SW-510W also can support two simultaneous presenters on two screens.

  • Quickly switches both video and audio between sources without physical access
  • Trouble free connection with display
  • Enjoy watching any class of content on 4096 x 2160 resolution
  • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling, plus support for 4K/60 4:4:4 and HDR formats on local ports (HDMI, USB-C, and DisplayPort)
  • HDCP 2.2 compliant
  • Automatic input selection and automatic display control
  • USB-C port supports device charging for laptops, tablets, and smartphones
Manufacturer Atlona Technologies
Manufacturer Part Number AT-UHD-SW-510W
Manufacturer Website Address
Brand Name Atlona
Product Series SW
Product Model SW-510W
Product Name 4K/UHD Five-Input Universal Matrix Switcher
Product Type Audio/Video Switchbox
Connectivity Technology Cable
Number of Input Devices Supported 5
Device Supported Display
Number of Displays Supported 2
Graphics Modes 4K
Maximum Video Resolution 4096 x 2160
HDMI Out Yes
DisplayPort Yes
Connectivity (RJ-45) Yes
Number of Connectivity (RJ-45) Ports 2
Number of USB Ports 4
Number of HDMI Inputs 2
Number of HDMI Outputs 1
Number of DisplayPort Inputs 1
Media Type Supported Twisted Pair
Maximum Operating Distance 330 ft
Form Factor Rack-mountable
Package Contents 4K/UHD Five-Input Universal Matrix Switcher User Guide 2 x USB Wi-Fi Adapters/Antennas Surface Mounting Brackets 2 Meter (6.5 Foot) USB-C Male-to-Male Cable (USB 3.1 Gen 1) External Universal Power Supply
Limited Warranty 10 Year
Model Number AT-UHD-SW-510W
Brand Atlona
Category Signal Distribution/Switchers/Matrix Switchers
UPS Shippable Y
Shipping Weight 6.6
UPC Code 846352005146
