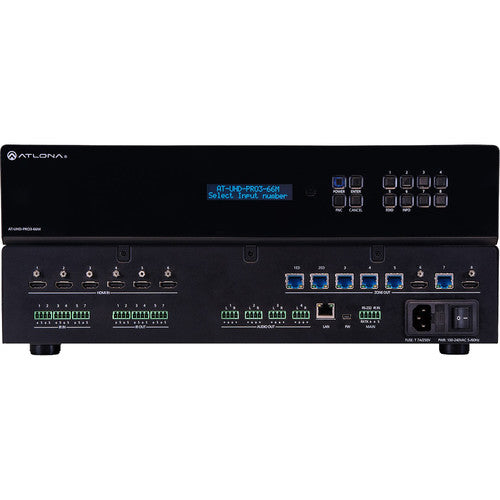

Atlona® AT-UHD-PRO3-66M 4K/UHD Dual-Distance 6x6 HDMI to HDBaseT Matrix Switcher with PoE

Atlona® AT-UHD-PRO3-66M 4K/UHD Dual-Distance 6x6 HDMI to HDBaseT Matrix Switcher with PoE

$5,500.00

This Atlona 6x6 is a 2RU dual-distance HDBaseT matrix switcher supporting DCI 4K and Ultra HD 4K resolutions at 60 Hz (4096 x 2160 and 3840 x 2160). It's designed for multi-zone residential or commercial distribution applications and features 6 HDMI inputs and 6 HDBaseT outputs, as well two HDMI mirrored outputs. Route up to 328 over 2 HDBaseT outputs, and up to 230 ft over the other four, along with bidirectional RS-232 and IR control in both cases. The two HDMI mirrored outputs are designed for carrying HDMI-based audio to an AVR or as additional matrix outputs. Power over Ethernet capability is available for optional receivers.

This matrix switcher is HDCP 2.2 compliant and supports EDID communication. The matrix is control-system-friendly and integrates with any TCP/IP, RS-232, or IR based control signals. Incorporate the optional AT-IR-CS-TX IR emitter cable for AV system control.

8 HDBaseT Outputs

  • 2 328 ft outputs and 4 230 ft outputs

Compatible Receivers

  • AT-UHD-EX-100CE-RX (328 ft)
  • AT-UHD-EX-70C-RX (230 ft)

2 HDMI Outputs

  • Independently selectable mirror and matrix modes
  • Switchable HDMI outputs can mirror any HDBaseT output for routing HDMI based audio signals to AVRs; in matrix mode, HDMI outputs can become additional matrix outputs
  • Provides output flexibility to facilitate a variety of output needs and destinations

PoE for Remote Powered Receivers

  • Industry standard IEEE 802.3af PoE supplied by the matrix over HDBaseT
  • No local AC outlet required; saves time and integration costs

Audio De-Embedding with Volume, Mute, and 5-Band EQ

  • Stereo, line level audio breakout with volume, mute, and 5-band EQ on captive screw connectors for the long-distance output zones
  • HDMI audio de-embedding with analog stereo and HDMI outputs, with or without a video display connection
  • Provides audio signal routing to sound system

TCP/IP, RS-232, and IR control

  • Flexible control options compatible with 3rd-party control systems
  • Reduces integration time and costs

Easy, GUI-Based Configuration using Integrated Web Server

  • Offers status reporting of EDID, HDCP, and I/O routing; offers control of volume, mute, and 5-band EQ for analog outputs plus I/O labeling
  • Allows fast configuration of internal product settings and troubleshooting from a tablet, smart phone, or PC in the field

EDID Management

  • Manages EDID communications between source and switcher; allows integrators to force a source to transmit preferred video resolution and audio format
  • Ensures desired audio formats and video resolutions are provided to the AV system; eliminates the need for EDID management device

Multi-Channel Audio Compliant

  • Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, and DTS-HD Master Audio
  • Allows any multi-channel audio stream to be used within a professional audio system

Support for 192 kHz/24-Bit Digital Audio

  • Enables high-resolution digital audio content to pass-through the matrix switcher
  • Provides compatibility with all high resolution, HDMI-based audio signals

Independent Audio Control for De-Embedded Outputs

  • Independent volume control, mute, and 5-band EQ for each de-embedded audio output
  • Provides easier integration with zone control systems and for multi-channel amps without DSP functionality on board
  • Eliminates external processing and higher costs associated with this functionality

Quiet, Active Cooling

  • Temperature-based fans maintain low internal temperature while never allowing fan noise to rise above -20 dBSPL at 3.3 ft (1 m)
  • Eliminates noise objections when matrix switcher is used within the meeting or entertainment space

Other Features

  • 19" rack-mountable 2U, full rack width enclosure
  • Internal, international power supply
