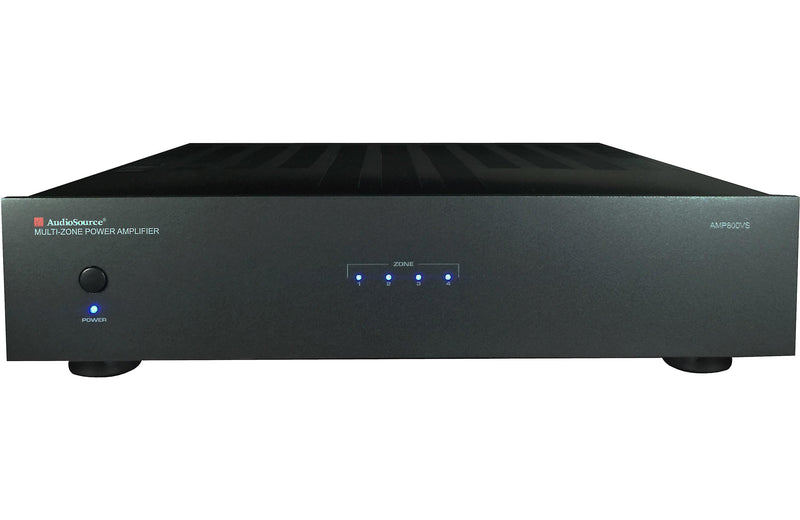

Drive your multi-room system

AudioSource's AMP800VS gives you options for powering your whole-house audio system. It's perfect for music in the bedrooms, the kitchen, and the dining room — all at the same time. It's flexible, too. Play the same source through all four zones, or play a different source in each of your rooms.

Great for indoor and outdoor speakers

Power up to four pairs of speakers simultaneously for music indoors or out. The '800VS delivers 40 watts per channel at both four and eight ohms. Need more power to drive your patio or floor-standing speakers? Bridge two channels together and get a robust 80 watts per channel at eight ohms.

Versatile inputs and outputs

Each zone also has a dedicated pair of RCA inputs to play a connected source through a single zone. Want to expand your multi-room system? Use the RCA outputs to daisy-chain two amplifiers together and play the same source through both.

Multiple power-on options

Use the front-panel power button to toggle the '800VS on and off. It can also turn on automatically when it detects a source. 12-volt trigger compatibility makes for flexible system configuration. It lets the amp turn on when another piece of equipment is fired up.

Product highlights:

  • 40 watts per channel into 8 ohms (20-20,000 Hz) at 0.2% THD with all channels driven
  • 80 watts x 4 into 8 ohms bridged
  • 8-channel amplifier with 4 independent playback zones
  • play the same source through all 4 zones, or play a different source in each zone
  • high-efficiency switching amplifier design
  • extensive internal circuitry protects against overheating
  • detachable speaker connectors
  • rear-mounted independent gain controls for each channel
  • Bus 1 and Bus 2 RCA inputs can be assigned to any channel so that different sources are available for each zone
    • each pair of bus inputs has a corresponding RCA output that can be daisy-chained to another amplifier
  • discrete pair of RCA inputs for each zone
  • flexible power modes include on/off, signal-sensing, and 12-volt trigger

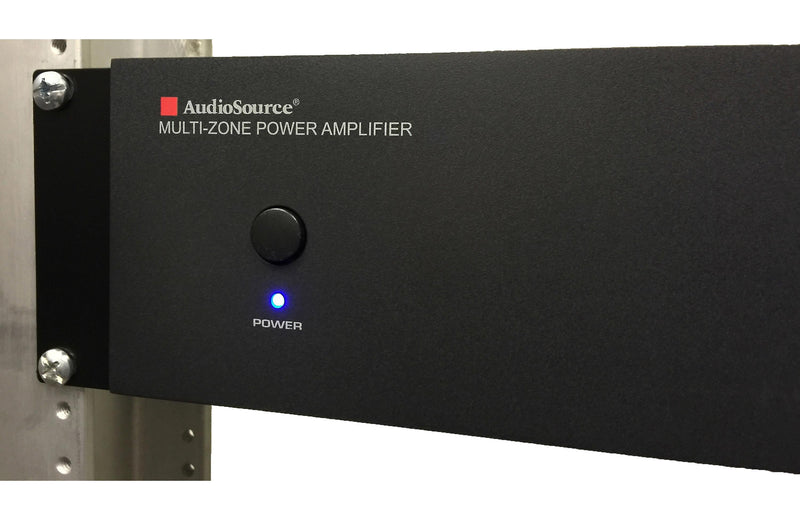

  • rack-mountable with included hardware
  • frequency response: 10-50,000 Hz (+0 dB, -3 dB)
  • signal-to-noise ratio: 100 dB
  • 16-1/2"W x 4"H x 14-1/4"D
  • weight: 27 lbs.
  • warranty: 2 years
