Audix AP41 Performance Series Single-Channel Bodypack Wireless System (522 to 554 MHz)


Audix AP41 BP Overview

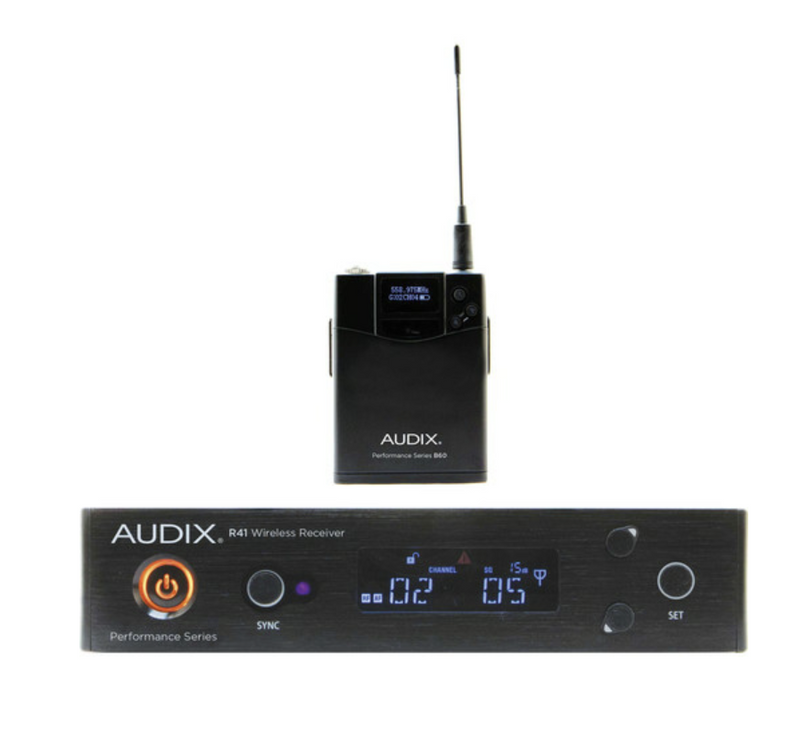

The AP41 Performance Series Bodypack Wireless System from Audix includes the R41 1-channel diversity receiver and B60 bodypack transmitter. The R41 diversity receiver operates on a wide-spectrum frequency range of 522 to 554 MHz and offers one-touch auto scan searches for clear channel. Thanks to the one-touch sync function, this receiver easily links to the B60 bodypack transmitter placed within 300'.

The bodypack transmitter can be used with any lavalier, headworn, or instrument microphone in the Audix line, as well as electric guitar and bass. Enclosed in a metal housing with modular antenna design, this transmitter comes with AF and RF gain controls and a soft mute switch which also serves as an on/off switch when needed. This bodypack also features a high-contrast LCD display with group, channel, and battery indicator.

Audix R41 Kit-A Performance Series Single-Channel UHF Diversity Receiver (A: 522 to 554 MHz)

The Audix R41 Kit-A is a Performance Series single-channel UHF diversity receiver designed to deliver enhanced range and easy configuration for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 106 pre-coordinated frequencies across 32 MHz of bandwidth in the 522 to 554 MHz frequency band. Use one wireless microphone (available separately) from up to 300' away. One-touch sync and auto scan functions provide simple and efficient setup.

The high-contrast LCD shows a host of information such as battery level, frequency, and AF/RF signal strength, which can be optimized via adjustable AF and RF gain. XLR and 1/4" outputs allow compatible connectivity with the balanced or unbalanced inputs on your mixing console. The R41 Kit-A ships with two antennas, a carrying case, an audio cable, one power supply, and a rackmount kit.

  • Incorporate up to 16 systems to use 16 unique channels simultaneously
  • Single-channel receiver supports one wireless microphone
  • 32 MHz wide spectrum tuning
  • 106 pre-coordinated frequencies
  • High-contrast LCD shows RF and AF signal strength, group/channel/frequency, level/squelch, battery level, and more
  • One-touch sync via infrared
  • One-touch scan eliminates inefficient manual tuning
  • Ground-lift switch helps eliminate ground loops or hum
  • Metal strain relief for power cable
  • Adjustable AF and RF level
  • Selectable lock function prevents the transmitter from being accidentally muted or powered off
UPC: 687471861028
Audix B60 Performance Series Bodypack Transmitter (522 to 586 MHz)

The Audix B60 is a Performance Series bodypack transmitter designed to deliver simple configuration and reliable wireless signal transmission for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers.

The high-contrast LCD and three function buttons provide easy access to settings such as AF gain, 10/30 mW RF output power, and lock. Two supplied AA batteries power the B60 for up to 14 hours. The rugged metal housing features a belt clip for secure attachment to the performer and a soft mute button for quick on/off switching. A mini-XLR 3-pin input enables proper connectivity for a guitar, bass, lavalier mic, headset, or instrument microphone. The modular antenna design allows for compact storage and field serviceability.

  • 64 MHz bandwidth from 522 to 586 MHz covers A and B frequency groups
  • Mini-XLR 3-pin connector for compatibility with a variety of microphones or guitar cables
  • Durable tour-worthy metal housing
  • High-contrast LCD shows group, channel, frequency, mic/line level, and battery status
  • Convenient top-panel soft mute button for quick on/off switching
  • Two supplied AA batteries provide up to 14 hours of run time
  • Selectable 10/30 mW RF power output
  • Choose mic or line level
  • Four selectable gain settings—0 dB, -6 dB, -12 dB, and -24 dB
  • Lock function deactivates the power button, RF output control, and level adjustment
