Name: Autel Robotics 102001823 EVO Max 4T Industrial Drone
Brand: Autel
Price: 8999.0 USD
Availability: InStock

$8,999.00

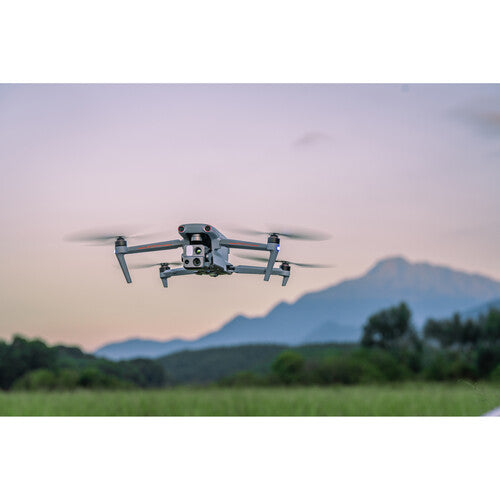

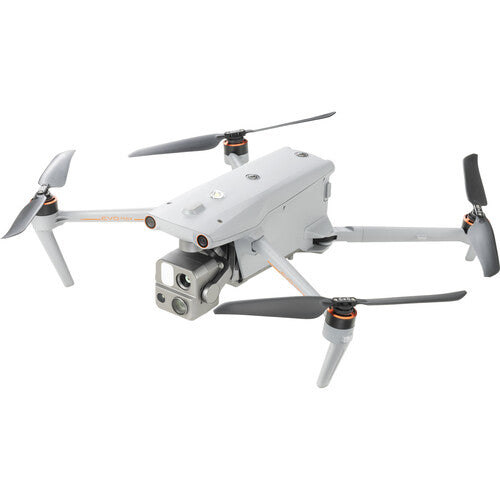

For critical industrial and first responder missions, the EVO Max 4T Industrial Drone from Autel is an ideal tool, providing a robust set of technologies for efficient handling of a wide variety of scenarios. The primary payload offers an 8K zoom, 4K low-light wide-angle, and thermal camera, along with a laser rangefinder. Together they make quick work of inspections, search and rescue, security overwatch, land surveying, and many other operations.

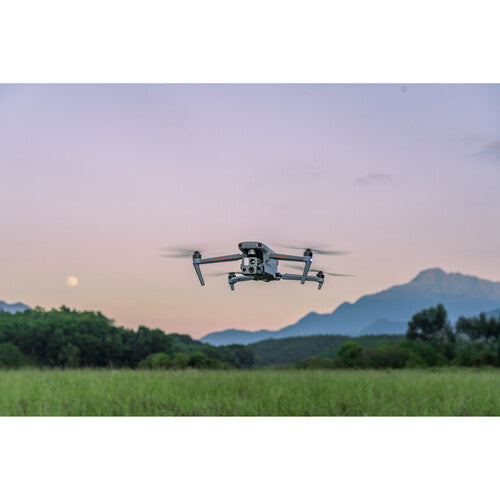

The drone itself can get to locations and perform tasks quickly, even in adverse conditions. Flown by a pilot with the included Smart Controller V3, or allowing the EVO Max 4T to take advantage of a host of advanced navigation and obstacle avoid technologies to fly semi or fully autonomously; alone or together as a fleet or swarm of drones.

Eliminate Blind Spots

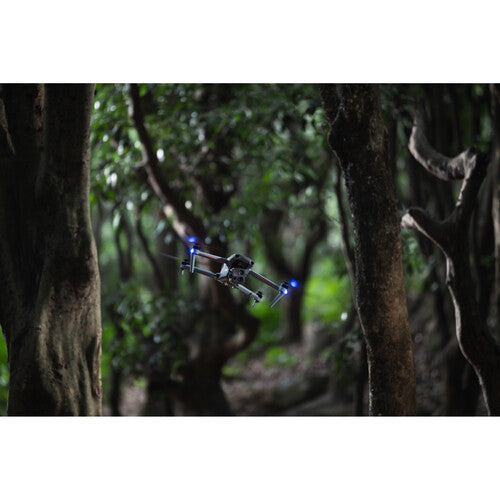

With eight different cameras and 720° of coverage, the EVO Max 4T effectively eliminates blind spots when it comes to obstacle avoidance during flight. A combination of a binocular vision system and millimeter wave radar is used by the onboard Autel Autonomy Engine to perceive objects down to 0.5" in size and facilitate autonomous path finding, even in low-light and rainy conditions. You can also use the system to collect data on your environment to create 3D flight paths through mountains, forest, and buildings.

Mission-Ready Payload

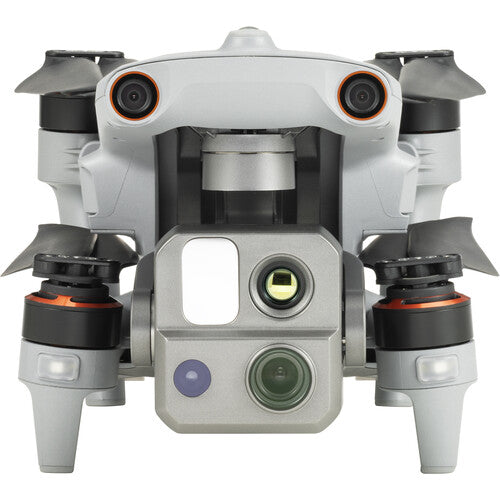

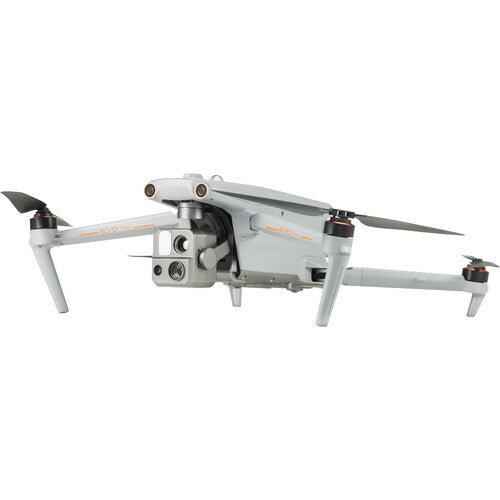

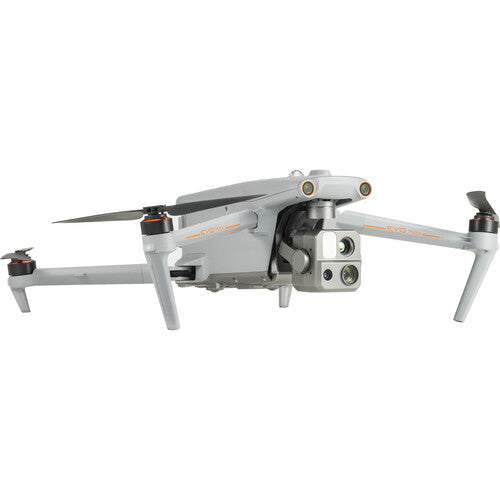

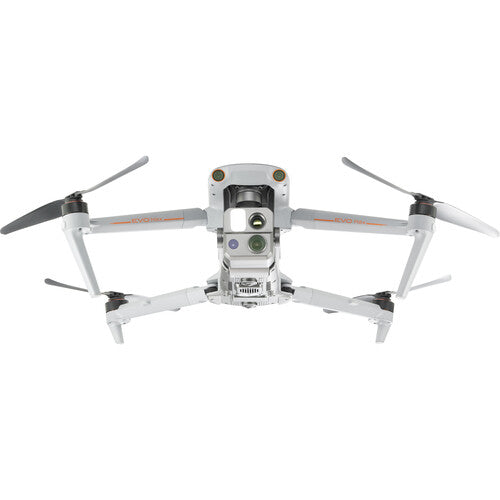

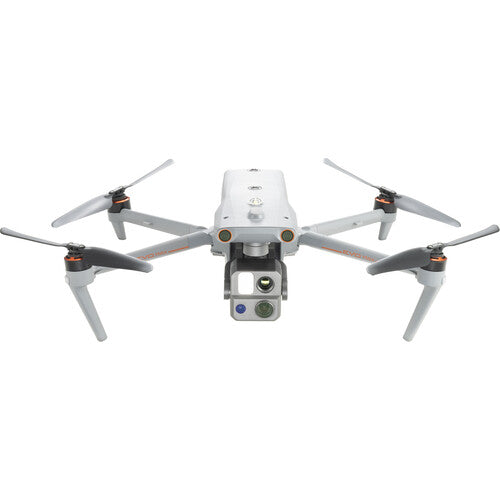

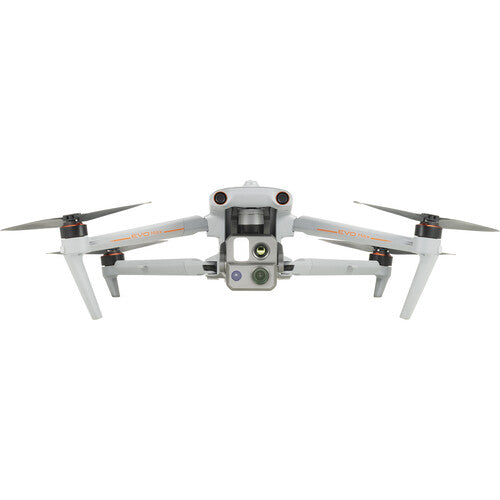

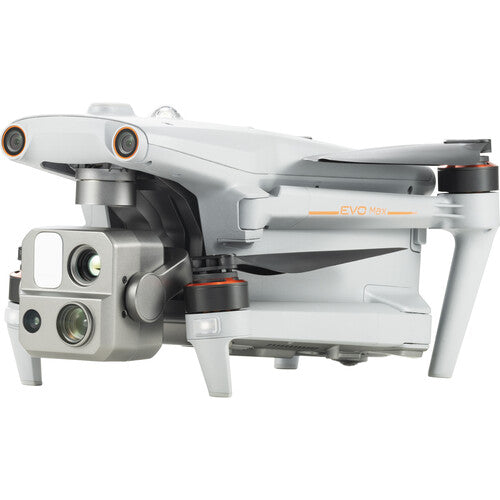

Regardless of the challenge in front of you, the integrated 3-axis gimbal and payload of the EVO Max 4T can likely handle it. It features two RGB cameras, a thermal camera, and laser rangefinder.

Zoom Camera: Up to 8K of resolution with 10x optical zoom and a hybrid 160x zoom that can display clear details on targets up to 1.24 miles away.
Wide-Angle Camera: 85° FOV with the ability to record up to 4K/30 video and low-light images with Moonlight Mode, which reduces noise and enhances HDR.
Thermal Camera: Ideal for rescues and inspection, you get 640 x 512 resolution footage at 30 fps with a 16x zoom and detection range from -4 to 1022° F.
Laser Rangefinder: Obtain coordinates and altitudes from 16.4' to 0.75 miles away with an approximate accuracy of 3.3'.

Fly Without Restrictions

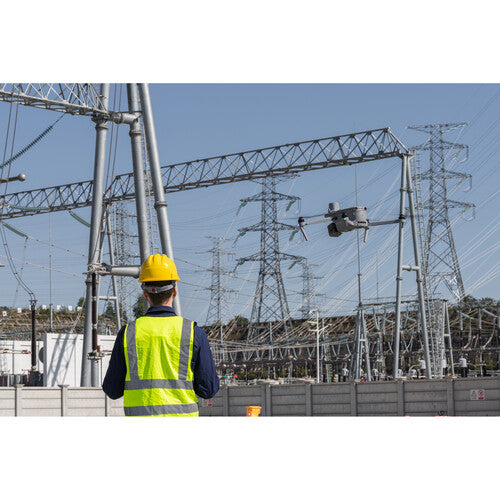

Anti-jamming and anti-interference flight control modules and algorithms are integrated into the EVO Max 4T to counter RFI, EMI, and GPS spoofing. This helps you fly safely near dangerous and complex structures, such as power lines. You can also use this technology to let the drone fly in GPS-denied locations, such as within a hardened structure, in a tunnel, or underground.

A Mind of Their Own

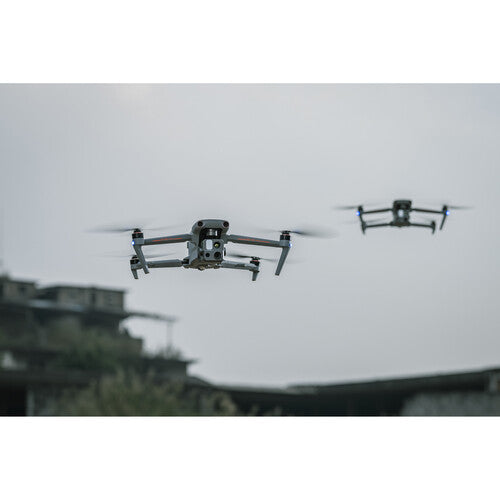

With A-Mesh 1.0 mesh networking, the EVO Max 4T is capable of drone-to-drone autonomous communication, connection, and collaboration. Essentially, a fleet of EVO Max 4T drones can operate seamlessly as one unit. If one drone fails or exits the area, the system will independently self-organize and continue to relay information.

Each drone relays information by acting as relay points, which can dramatically increase BVLOS (Beyond Visual Line of Sight) operations. A single pilot can control the entire fleet, or a group of pilots can pilot simultaneously, with or without LTE coverage. To increase coverage, optional static communication nodes can be placed on hills or poles, or a swarm of drones can provide mobile communication points.

Eye in the Sky

Utilizing Autel's AI recognition technology, the EVO Max 4T is able to automatically identify and lock onto different target types, such as heat sources, moving people, or vehicles. Once locked on, the drone can perform high-altitude tracking and data collection.

Smart Controller & Skylink

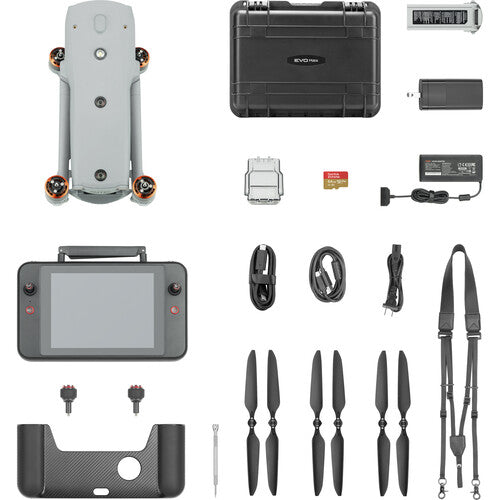

When piloting the EVO Max 4T, the 3rd generation of Autel Skylink works in tandem with the 3rd generation Smart Controller V3. Skylink 3.0 gets your commands to the drone and the drone's footage back quickly, efficiently, securely, and from long distances. The 6 built-in antennas can transmit 1080p/60 real-time video back to the Smart Controller from up to 12.4 miles away with under 150 ms of latency. The signal is kept stable with quad-band support (900 MHz, 2.4 GHz, 5.2 GHz, and 5.8 GHz), and offers optional 4G cellular integration. That critical data is secured along its journey with robust AES-256 data encryption.

Pilots receive that drone footage and essential telemetry in real-time on the huge, built-in 7.9" display (2048 x 1536 resolution), with daytime viewing support thanks to 2000 nits of brightness. Footage can be transferred off to mobile devices quickly via SuperDownload at a rate of 20 MB/s for immediate review and analysis. With 128GB of integrated storage, you can keep footage on the remote, along with 3rd party apps. Other members of the team can monitor the action if needed via the HDMI port and an optional external display, and pilots can utilize all of this for up to 4.5 hours at a full charge.

Enhanced Live View

Multi-Channel Projection Screen: Supports simultaneous output of RGB video, infrared, night vision, and wide-angle images. Please note that as of this writing, this feature is planned as a future update.
AR Scene: Geo-location data and other aircraft location information detected by ADS-B can overlay on a real-time map, which conveniently confirms the drone's location and helps avoid airborne risks. Please note that as of this writing, this feature is planned as a future update.

Autel Enterprise App

Built for industrial and professional applications, the updated interface provides easy and intuitive operation and offers a host of autonomous and semi-autonomous mission planning functions.

3D Map Planning: Plan, create, and execute 3D waypoint mission plans on a 3D map.
Quick Mission: Temporary quick missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.
Mission Reproduction: When activated, you can fly a manual or semi-autonomous mission, or string multiple missions together. The drone will automatically record the camera angles and can replicate the mission you flew.
Polygon Mission: Supports one-click automatic generation of polygon flight areas.
Terrain Follow: Maintain relatively constant altitude from the ground for uneven or sloped terrain.
Rectangular Mission: Supports one-click automatic generation of a rectangular flight area.
Waypoint Mission: Add waypoints for flexible and non-structured flight paths.
Oblique Photography: Automatically plan 5 groups of routes (1 Ortho and 4 Oblique) according to the flight area set by the user.
Spiral Mission: Helical flight search in a designed area for SAR.
Vertical Scan: Perform vertical surveys for building facades, open pit walls, and towers.
Corridor Mission: Fly missions for roads, rivers, pipelines, power lines, and other narrow, large-scale terrain.
Automatic Mission Generation & Data Capture: Automatically produce routes by adding regional boundary points through dots or importing KML files.

Data Security

The video, images, and flight logs are all secured with AES-256 data encryption and password protection. In addition, all user and aircraft data, including flight logs, locations, and account information, can only be accessed physically by those with access to the aircraft.

Additional Features

Designed to deploy to the sky in just 15 seconds
IP43-rated water and dust resistance
Up to 42 minutes of flight

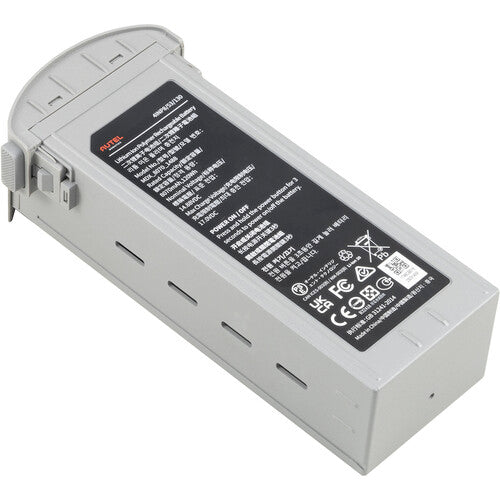

Hot-swappable batteries
Up to 52 mph flight speed
Up to 27 mph wind resistance
Up to 23,000' service ceiling

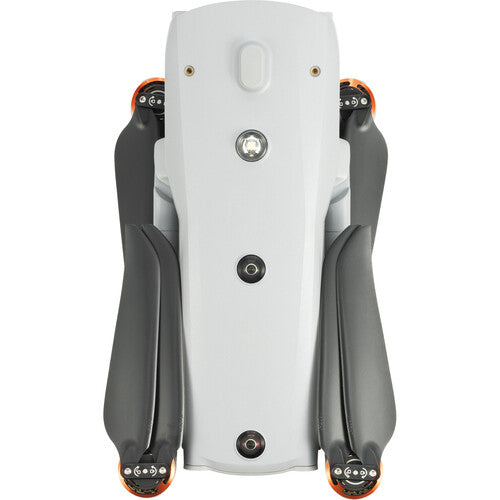

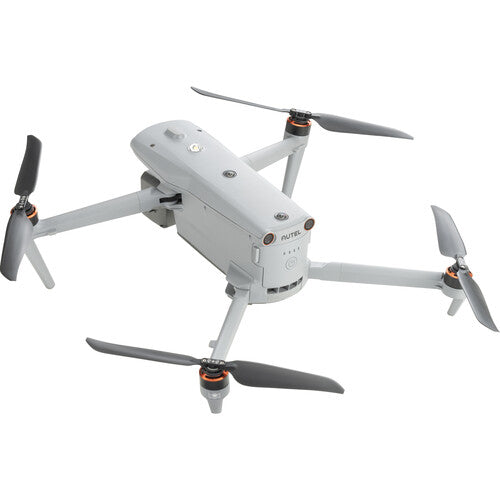

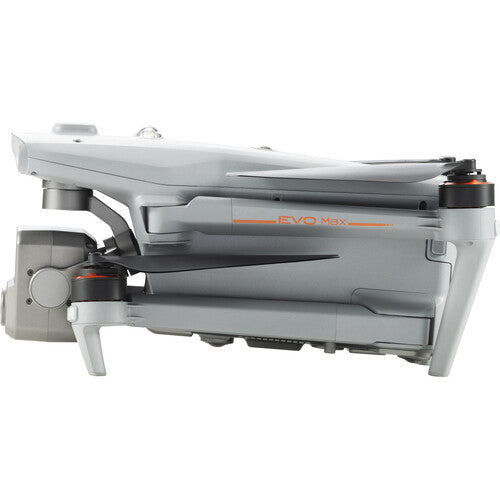

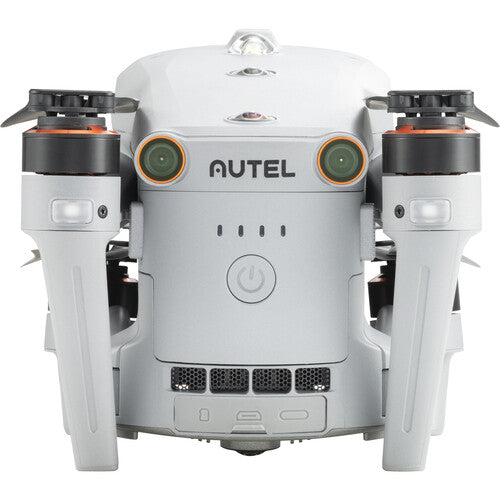

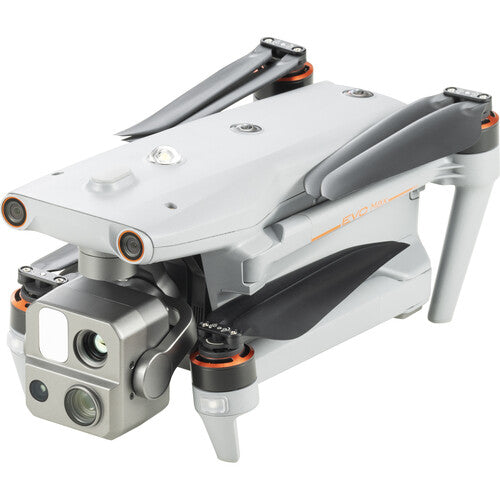

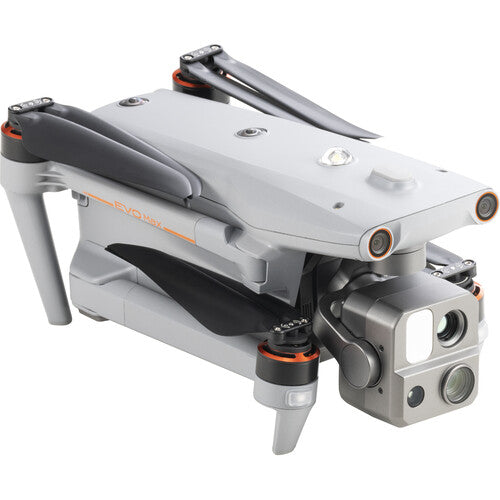

Foldable design for easy storage and transport
