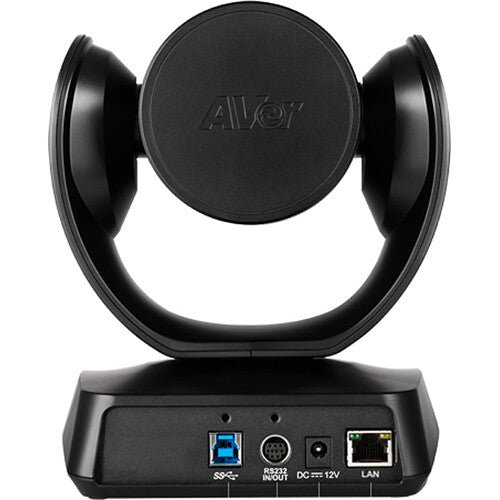

AVer COM520PRS 12x PTZ USB Conference Camera

AVer CAM520 is a professional-grade yet user-friendly PTZ camera perfect for mid to large conference rooms. With 12X optical zoom, HD 1080p and whisper-silent Pan/Tilt/Zoom features, CAM520 results in uninterrupted sharp images for an outstanding video communication experience. The built-in USB interface is compatible with any desktop or laptop and can be used with your favorite meeting and video apps. Video conferencing is now as simple as plugging in a single cable.

12X optical zoom with PTZ

With its combination of 12X true optical zoom, fast auto-focus functions, and smooth pan, tilt, zoom capabilities, CAM520 is able to capture the smallest details with absolute clarity at all times.

Full 1080p high definition video

With its High Definition 1080p resolution, CAM520 delivers the highest image quality available for an exceptional video collaboration experience.


10 camera presets

Having only one camera preset can be extremely limiting. The CAM520 allows you to customize your meetings by storing up to 10 PTZ presets. Each preset can be easily accessed with one touch of the remote, saving you time and providing flexibility to swiftly move to predetermined locations in the conference room.

RS232 integration capabilities

With advanced integration capabilities built into the CAM520, including an RS232 port and VISCA support, the system can easily be integrated into a controlled environment allowing users to operate and manage the CAM520 through an AV control panel.

Choose your own audio system

You now have the choice to use your preferred microphone, speaker or sound processor when making your video calls with the CAM520 USB PTZ camera. The CAM520 gives you the versatility to choose the audio subsystem you want to use for your video conferencing calls, webinars, streaming, or broadcast meetings. If the audio subsystem you choose to use is supported by your application, they will be compatible with the AVer CAM520.

System
Description:	USB 2.0 12x PTZ camera
Components:	Camera, remote control, mount, accessories
Maximum reach:	PC to camera 16'
Options:	20m USB 2.0 cable by 3rd party, DIN to RS232 adapter
Camera
Description:	12x optical zoom wide angle auto focus 1080p mechanical PTZ camera
Image sensor:	1/2.8" 60fps low lux 2M pixel CMOS sensor
Scan:	Progressive scan
Zoom ratio:	12x lossless true optical zoom
Lens:	Multiple element precision glass optics with auto focus and multi coating
Lens focal length:	f = 3.9mm(wide) ~ 46.1mm(tele)
Field of view:	Horizontal 82° (wide) ~ 7.5° (tele)
Lens F#:	F = 1.8(wide) ~ 2.8 (tele)
Minimum Illumination:	3.5 lx (50 IRE, F1.8, shutter 1/30 )
Minimum working distance:	1.5m
Mechanical pan:	±130°
Mechanical tilt:	90°(up)+25°(down)
Mechanical pan/tilt step:	Pan 0.45°; Tilt 0.40°
Pan Tilt Zoom control:	IR remote; USB: UVC 1.1; RS232: VISCA; AVer PTZapp
Position preset:	10 locations by remote,RS232 100 positions
USB 2.0 camera:	UVC (USB Video Class) 1.1
USB UVC 1.1 format:	1080p 60/30/15, 720p 30/15 down to 160x90 30/15
Video encoder:	MJPEG, H.264 AVC high profile/base profile, H.264 SVC-T
White balance:	Auto/Manual color temperature adjustment through standard UVC command
Additional features:	BLC (Back Light Compensation)
Mount:	Standard tripod thread
Security:	Kensington slot
Dimensions:	180 x 140 x 182 mm
Weight:	1.5kg
Remote control
Description:	Infrared remote control with 10 camera preset
Dimension:	50 x 200 x 20 mm
Weight:	0.05kg
Environment
Operating temperature:	0°C ~ +40°C
Operation humidity:	35% ~ 90%
Storage temperature:	-20°C ~ +60°C
Storage humidity:	35% ~ 90%
Compatibility Compatibility and compliance
USB:	USB 2.0 UVC video and audio for broad application compatibility
Driver:	No driver needed for Windows 7, 8, 8.1, 10; Mac OSX
Application compatibility:	Skype™, Skype for Business, BlueJeans, ZOOM, Microsoft® Lync™, Google Hangout, Cisco WebEx® , GoToMeeting™, WebRTC, Wirecast, vMix, XSplit, Adobe Connect
Additional tools:	AVer PTZapp for additional controls and firmware update
Mount
Camera mount:	Included for wall and ceiling installation
Warranty
Period:	Camera: 3 year; accessories: 1 year
