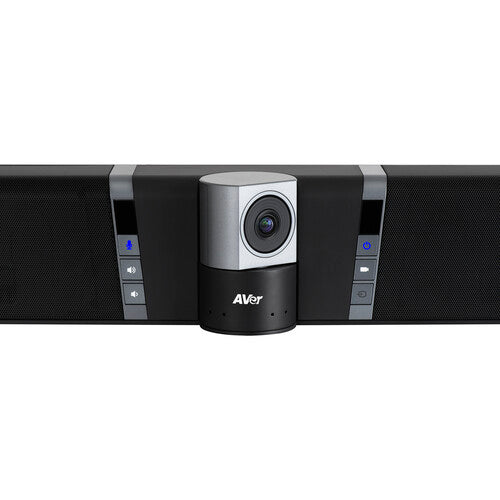

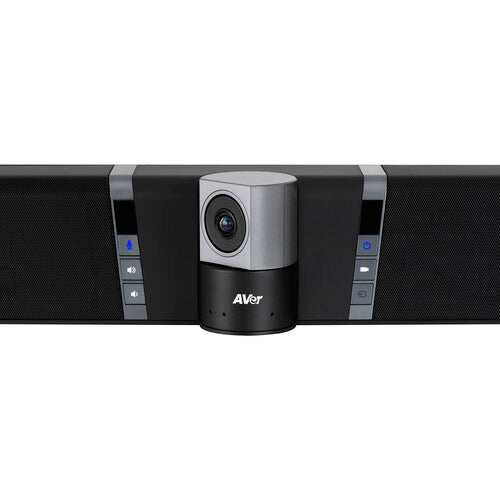

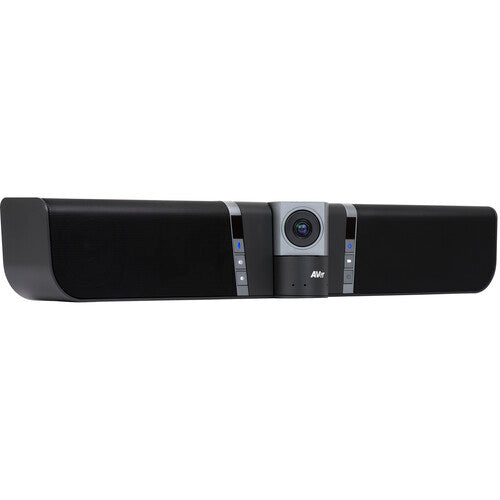

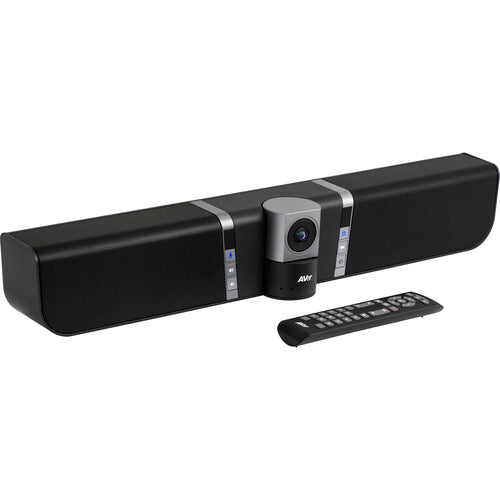

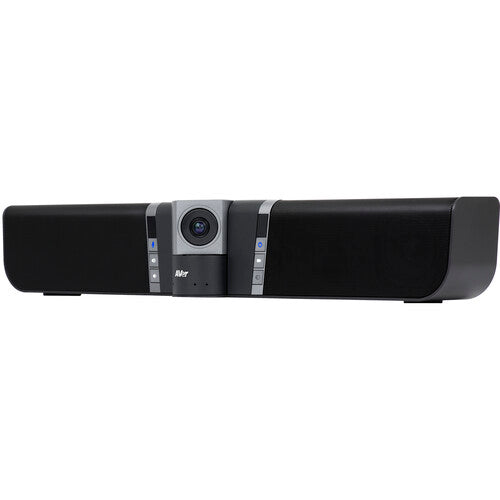

AVer COMVB342+ All-in-One USB 4K Camera Soundbar



The VB342+ delivers high quality audio and expansive sound in an easy to use all-in-one soundbar.

The VB342+ is an affordable, professional-grade USB Soundbar optimized to deliver
exceptional audio visual experience to huddle rooms and small conference rooms.

180° viewable area from motorized pan and tilt

The VB342+ captures the entire room with 120 degree FOV featuring a 180 degree motorized
pan and tilt, for a wider perspective than ever. Easily view the whiteboard on the sidewall with
the push of a button and save up to 3 preset locations.

Identify voices instantly with SmartSpeaker

Aver's SmartSpeaker tracking pinpoints where you are located in the room, cuts through
background noise, and picks up your voice clearly. SmartSpeaker's voice tracking presets eliminates
the need to move closer to the microphone.

Constant clarity with True WDR

Wide Dynamic Range (WDR) controls light exposure in high-contrast areas to provide
crystal clear images. No need to worry about tricky lighting conditions, now you can
hold your meeting anywhere in any lighting with the VB342+.

120° wide angle no distortion

The VB342+ has the widest possible field of view with zero distortion. Perfect for huddle rooms where attendees are closer to the lens.

Super sharp accurate color up to 4K

Finally the term “Like looking through glass” can be used. The VB342+ uses high quality sensors and multi-lens glass to produce the sharpest and most accurate color ever.


Sony Exmore sensor: Ultra-crystal clear image support up to 4K
Frame rate: 4K 30fps, 1080p, 720p, 960x540, 848x480, 800x448, 640x480, 640x360, 424x240, 320x240, 320x180 at 60, 30, 15 fps
SmartFrame: Automatic FOV adjustment to fit all participants
120° Wide field of view
True WDR up to 120db: Superb back light compensation technology for optimizing light balance in high contrast conditions
Digital zoom rate up to 4X leveraging 4K sensor
3D de-noise technology, keep clear and natural image in low light conditions
Mirror, AE, white balance: auto, manual override by PTZApp
Minimum focus distance 80cm
Analytics API: Enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage

Motorized Pan and Tilt Movement
Pan: Total horizontal viewing area 180°
Tilt: Total vertical viewing area 105°
10 camera presets (through remote control)
Fast and quiet Pan & Tilt movement

Microphones: 2 uni-directional microphones supporting pick up in 12 feet range
5Wx2 stereo full range speakers with professional bass port tuned for communication
Volume up to 96dB SPL at 1/2 meter
Echo cancellation
Noise suppression
3.5mm Line-in (aux) cable connects to BYOD smartphones or PC as speakerphone

DisplayLink: USB 3.1(GEN 1) to HDMI adapter built-in
1080p HDMI output to TV1


12V/5A power adaptor
Mini DIN6 for RS232 connection
USB Type C connector
HDMI out connection (DisplayLink)
Phone in (3.5mm audio Jack)
MIC Input

Video Format

Environmental Data
Operation temperature: 0 ~ 40°C
Operation humidity: 20% ~ 80%
Storage temperature: -20 ~ 60°C
Storage humidity: 20% ~ 80%

Package dimensions: 739 x 193 x 229mm
Package weight: 4.16kg/9.3lbs
Camera: 650 x 100 x 109.5mm/2.133kg
Remote control: 200 x 50 x 21 mm/0.09kg

Package Contents
VB342+ unit
Power cable (10ft; 3m)
USB3.1 type-C to type-A Cable (6ft, 1.8m)
USB3.1 type-A to type-C adapter
Quick-start guide
Wall mount bracket and screws
Warranty card
Remote control

3.1 Gen1, backward compatible USB2.0
UVC (USB Video Class) 1.1

IR remote control
VISCA/pelco P/pelco D via RS232
UVC/UVA plug-and play

Security and Mount
Camera wall mount bracket included

System Requirement
Windows 7/8/8.1/10
Mac OS X 10.7 or higher
Google Chromebook version 29.0.1547.70
Android 5 or higher

Hardware Spec2

2.4GHz Intel@ Core 2 Duo processor
2GB RAM or more
USB 3.1 Gen1 port (support 4K); USB2.0 port (Support up to 1080p)

Power Supply
AC 100V ~ 240V, 50/60Hz
Consumption: 12V, 5A

Free Applications for Meeting Collaboration
(Free Apps support on Windows® and Mac® computers)

EZManager: Camera Central Management software
Remotely group FW/SW upgrades, camera control and settings

Compatible with SkypeTM Plugin for answering and hanging up via remote control
Upgrade firmware automatically or manually
Control camera
Set parameters and adjust camera image
Diagnose operating status
View live video

Real-time streaming / annotating / snapshots / video recording

Optional Accessories

Mini DIN6 to RS232 adapter
TV mount and mounting screws
33ft (10m) expansion microphone
66ft (20m) expansion microphone
33ft (10m) USB 3.1 extension cable
66ft (20m) USB 3.1 extension cable
16ft (5m) USB 2.0 cable


Camera: 3 year
Accessories: 1 year

Compatible Applications
ZOOM, Microsoft® Teams, Skype for Business, Skype™, Google Hangout, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe Connect, Cisco WebEx®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit

1. Need to install DisplayLink driver from AVer PTZapp
2. For 4K UHD support, please check with your software application provider for system/hardware requirements.
3. Please register online to receive free 2 year warranty extension. For detailed warranty information, please contact an AVer representative.
