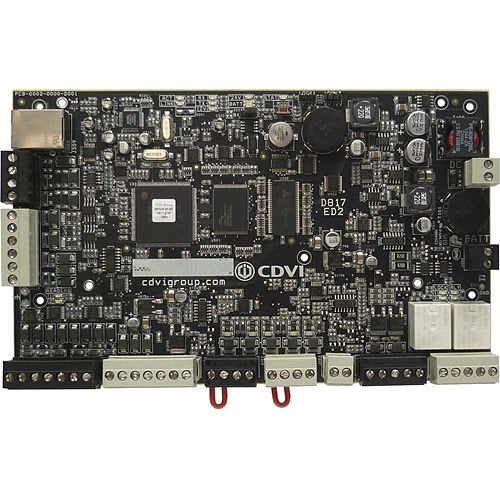

CDVI A22 Atrium Hybrid 2-Door Controller, No Metal Box


Product Overview

TheATRIUMaccess control system redefines ease of use and performance.ATRIUMallows you to manage up to 500 doors, proximity card readers, keypads or Schlage® wireless door handles. Setup of these devices is a breeze withATRIUM’sFREEsoftware.The embedded web server provides instant results using any web browser, smartphone or tablet.

The A22 is ATRIUM’s powerful Web-Based IP hybrid module. The flexibility of the A22 module allows it to be set either as a 2-door controller or expander (2 in 1).

Main Features
  • Without metal enclosure
  • Controls 2 doors and 2 readers
  • Convert any A22 door controller to an A22EC elevator controller by simply updating the firmware for free (up to 256 floors).
  • On-board Ethernet Port with AES 256-bit encryption
  • On-board RS485 communication bus, 1220 m (4000 feet)
  • On-board Embedded Web Server
  • Auto-detect hardware modules
  • Quick and easy card enrollment procedure
  • Lock outputs: 2 (750mA @ 12VDC/each)
  • Relay Outputs: 2 Form C relays (Dry Contact) 5A @ 250VAC, 7A @ 125VAC, 7A @ 30VDC
  • 6 multi-purpose inputs (12 using zone doubling)
  • Completely fuseless system
  • Up to 10,000 users
  • Up to 10,000 cards
  • Up to 25,000 Event Buffer
  • Ultra fast firmware updating
  • FREE Management Software
  • Maintenance-friendly snap on terminal connectors
  • Comprehensive LED status indicators
Main Features
  • Protect your premises from theft and unauthorized access with this door access control panel
  • Secure your door with this door access control panel
General Information
Name: CDVI A22 Atrium Hybrid 2-Door Controller, No Metal Box, CDVI Group, CDVI
Category: CDVI, Access Control, Control Panels, Control Panels
UPC Code: 3662211015135
Country of Origin: Canada. Country of origin is subject to change.
