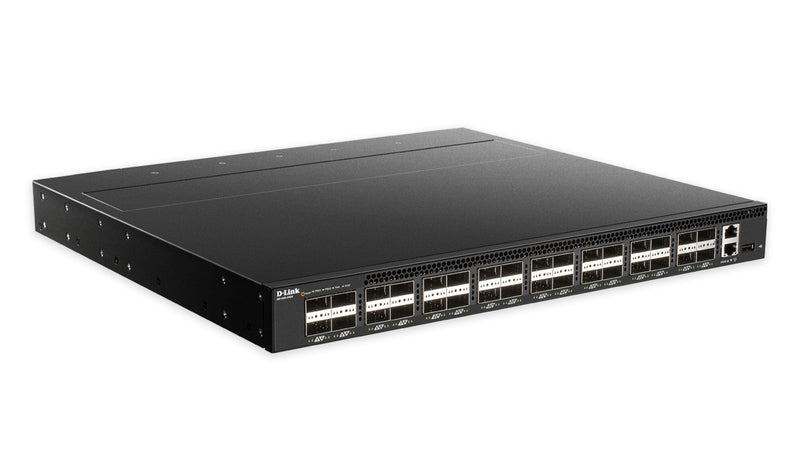

D-Link DQS-5000-32Q28/AF 32-Port 100G Data Center Switch


General Information

Manufacturer: D-Link Systems, Inc
Manufacturer Part Number: DQS-5000-32Q28/AF
Manufacturer Website Address: www.dlink.com
Brand Name: D-Link
Product Series: 5000
Product Model: DQS-5000-32Q28
Product Name: DQS-5000-32Q28 Layer 3 Switch
Marketing Information: The D-Link 5000 Series Data Center Switches are a series of high-performance switches that feature high port density, routing, and ultra-low latency, designed to be deployed as Top-ofRack (ToR) or leaf-spine switches in data center applications. Combined with ONIE support and increased cost-efficiency, the 5000 Series form a flexible long-term solution for managing and expanding data center infrastructures in a Software-defined Networking (SDN) environment.

Bare Metal and Open Networking Data Center Switches

Open Networking

The 5000 Series switches support open networking, providing IT professionals with innovative third-party operating systems and software options. This lowers costs by separating software from hardware and increases network agility and flexibility. With support for standards-based tools and standards-based applications, open networking simplifies scalability and futureproofs the network.

As bare metal switches, the 5000 Series switches ship pre-loaded with Open Network Install Environment (ONIE). ONIE is an open source install environment that acts as an enhanced boot loader. This small Linux operating system allows administrators to install the network operating system(s) of choice as part of the data center provisioning process in the same manner that servers are provisioned. In addition, the 5000 Series also offers network administrators the option to purchase a license to activate the D-Link OS on the switches.

High Availability and Reliability

The 5000 Series switches feature a modular fan and power supply design for a high availability architecture. The hot-swappable design means that fans and power supplies can be replaced without affecting switch operation. Load sharing enables both power supplies to evenly distribute load to increase reliability and lifetime. Meanwhile, 1+1 redundancy minimizes downtime in case of a single power supply failure.

Flexibility and Versatility

The 5000 Series switches are available in a variety of high-capacity interface combinations, including SFP+, QSFP+, SFP28, and QSFP28 ports to accommodate the scale and requirements of data centers. Open Network Install Environment (ONIE) support means the switches can be easily integrated in existing network ecosystems using a variety of supported third-party Network Operating Systems (NOSs) for optimal compatibility. Furthermore, the ability to pick and choose software based on practical requirements eliminates the restrictions imposed by vendor-locked software environments.

Cost-Efficient with Dedicated Support

Compared to traditional switches, the 5000 Series offer a more cost-efficient solution through a lower initial purchasing cost combined with a reduced longterm Total Cost of Ownership (TCO). The 5000 Series switches feature front-toback and back-to-front airflow which optimizes air circulation inside the rack and facilitates the building of energy-efficient data centers by separating the hot and cold aisles. The switches also feature built-in smart fans; internal heat sensors monitor and detect temperature changes, and react accordingly by utilizing different fan speeds for different temperatures. At lower temperatures, the fans will run more slowly, reducing the switch's power consumption and noise.
Product Type: Layer 3 Switch


Modular: Yes
Port/Expansion Slot Details: 32 x 100 Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported: Optical Fiber
Ethernet Technology: 100 Gigabit Ethernet
Network Technology: 100GBase-X

I/O Expansions

Number of Total Expansion Slots: 32
Expansion Slot Type: QSFP28
Shared SFP Slot: No

Network & Communication

Layer Supported: 3

Management & Protocols

Manageable: Yes

Power Description

Power Source: Power Supply
Redundant Power Supply Supported: Yes

Physical Characteristics

Form Factor: Rack-mountable
Height: 1.7"
Width: 17.3"
Depth: 16"
Weight (Approximate): 19.18 lb


Package Contents:

  • DQS-5000-32Q28 Layer 3 Switch
  • 2 x Front-to-Back AC PSUs
  • 4 x Front-to-Back Fan Modules
