General Information
Manufacturer: D-Link Systems, Inc
Manufacturer Part Number: DWL-8620AP
Manufacturer Website Address: www.dlink.com
Brand Name: D-Link
Product Series: DWL
Product Model: DWL-8620AP

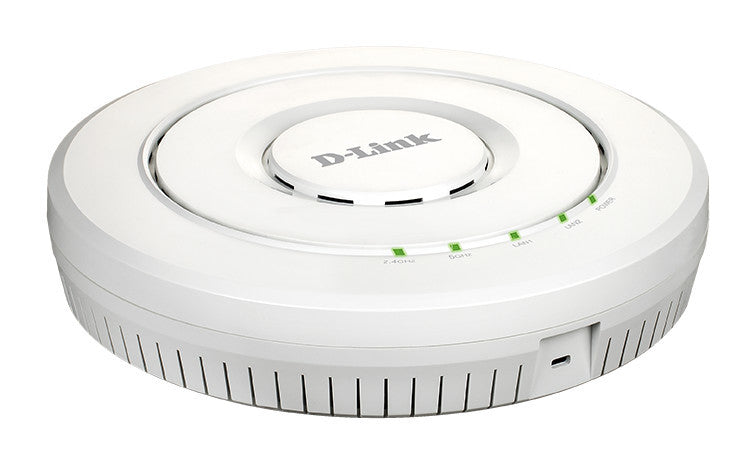

Product Name: Wireless AC2600 Wave2 4X4 MU-MIMO Dual Band Unified Access Point
Marketing Information:
The DWL Series Unified AC Wave 2 Wireless Access Points leverage the full potential of 802.11ac Wave 2 to provide unparalleled connectivity with ultra-high combined data rates. The DWL-8620AP and DWL-8620APE offer a faster combined speed of up to 2,533 Mbps. In addition, the DWL Series supports Link Aggregation3, which allows two Gigabit Ethernet ports to be linked together and act as a single port to double the available bandwidth and maximize the overall throughput of the access point.
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11ac
Frequency Band: 2.40 GHz
Frequency Band: 5 GHz
Wireless Transmission Speed: 2.54 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Interfaces/Ports
Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 2
PoE PD Port: Yes
Management Port: Yes
Physical Characteristics
Form Factor: Ceiling Mountable
Form Factor: Wall Mountable
Height: 1.9"
Diameter: 8.7"
Weight (Approximate): 1.74 lb
