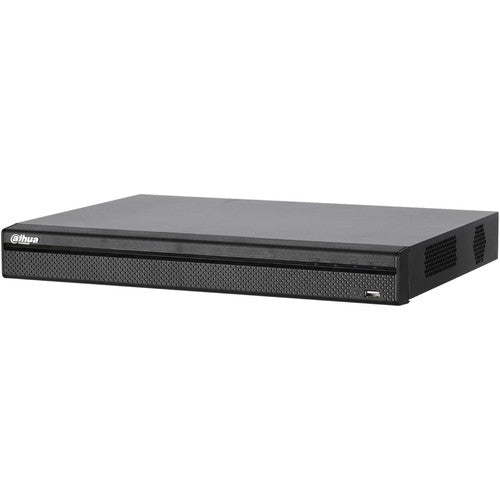

Record from, and manage, up to 32 cameras with the N52B5P Pro Series 32-Channel 4K UHD ePoE NVR from Dahua Technology at resolutions up to 3840 x 2160. Equipped with two SATA III ports, the NVR can support up to 20TB of internal storage (16TB preinstalled). Eight out of the NVR's 16 PoE ports support ePoE and EoC with the use of an optional EoC converter. ePoE offers a cost-effective solution for transmitting power and data over long distances via Ethernet or coaxial cables. Two-way audio is supported via RCA audio ports.
This NVR supports simultaneous HDMI and VGA outputs, as well as up to 128 users. With the help of H.265+, H.265, H.264+, H.264, and MJPEG compression, file sizes are kept manageable while recording and playback quality are maintained. ONVIF-compliance for version 2.4 enables interoperability with ONVIF-compliant cameras.
Smart H.265+ and H.264+ dual codecs
Up to 320 Mb/s incoming bandwidth
Up to 12MP resolution for preview and playback
Enhanced Power over Ethernet (ePoE) Technology for long-distance power/data transmission via Ethernet or coaxial cable
Ethernet over Coaxial (EoC) protocol to convert between analog and IP power/data transmissions
Ports 1 through 8 support ePoE and EoC signal transmission; up to 2625' via Cat 5e and 3281' via RG59
Simultaneous HDMI and VGA video output
Various dewarping modes
Intelligent Video System (IVS) built-in video analytics with standard, premium, and advanced features
Standard IVS features include detection of tampering, loss of camera focus, drastic change of camera focus, error writing onto onboard microSD card, error sending or receiving data over the network, and unauthorized access to camera
Premium IVS features include detection of motion, tripwire violation, intrusion, scene change, and abandoned/missing object
Advanced IVS features for cameras with built-in Intelligent Business Analytics include facial detection, people counting, heat map, face recognition, and license plate recognition
Automatic Network Replenishment Technology (ANR) for automatic storage of video data on IP camera's SD card when the network is disconnected
Smart fan with automatic speed adjustment based on ambient temperature reduces noise and electrical consumption
