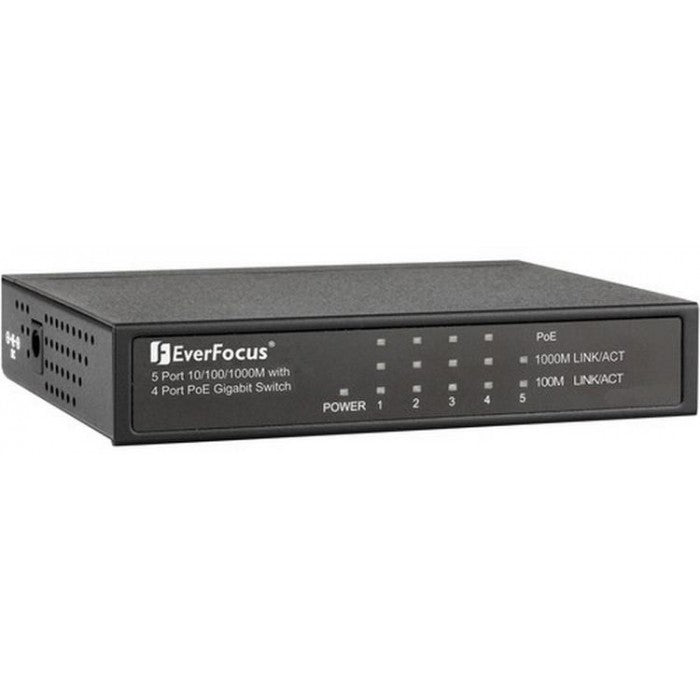

Everfocus EPOE05 5-Port Gigabit Ethernet Managed PoE Switch


This switch provides 5 10/100/1000M ports. It is designed for easy installation and high performance in an environment where traffic is on the network and the number of users is increased continuously. It consists of 4 PoE/PSE ports and can solve the limitation of outlet locations. In addition, it will offer a system designer more flexible solution to locate the network device everywhere. The compact desktop size is specifically designed for small to medium work groups. It can be installed where space is limited; moreover, it provides smooth network migration and is easy to upgrade the network capacity.

IEEE 802.3af/at Power over Ethernet (PoE) ports

EPOE05 features 4-port PoE IEEE 802.3at supplying up to 30 watts per port. This product is 48V/DC power into low-voltage DC that runs over existing LAN cable to power up IEEE 802.3at compliant network accessories. It also features high power awareness to verify whether the network device receive power is IEEE 802.3at compliant, or only the data will be sent through LAN cable. By adding ES0501-40 to existing networking, installing networking products such as Access Points and IP cameras can be easily managed and set up. Wireless device deployments are easily located with available power outlets and network administrators don't need to use heavy AC power adapters anymore.

No Special Networking Cable Required

By adding PoE devices, you can use an existing standard Cat-5 Ethernet cable without a new electrical outlet for both power and data. It helps you reduce installation time and cost.


Every port can automatically sense your type of cable, so there is no need for crossover cables whether you are connecting this switch to another switch or to a computer.


Every port can automatically sense if the connected network devices are running at 10Mbps, 100Mbps or 1000Mbps and Half/Full-Duplex mode, and adjust accordingly.


This switch receives and forwards traffic seamlessly with its non-blocking wire-speed. Every port simultaneously supports up to 2000Mbps of bandwidth in full-duplex mode. This feature provides full wire speed to the connected devices and allows you to run a smooth network.

Store and Forward

By this function, this switch can maximize network performance while minimizing the propagation of bad network packets.
