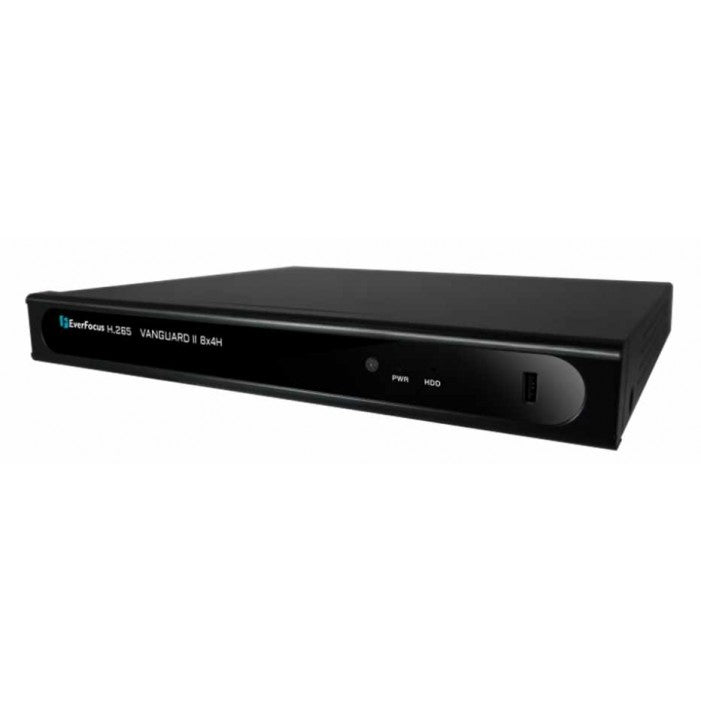

Everfocus VANGUARDII 8X4H/2T 8 Channel Hybrid Recorder, 8MP, NDAA 2TB


The Vanguard II series from Everfocus are NDAA Compliant Hybrid DVRs. This model is an 8 Channel Hybrid Recorder, with 2TB of included storage space. It also allows for up to 4 extra IP cameras to be attached (or use of 12 total IP cameras if no analog cameras are attached.

  • 2TB Included
  • Supports hybrid mode: Analog: Up to 8CH 8MP AHD/TVI/CVBS cameras
  • IP: Up to 4CH 8MP IP cameras (up to 12CH if only IP cameras are connected)
  • NDAA Compliant
  • Analog Frame Rates: Analog: 8MP: 7fps/CH; 5MP: 12fps/CH; 1080P: 25fps/CH (PAL); 30fps/CH (NTSC)
  • IP Frame Rates: TSC: 30fps (Each CH), PAL: 25fps (Each CH);
  • Video Outputs: HDMI/VGA: 1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080 (1080P), 1900x1200, 2560x1440 (2K HDMI only), 3840x2160 (4K, HDMI only) CVBS: Standard format
  • Supports H.265 / H.264 compression format
  • Supports cloud storage with Dropbox & Google Drive
  • Supports ONVIF 2.0 IP cameras
  • Control methods: mouse / IR remote controller
  • Remote configuration from built-in web interface
  • Supports video analytics
  • Integrates with EverFocus CMS
  • Supports multi-language
  • Supports mobile App: eFVMS App
  • 1 x RS-485 (for PTZ Control)
