Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: JH019A#ABA
Manufacturer Website Address: www.hpe.com
Brand Name: HPE
Product Series: 1420
Product Model: 1420-24G-PoE+ (124W)

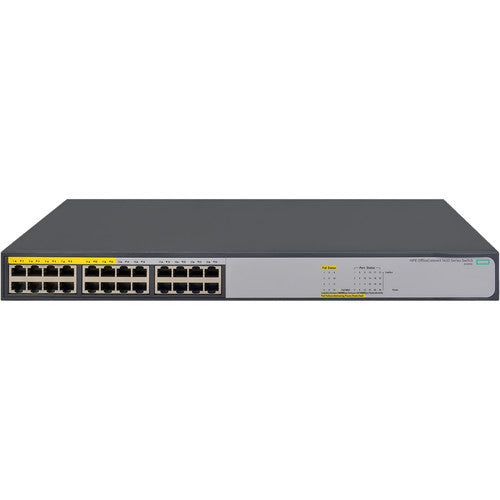

Product Name: 1420-24G-PoE+ (124W) Switch
Marketing Information: The HP 1420 Switch Series consists of unmanaged Gigabit Ethernet switches, for small business and others looking for plug-andplay basic Layer 2 connectivity for their network, including low-cost PoE+ and 10-Gigabit uplink models.
The 1420 Switch Series includes four Gigabit switches. All have 10/100/1000 ports for affordable Gigabit connections using copper Cat 5e cabling. There is a 16-port RJ45-only model. There is a 24-port model with two SFP Gigabit ports, ideal where long distances require fiber-based connections. Another 24-port model supports IEEE 802.3at PoE+ on 12 of its ports, able to forward up to 30W power on these ports to power Access Points, IP phones, IP cameras and other PoE-enabled devices. For cost-effective high-speed fiber-based server connections, there is a 24-port 10/100/1000 switch with two SFP+ 10-Gigabit ports.
HP 1420 switches have quality of service (QoS) support and IEEE 802.3x flow control features that improve network efficiency.
Simplified plug-and-play convenience is supported by features such as auto-MDIX and autospeed negotiation. HP has innovated and combined the latest advances in silicon technology to bring you some of the most power-efficient switches. All models support the Energy Efficient Ethernet IEEE 802.3az standard, as well as auto power-down mode on idle ports, and power saving on short-distance cables. With their fanless silent operation, these switches are ideal for office deployment. HP 1420 switches come with a limited lifetime warranty covering the unit and power supplies, as well as1030243913 24x7 phone support for the first three years of ownership.
Product Type: Ethernet Switch
Total Number of Network Ports: 24
Port/Expansion Slot Details: 24 x Gigabit Ethernet Network
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Network & Communication
Layer Supported: 2
Management & Protocols
Power Source: Power Supply
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Form Factor: Desktop
Weight (Approximate): 7.28 lb
- 1420-24G-PoE+ (124W) Switch
- Mounting hardware
Limited Warranty: Lifetime
