Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: AF621A
Manufacturer Website Address: www.hpe.com
Brand Name: HPE

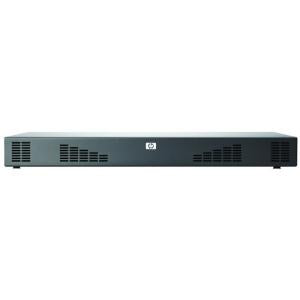

Product Name: 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software
Want a switch for remote management of all your servers, network devices, and technology infrastructure? HPE KVM IP Console Switches can allow an administrator to manage up to 1024 servers across two tiers from a single local console in cascaded environments. When tiered with additional HPE Console Switches with Virtual Media application installations and upgrades can be pushed to any server from the local console or remotely.
HPE KVM IP Console Switches along with the IP Console Viewer allows remote access to multiple servers running various operating systems. Virtual Media allows a removable drive or ISO image to be remotely mapped to an attached server or a remote office.
An intuitive Local Console User Interface provides menus for configuration, virtual media, display, security and upgrades that is the same as the On Board Web Interface (OBWI) used for remote management. Implement two-factor authentication to increase security in the data center with CAC compatibility.
Improved Functionality, Performance, and Security to the Data Center
HPE KVM IP Console Switches provides Smart Card or Common Access Card (CAC) support to the server.
Tiering port. For companies requiring direct remote access in every rack can now aggregate local access to the IP Console Switches for a row of racks to a single console as well as at each rack giving them two local users.
New video compression allows 1600x1200 @ 60Hz or 1680 x 1050 @ 60Hz 16-bit color for remote sessions without impacting performance.
Access using SSH or Telnet compliant clients.
Up to (32) target server ports per switch for a wider range of rack density support.
Enhanced Remote Functionality for Quick and Easy Management
HPE KVM IP Console Switches includes full remote KVM functionality giving you remote KVM control of servers and serially attached devices at near local performance.
Remote virtual media-Easily load and update software and firmware from anywhere on the LAN or WAN when used with Virtual Media Interface Adapters.
iLO compatibility-Easily switch between remote KVM and iLO sessions directly from the IP Viewer software.
Robust Local Console User Interface
HPE KVM IP Console Switches displays all system-related information on the console monitor. Same look and feel as the remote On-Board Web Interface (OBWI).
Programmable Scanning-An evaluation of system performance can be made by sequentially scanning any or all of the computers in the system. Programmable scanning allows you to determine which computers to include as well as the duration of the connection.
Configuration NVRAM-NVRAM (non-volatile RAM) makes it easy to set configuration information using commands entered from the keyboard. The NVRAM stores the resulting configuration until a user decision is made to change the information, even if the unit loses power.
Password Protection-For protection against unauthorized users, the switch box provides a local password option for security purposes as well as individual user authentication and access rights for remote users.
Packaged Quantity: 1
Product Type: KVM Switchbox
KVM Technology: Digital
Number of Computers Supported: 16
Number of Local Users Supported: 1
Number of Remote Users Supported: 2
Maximum Video Resolution: 1600 x 1200
Network (RJ-45): Yes
Form Factor: Rack-mountable
Rack Height: 1U
Weight (Approximate): 7.10 lb
- 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software
- 1 x DB9-RJ45 adaptor
- 1 x Power Cord
- 1 x Documentation kit
Environmentally Friendly: Yes
Environmental Certification: REACH
