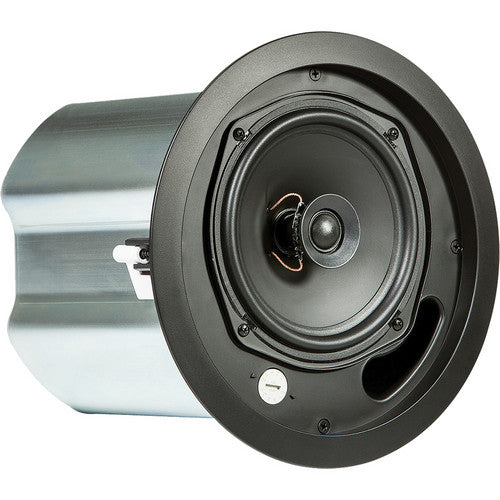

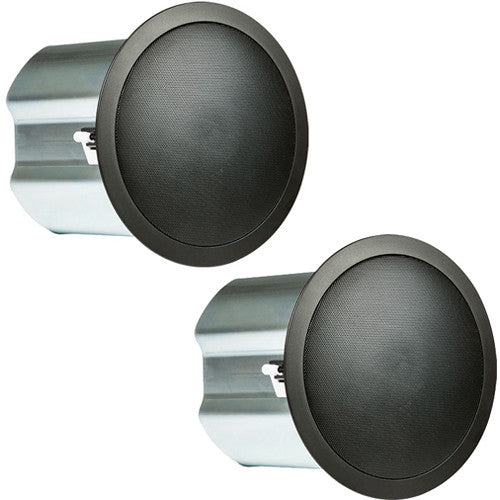

JBL Control 16C/T 2-Way 6.5" Coaxial Ceiling Loudspeakers (Pair, Black)

$289.00

Styled in black, this pair of JBL Control 16C/T Speakers are designed to suit a variety of spaces, such as cafes, places of business, airport lounges, reception areas, court rooms, and more. They feature a 2-way coaxial design, giving you a 6.5" cone driver and a 0.75" soft-dome, liquid-cooled tweeter. With their coaxial construction, these speakers deliver a more consistent sound off-axis, which is a benefit for environments in which indirect listening takes place.

The drivers themselves are designed using a high-temperature anodized aluminum voice coil former and high-temperature voice coil to ensure a reliable performance throughout years of continuous use. Butyl rubber encloses the drivers, offering further durability, as well as sonic damping. The cone itself is resistant to both water and humidity. Thanks to a FEA-optimized motor construction, the Control 16C/T achieves a smooth frequency response.

Installation is made possible via the removable locking connector, within which you'll find screw terminals for wire termination, as well as loop-thru points for furthering signal to more speakers. Dual conduit clamps employed to provide strain relief to both the input and loop-output cables. You can use the speaker to handle 8-Ohm loads, or as part of a 70V / 100V distributed loudspeaker system with a 30W multi-tap transformer.

These speakers ship with two tile rail supports, as well as a C-ring support backing plate, cutout template, paint shield, and grille. On the top of the speaker you'll find a safety seismic attachment ring.

100W continuous program power rating

Components: 6.5" / 165.1mm high-output driver with polypropylene cone and butyl rubber surround, and 0.75" / 19mm soft-dome liquid-cooled tweeter

Blind-mount backcan for quick and easy install

Dual conduit cable clamps

Combined 70V/100V and low impedance direct operation

62 Hz to 20 kHz bandwidth with 110° conical coverage

High 91 dB sensitivity

Suitable for use in air handling spaces and as signaling speakers

Basic
Brand Name: JBL Professional
Color: Black
Crossover Type: 2-way
Driver Type: 0.75" Silk Dome
6.50" Polypropylene
Form Factor: Ceiling Mountable
Impedance: 8 Ohm
Maximum Frequency Response: 15 kHz
Minimum Frequency Response: 96 Hz
PMPO Output Power: 100 W
Product Family: Control 10
Product Type: Speaker
RMS Output Power: 50 W
Sensitivity: 91 dB
General Information
Brand Name: JBL Professional
Manufacturer: Harman International Industries, Inc
Manufacturer Part Number: CONTROL 16C/T-BK
Manufacturer Website Address: http://www.harman.com
Product Line: Control
Product Model: 16C/T
Product Name: Control 16C/T Two-Way 6.5" Coaxial Ceiling Loudspeaker
Product Series: 10
Product Type: Speaker
Miscellaneous
Certifications & Standards:
  • UL1480
  • UL2043
  • NFPA90
  • NFPA70
  • S7232/UL
  • UL1876
  • C-tick N108
  • CE
  • UL94-V0
  • UL94-5VB
  • IEC60849/EN60849
Environmental Certification: RoHS
Environmentally Friendly: Yes
Package Contents:
  • Control 16C/T Two-Way 6.5" Coaxial Ceiling Loudspeaker
  • C-ring Support Backing Plate
  • 2 x Tile Support Rails
  • Cutout Template
  • Paint Shield
  • Removable Locking Multi-pin Connector
  • Grille
Physical Characteristics
Color: Black
Depth: 8.8"
Diameter: 10"
Form Factor: Ceiling Mountable
Material: Acrylonitrile Butadiene Styrene (ABS)
Butyl Rubber
Kapton
Steel
Zinc
Weight (Approximate): 7.40 lb
Technical Information
Crossover Type: 2-way
Driver Type: 0.75" Silk Dome Tweeter
6.50" Polypropylene Woofer
Impedance: 8 Ohm
Maximum Frequency Response: 15 kHz
Minimum Frequency Response: 96 Hz
PMPO Output Power: 100 W
RMS Output Power: 50 W
Sensitivity: 91 dB
Sound Pressure Level: 116 dB
Warranty
Limited Warranty: 5 Year
