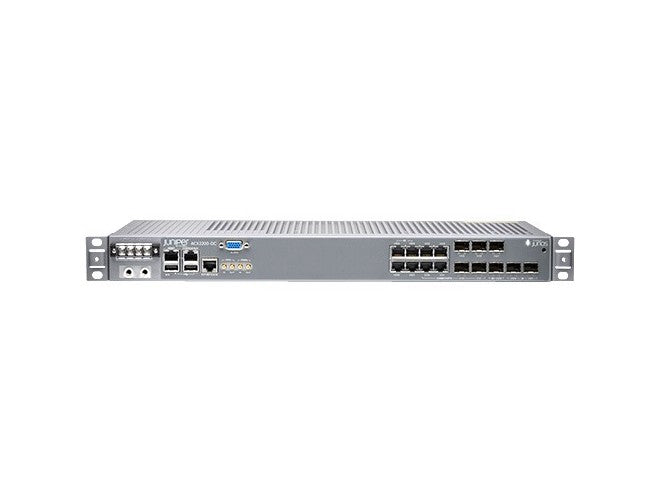

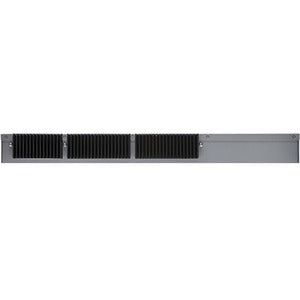

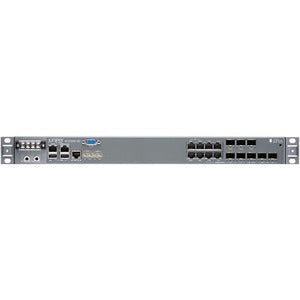

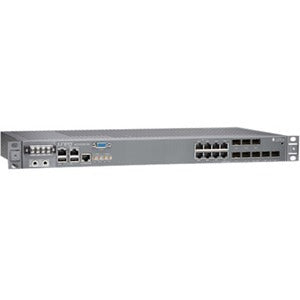

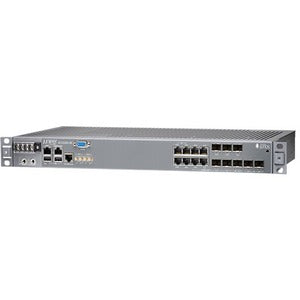

Juniper Networks ACX2200-AC Universal Access Router AC Dual PS 1RU


The compact, Ethernet only environmentally-hardened ACX2200 router with fanless passive cooling has a fixed port configuration that includes four copper 10/100/1000Mbps interfaces, four combination copper/fiber GbE ports, two GbE SFP ports, and two 10 GbE SFP+ ports.

A built-in service engine makes the ACX2200 fully customizable and future-proof for LTE-A and 5G requirements. The scalability and reliability of the ACX2200 improves customer satisfaction, while lowering the total cost of operating, maintaining, and updating the network infrastructure for service providers and enterprises.

Limited Warranty 1 Year
I/O Expansions
Expansion Slot Type SFP+
Number of Total Expansion Slots 8
Network & Communication
Network Technology 10GBase-X
Ethernet Technology 10 Gigabit Ethernet
Power Description
Input Voltage 230 V AC
120 V AC
PoE (RJ-45) Port No
Redundant Power Supply Supported Yes
Token Ring Port No
Number of Network (RJ-45) Ports 8
Powerline No
Management Port Yes
Total Number of Ports 8
Serial V.35 Interface No
Certifications & Standards Safety:
      • CAN/CSA-C22.2 No. 60950-1
      • UL 60950-1
      • EN 60950-1
      • IEC 60950-1 - CB Scheme
      • EN 60825-1
      • AS/NZS CISPR22 Class A
      • EN55022 Class A
      • VCCI Class B
      • FCC Part 15 Class A
    • EN-61000-3-2 Power Line Harmonics
    • EN-61000-3-3 Voltage Fluctuations and Flicker
    • EN-61000-4-2 ESD
    • EN-61000-4-3 Radiated Immunity
    • EN-61000-4-4 EFT
    • EN-61000-4-5 Surge
    • EN-61000-4-6 Low Frequency Common Immunity
    • EN-61000-4-11 Voltage Dips and Sags
Environmentally Friendly Yes
Environmental Certification REACH
Physical Characteristics
Weight (Approximate) 8.30 lb
Form Factor Rack-mountable
Height 1.8"
Width 17.5"
Depth 9.4"
Compatible Rack Unit 1U
General Information
Product Type Router
Manufacturer Part Number ACX2200-AC
Manufacturer Website Address
Manufacturer Juniper Networks, Inc
Product Model ACX2200
Product Name ACX2200 Router
Product Series ACX
Brand Name Juniper
