- Full HD 1920 x 1080 display
- HDMI input / output standard
- Modular design. Allows addition of 3GSDI input
- Waveform monitor at the push of a button
- Audio meter bars overlay
- Built-in speakers and headphone jack
- Rugged 4-pin XLR power connector
- Three color (Red, Yellow, Green) LED tally lights

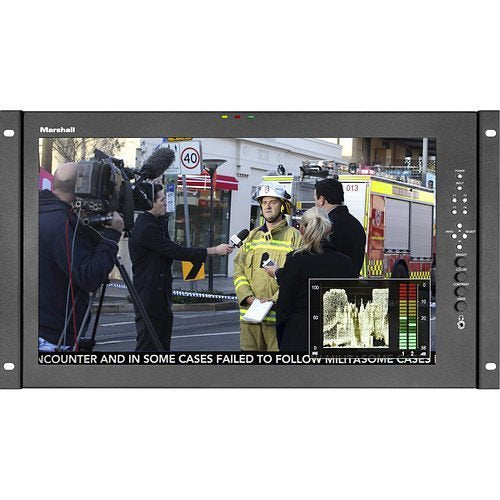

Marshall V-LCD171MD monitor provides excellent features in a popular 17-inch size. Straight-forward design with the most-used features built-in including waveform and audio bar overlays, loud speakers, programmable function buttons, three-color tally lights and tilting mount design for easy viewing. Great for use in news vans, satellite trucks and central equipment rooms. The V-LCD171MD base unit comes with no preinstalled module.
DSLR RATIO ADJUSTMENT
Marshall's new DSLR RATIO ADJUSTMENT feature allows users to scale video that does not completely fill the monitor's screen when connected via HDMI in "Record" mode on certain Canon DSLRs. This new feature allows the user to scale their DSLR video output, fill the screen, and eliminate black pillar bars with a variety of options to choose from. The user has the option of choosing between NORMAL, 3:2, 16:9, and FULL SCREEN. The DSLR RATIO ADJUSTMENT feature can be programmed to one of the front panel's four-button presets for quick and easy access.
Waveform, Audio and Clip Guide displays
The new V-LCD71MD incorporates both a Waveform display and Stereo Audio bars. These may be displayed separately or together in any one of the four corners of the monitor. The Stereo Audio is de-embedded from either the HDMI input (8 channels) or from the optional 3GSDI input (16 channels). Any pair of the available channels may be selected for both the display and the Headphone Output.
False Color Filter
The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.
- Is power-efficient with minimal heat production to ensure a prolonged, convenient usage
- 17.3" viewable screen size provides a spectacular viewing experience
- Enjoy crisp content and energetic hues with the 400 Nit brightness
- 17.3" screen size with 1920x1080 resolution provides a native display of a Full HD video sources without any degradation due to down-sampling technologies
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- 1920 x 1080 maximum resolution for stunning, lively result with optimal viewing usability
- 16:9 widescreen resolution perfect for watching movies, playing video games and getting on with office work
- HDMI interface allows you to connect to a variety of HD devices including gaming consoles, Blu-ray players, laptop PCs, digital cameras and many others for the ultimate true high-definition display
- On-screen Display (OSD) feature for maximum productivity with added dependability
- Rack-mountable lcd monitor ideal for usage in less physically demanding environments
Name: Marshall V-LCD171MD-3G 17.3" Full HD Rackmount Monitor with Waveform Overlay, Audio Bars, Loud Speakers and Pre-Installed MD-3GE Module Base, Marshall Electronics, Inc, Marshall Electronics
Category: Marshall Electronics, Pro AV, Video Production
Country of Origin: United States. Country of origin is subject to change.
