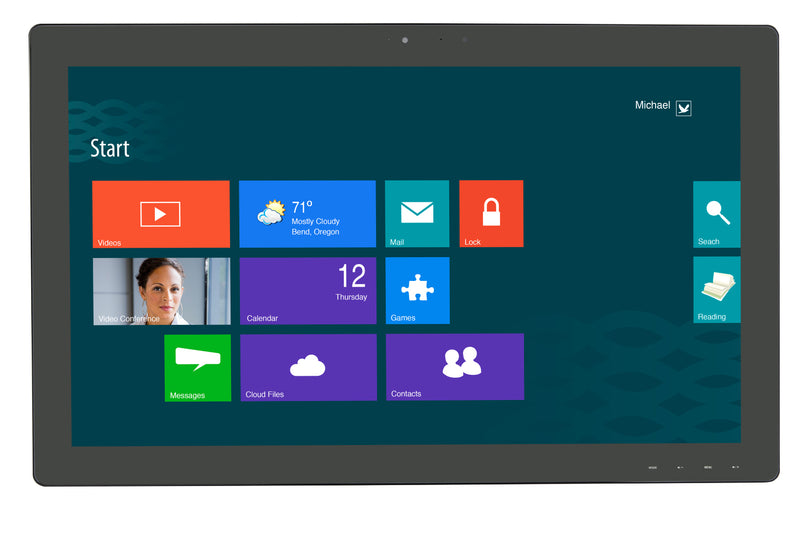

Planar Helium PCT2785 27" LCD Touchscreen Monitor - 16:9 - 12 ms


General Information

Manufacturer: Leyard
Manufacturer Part Number: 997-6848-00
Manufacturer Website Address:
Brand Name: Planar
Product Line: Helium
Product Model: PCT2785
Product Name: Helium PCT2785 27" Widescreen Multi-Touch Monitor
Marketing Information:

The Planar® Helium™ 27-inch multi-touch monitor is a bright, slim profile interactive touch display with a smooth all glass front surface, wide viewing angles and a built-in full HD webcam. With very light pressure from the user, the unique, easy-to-use desk stand is easily adjustable from 15 to 70° creating the ultimate touch experience on the desktop. The new PCT2785 is ideal for use by software developers and designers, corporate power users, enthusiasts and retailers. The new PCT2785 can be easily paired with a non-touch monitor to provide the ultimate in office productivity. The wide range of video inputs allow for easy plug and play into practically any existing work environment including workstations, ultrabooks and tablets to light up the benefits of the touch-friendly Windows® 8 operating system.

Product Type: LCD Touchscreen Monitor

Technical Information

Screen Size Class: 27"
Viewable Screen Size: 27"
Screen Mode: Full HD
Response Time: 12 ms
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Adjustable Display Angle: Yes
Mount Type: Wall Mountable
Backlight Technology: Edge LED
Features: OSD/Power Lock


Maximum Resolution: 1920 x 1080
Standard Refresh Rate: 60 Hz
Color Supported: 16.7 Million Colors
Contrast Ratio: 5,000:1
Brightness: 264 Nit


Speakers: Yes

Touchscreen Information

Touchscreen: Yes
Touchscreen Type: Projected Capacitive
Multi-touch Screen: Yes


USB: Yes
Headphone: Yes
DisplayPort: Yes

Built-in Devices

Built-in Devices: Speaker
Built-in Devices: Microphone
Built-in Devices: USB Hub
Built-in Devices: Webcam
Webcam: Yes
Microphone: Yes

Power Description

Input Voltage: 220 V AC
Input Voltage: 110 V AC

Physical Characteristics

VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color: Black
Height: 16.5"
Width: 26.5"
Depth: 2"
Weight with Stand (Approximate): 19.40 lb


Package Contents:

  • Helium PCT2785 27" Widescreen Multi-Touch Monitor
  • Power Cord
  • VGA Cable
  • HDMI Cable
  • USB Cable
  • Audio-in Cable
  • User's Guide
  • Cleaning Cloth
  • Stylus

Certifications & Standards:

  • UL/cUL
  • FCC
  • CE
  • TUV

Platform Supported: PC
Environmentally Friendly: Yes
Environmental Certification: RoHS


Limited Warranty: 3 Year
