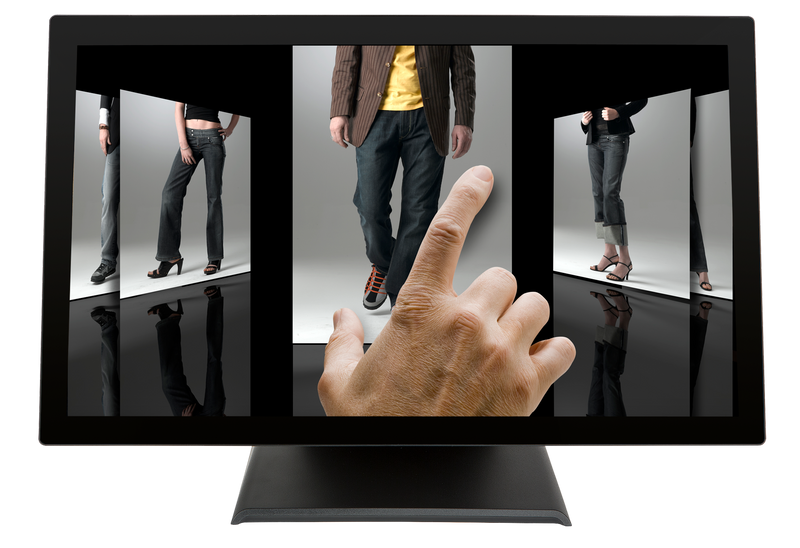

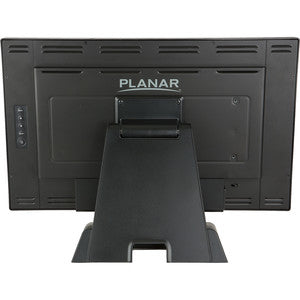

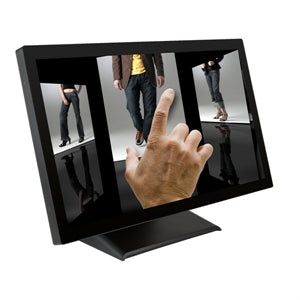

Planar Systems PT2245PW 21.5" 16:9 Multi-Touch LCD Monitor

$559.99

General Information

Manufacturer: Leyard
Manufacturer Part Number: 997-7416-00
Manufacturer Website Address: www.planar.com
Brand Name: Planar
Product Model: PT2245PW
Product Name: PT2245PW Touch Monitor
Marketing Information:

For image-conscious retail, hospitality, or healthcare establishments looking for a wide-format touch screen monitor, the Planar PT2245PW 22-inch monitor is optimized with multi-touch interactivity for displaying 16:9 content. With its ultra-thin profile and its sleek,edge-to-edge glass surface, the Planar PT2245PW provides the ultimate end-user experience.


Product Type: LCD Touchscreen Monitor

Technical Information

Screen Size Class: 22"
Viewable Screen Size: 22"
Screen Mode: Full HD
Response Time: 14 ms
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Adjustable Display Angle: Yes
Mount Type: Arm-mountable
Mount Type: Desk Mountable
Mount Type: Wall Mountable
Backlight Technology: Edge LED
Tilt Angle: -5°to90°
Features: OSD/Power Lock
Features: Security Lock
Features: Ultra Slim
Horizontal Frequency: 67.50 kHz

Video

Maximum Resolution: 1920 x 1080
Standard Refresh Rate: 75 Hz
Color Supported: 16.7 Million Colors
Contrast Ratio: 1,000:1
Brightness: 250 Nit

Touchscreen Information

Touchscreen: Yes
Touchscreen Type: Projected Capacitive
Multi-touch Screen: Yes

Interfaces/Ports

DVI: Yes
USB: Yes
VGA: Yes

Power Description

Input Voltage: 110 V AC
Input Voltage: 220 V AC
Operating Power Consumption: 26.40 W
Standby Power Consumption: 1.80 W
Off-Mode Power Consumption: 800 mW

Physical Characteristics

VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color: Black
Height: 13.8"
Width: 20.4"
Depth: 8.6"
Height with Stand: 12.30"
Width with Stand: 20.40"
Depth with Stand: 1.80"
Weight (Approximate): 11.02 lb

Miscellaneous

Package Contents:

  • PT2245PW Touch Monitor
  • DC Power Supply
  • Power Cord
  • VGA Cable
  • DVI-D Cable
  • USB Cable (A to B)
  • User's Guide
  • Quick Start Guide
  • Cable Cover
  • Screw


Certifications & Standards:

  • UL/c-UL
  • FCC-Class B
  • CE


Platform Supported: Mac
Platform Supported: PC
Environmentally Friendly: Yes
Environmental Certification: RoHS 2

Warranty

Limited Warranty: 3 Year
