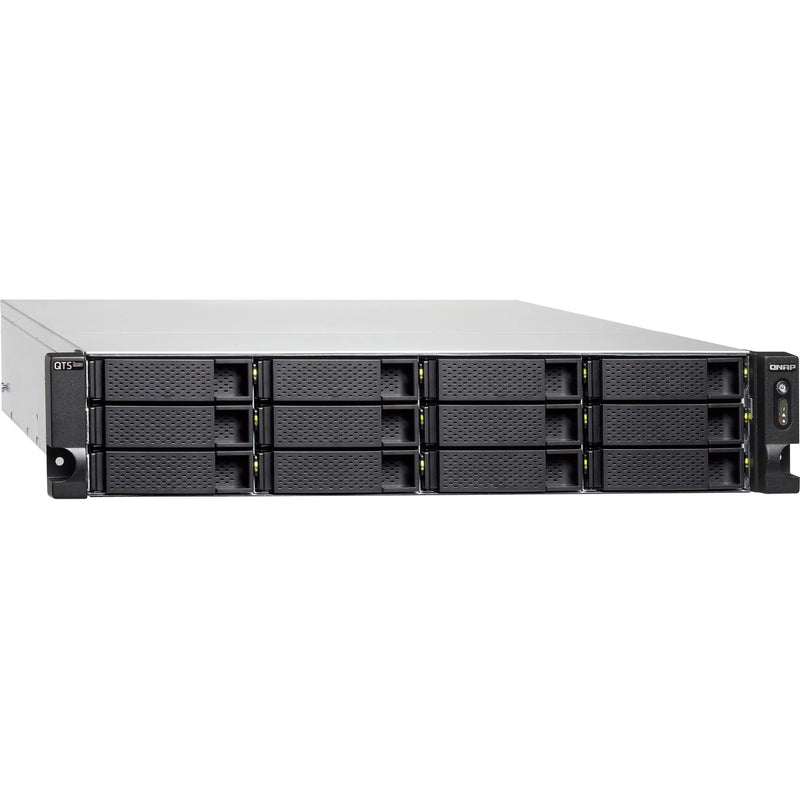

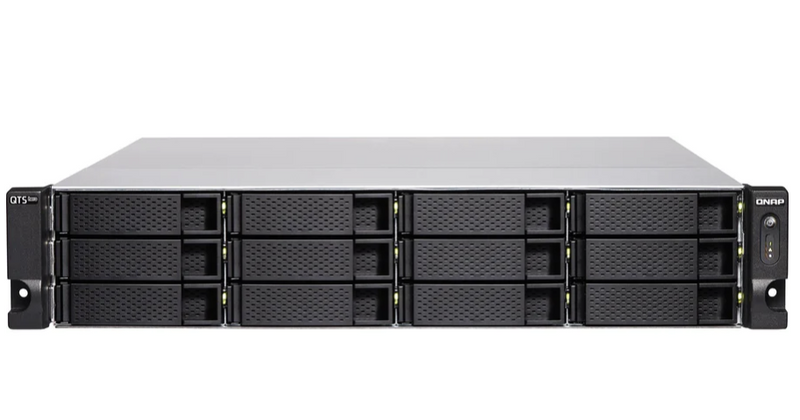

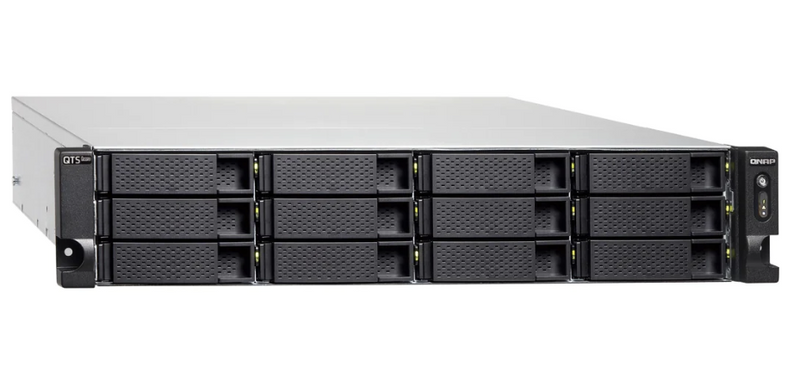

QNAP TS-H1283XU-RP-E2236-32G-US SAN/NAS Storage System


QNAP TS-H1283XU-RP-E2236-32G

The QTS hero NAS TS-h1283XU-RP is powered by an Intel® Xeon® E processor with up to 128 GB DDR4 Error Correcting Code (ECC) memory to deliver server-grade performance with dependable reliability. Running the brand new QTS hero operating system that incorporates ZFS, the TS-h1283XU-RP supports near-limitless snapshots, SnapSync, block-level inline data deduplication, and inline data compression. The TS-h1283XU-RP helps your business achieve reliable service-level agreement performance, whether in a mission-critical file server, virtualization server, VDI, collaborative video editing, or efficient file backup and recovery applications.

DDR4 ECC memory detects and then corrects single-bit memory errors, demonstrating high reliability for crucial applications.

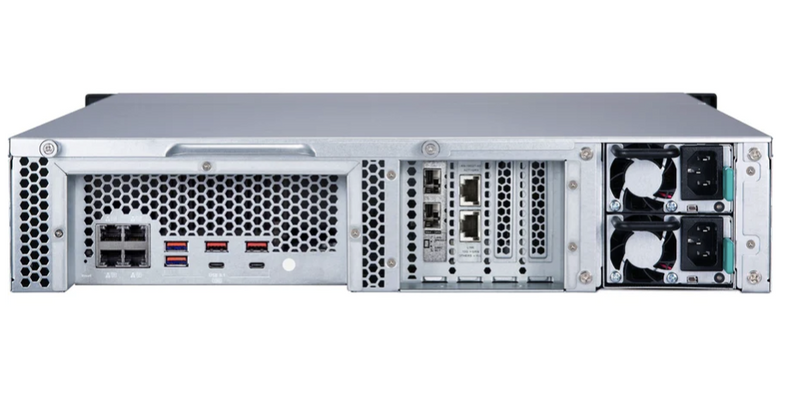

Pre-installed with a dual-port 10GbE RJ45 adapter and a dual-port 10GbE SFP+ adapter for bandwidth-demanding applications.

PCIe expandability allows for 10GbE/25GbE/40GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance.

SSD cache acceleration improves random read/write performance to meet IOPS-demanding applications.

Supports virtualization storage for VMware®, Citrix®, Microsoft® Hyper-V®, Windows Server® 2019, and hosts virtual machines and containers.

QTS App Center includes feature-rich apps for expanding NAS applications without extra costs.

Intel® Xeon® E processors deliver extraordinary performance

Powered by an Intel® Xeon® E-2236 6 cores/12 threads 3.4 GHz processor (Burst up to 4.8 GHz), the TS-h1283XU-RP features enormous computing power for boosting virtual machine performance. Combined with up to 128 GB DDR4 ECC memory and a redundant power supply, the TS-h1283XU-RP delivers server-grade performance and dependable reliability for rugged enterprise IT environments as a cost-efficient NAS solution.

ECC memory prevents data corruption to assure reliability

The TS-h1283XU-RP uses ECC memory that can detect and correct single-bit memory errors as they occur to prevent downtime and data loss, which is essential for always-on, mission-critical, server-grade applications. The TS-h1283XU-RP supports dual-channel DDR4 memory in four Long-DIMM slots. When using paired memory modules, the TS-h1283XU-RP can leverage the power of dual-channel architecture to boost performance. You also customize the TS-h1283XU-RP memory configuration (supports up to 128 GB RAM) for greater performance to tackle dynamically-changing workloads, such as virtualization applications.

Server-grade hardware: Sturdy and expandable

The TS-h1283XU-RP features outstanding hardware and expandable architecture, enabling optimal performance and flexibility to meet business application diversification demands.

The brand-new ZFS-based QTS hero operating system enhances NAS performance and data integrity

QTS hero operating system combines the app-based QTS with a 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QTS hero streamlines your business-critical tasks.

QNAP TS-H1283XU-RP-E2236-32G Tech Specs

General Information
Manufacturer: QNAP Systems
Manufacturer Part Number: TS-H1283XU-RP-E2236-32G
Brand Name: QNAP
Product Model: TS-h1283XU-RP-E2236-32G
Product Name: TS-h1283XU-RP-E2236-32G SAN/NAS Storage System
Product Type: SAN/NAS Storage System
Number of Hard Drives Supported: 12
Number of Hard Drives Installed: 0
Number of Solid State Drive Supported: 12
Number of Solid State Drive Installed: 0
Flash Memory Capacity: 5 GB
Processor & Chipset
Processor Manufacturer: Intel
Processor Type: Xeon
Processor Model: E-2236
Processor Core: Hexa-core (6 Core)
Processor Speed: 3.40 GHz
Standard Memory: 32 GB
Memory Technology: DDR4 SDRAM
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 12
Number of 2.5"/3.5" Bays: 12
Number of Total Expansion Slots: 6
Expansion Slot Type: PCI Express 2.0 x4
PCI Express 3.0 x4
PCI Express 3.0 x8
Controller Type: Serial ATA/600
Total Number of USB Ports: 6
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 6
Operating System: QTS hero
Management & Protocols
Protocols: iSCSI
Power Description
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 300 W
Physical Characteristics
Height: 3.5"
Width: 19"
Depth: 22.1"
Form Factor: Rack-mountable
Rack Height: 2U
Weight (Approximate): 25.90 lb
Country of Origin: Taiwan
