Rolls RLCRM82 8-Channel Mic/Line Mixer


When you need a space-saving solution for mixing multiple mic/line signals in conference rooms, houses of worship, or small-scale concert venues, consider the 1 RU rack-mountable Rolls RM82 eight-channel mixer. It features eight balanced 3-pin XLR microphone inputs with individually selectable 48 VDC phantom power to accommodate dynamic or condenser microphones. Plus, its eight unbalanced 1/4" TS inputs offer easy connectivity for line-level inputs or may be configured to function as inserts (for external processing) or direct outputs (for routing to a multitrack recorder). A mono RCA auxilliary input accepts an additional line input.

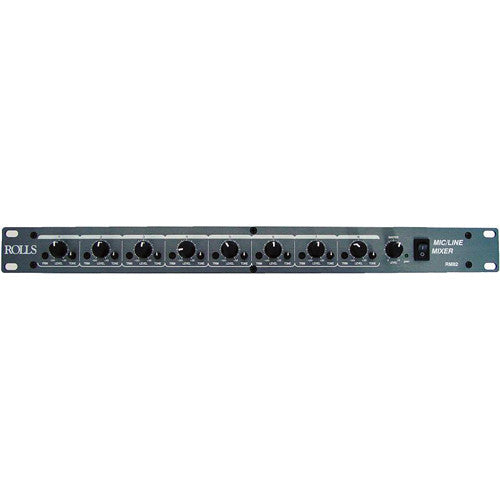

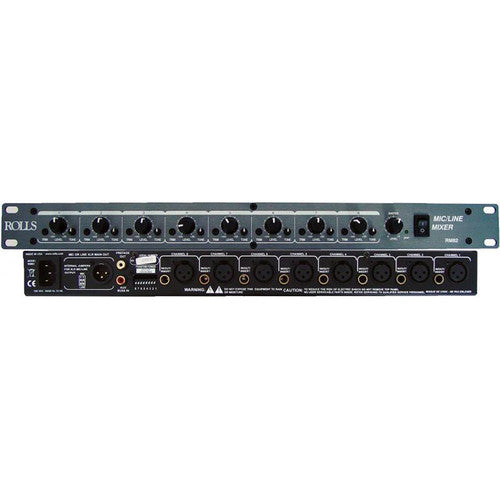

Adjustable trim, level knobs, and treble/bass cut circuits on each channel allow simple and efficient mixing control from the front panel. The summed mono output is fed through a master level control to a rear-panel XLR male connector. Plug the RCA output into an audio recorder to preserve a dedicated mix signal that is independent of the master level.

Eight balanced microphone inputs via 3-pin XLR female sockets
Eight unbalanced line inputs via 1/4" TS jacks
Each line input can be internally jumpered to function as a channel insert or direct output
Per-channel tone control cuts up to 12 dB of treble (above 6 kHz) or bass (below 200 Hz)
Adjustable trim and level on each channel
Line-level XLR main output can be switched internally to output mic-level signal
Ninth unbalanced input via mono RCA aux input jack
RCA pre-fader output is independent of the master level control
Connect the RCA pre-fader output to the RCA aux input of a second RM82 (available separately) to enable master level control of both devices from the first RM82
Dedicated power switch and LED power indicator
Rack-mountable enclosure occupies just 1 RU of rack space
Total # Of Inputs 8
Mic/Line Inputs 8 x 3-Pin XLR Female (Balanced)
8 x 1/4" TS (Unbalanced, Internally Switchable per Channel to Function as Insert or Direct Output)
AUX Sends None
AUX Returns None
ALT I/O 1 x RCA Coaxial Mono Aux Input
1 x RCA Coaxial Mono Pre-Fader Output
Monitor Outputs 1 x 3-Pin XLR Male (Internally Switchable from Line to Mic Level)
EQ Section Per-Channel Tone Control: Cut up to 12 dB of Treble above 6 kHz or Bass below 200 Hz
Solo/Mute No
Gain Range Mic: Up to 55 dB
Line: Up to 26 dB
Channel Level Control Per-Channel Level Knob
Trim/Gain Control Per-Channel Trim Knob
Master Level Knob
Phantom Power +48 VDC, Switchable per Channel
Metering None
Input Impedance XLR: 10 kOhms
1/4": 20 kOhms
RCA: 10 kOhms
Output Impedance 51 Ohms
Maximum Input Level Mic: 0 dBV
Line: +6 dBV
Maximum Output Level +22 dBV
Frequency Response Not Specified by Manufacturer
Phase Shift <10° (20 Hz to 20 kHz)
Signal-to-Noise Ratio 106 dB
Total Harmonic Distortion (THD) <0.009%
CMRR >80 dB (Mic)
Power Supply 120 VAC, 50/60 Hz, 15 VA
Dimensions (W x H x D) 19.0 x 1.8 x 6.0" / 48 x 4.5 x 15 cm
Weight 7 lb / 3.2 kg
Packaging Info
Package Weight 5.65 lb
Box Dimensions (LxWxH) 21.654 x 8.189 x 3.858"
