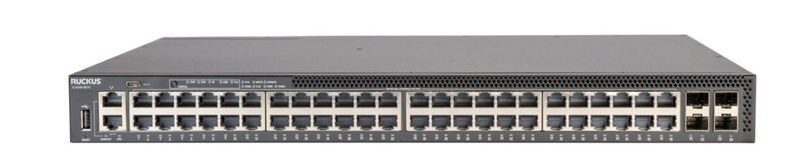

RUCKUS ICX8200-48ZP2 Switch Entry-Level+ Access 48 Ports Multigigabit PoE Dual PSU Switch

RUCKUS ICX8200-48ZP2 Switch Entry-Level+ Access 48 Ports Multigigabit PoE Dual PSU Switch

$9,900.00

Overview:

The RUCKUS ICX fixed form-factor switch series works together to deliver a simple secure and scalable highperformance network solution supporting today’s most demanding networking needs

The RUCKUS ICX 8200 Switch series is purposely designed to handle next generation wireless first and IoT campus networks. These intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price without compromising performance and reliability.

The RUCKUS ICX 8200 raises the bar with up to 8× 25 GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features and market-leading stacking density with up to 12 switches per stack. In addition, the RUCKUS ICX 8200 combines enterprise-class features, manageability, performance, and reliability with the flexibility, costeffectiveness, and “pay as you grow” scalability of stackable solution.

Features SPECIFICATIONS
Connector options
  • 10/100/1000 Mbps RJ-45
  • 1/2.5 Gbps RJ-45
  • 1/2.5/5/10 Gbps RJ-45
  • 1 Gbps SFP ports
  • 1/10 Gbps SFP+ ports
  • 1/10/25 Gbps SFP28 ports
  • Out-of-band Ethernet management: 10/100/1000 Mbps RJ-45
  • Console management: RJ45 serial port and USB Type-C port with serial communication device class support
  • File transfer: USB port, standard-A plug
DRAM
NVRAM (eMMC)
Packet buffer size
  • 4 GB
  • 8 GB
  • 4 MB
Maximum MAC addresses
  • 32K
Maximum VLANs
Maximum PVLANs
  • 4,095
  • 32
Maximum STP
(spanning trees instances)
  • 253
Maximum VEs
  • 512
Maximum ARP entries
  • 8192
Maximum routes (in hardware)
  • 16k IPv4, 4k IPv6
  • Next hop address: 8k
Trunking
  • Maximum ports per LAG : 8
  • Maximum Link Aggregation Groups : 128
Maximum jumbo frame size
  • 9,216 bytes
QoS priority queues
  • 8 per port
Multicast groups
  • 4096 (Layer2 IGMP) 512 (Layer2 MLD)
  • 4096 (IPv4 PIM) 512 (IPv6 PIM)
Quality of Service (QoS
  • ACL Mapping and Marking of ToS/DSCP (CoS)
  • ACL Mapping and Marking of 802.1p
  • ACL Mapping to Priority Queue
  • Classifying and Limiting Flows Based on TCP Flags
  • DiffServ Support
  • Honoring DSCP and 802.1p (CoS)
  • MAC Address Mapping to Priority Queue
  • Priority Queue Management using Weighted Round Robin
  • (WRR), Strict Priority (SP), and a combination of WRR and SP
Traffic management
  • ACL-based inbound rate limiting and traffic policies
  • Broadcast, multicast, and unknown unicast rate limiting
  • Inbound rate limiting per port
  • Outbound rate limiting per port and per queue
Security
  • 802.1X authentication
  • MAC authentication
  • Flexible authentication
  • Web authentication
  • DHCP snooping
  • Dynamic ARP inspection
  • Neighbor Discovery (ND) Inspection
  • Bi-level Access Mode (Standard and EXEC Level)
  • EAP pass-through support
  • IEEE 802.1X username export in sFlow
  • Protection against Denial of Service (DoS) attacks
  • Authentication, Authorization, and Accounting (AAA)
  • MAC Address Locking MAC Port Security
  • Advanced Encryption Standard (AES) with SSHv2
  • RADIUS/TACACS/TACACS+
  • Secure Copy (SCP)
  • Secure Shell (SSHv2)
  • Protected Ports
  • Local Username/Password
  • Change of Authorization (CoA) RFC 5176
  • Trusted Platform Module
  • RADSEC (RFC 6614)
  • Encrypted Syslog (RFC 5425
SDN features
  • OpenFlow1 v1.0 and v1.3
  • Operates with OpenDayLight Controller
  • OpenFlow hybrid port mode (Supports both OpenFlow traffic forwarding and regular traffic forwarding on the same port)
High availability
  • Layer 3 VRRP/VRRP-E protocol redundancy
  • Real-time state synchronization across the stack
  • Hitless failover and switchover from master to standby stack controller
  • Hot insertion and removal of stacked units
  • Layer 2 VSRP switch redundancy
  • In Service Software Update (ISSU)
Layer 2 feature set
  • 802.1s Multiple Spanning Tree
  • 802.1x Authentication
  • Auto MDI/MDIX
  • BPDU Guard, Root Guard
  • Dual-Mode VLANs
  • MAC-based VLANs, Dynamic MAC-based VLAN activation
  • Dynamic VLAN Assignment
  • Dynamic Voice VLAN Assignment
  • Fast Port Span
  • GVRP : GARP VLAN Registration Protocol
  • IGMP Snooping (v1/v2/v3)
  • IGMP Proxy for Static Groups
  • IGMP v2/v3 Fast Leave
  • Inter-Packet Gap (IPG) adjustment
  • Link Fault Signaling (LFS)
  • MAC Address Filtering
  • MAC Learning Disable
  • MLD Snooping (v1/v2)
  • Multi-device Authentication
  • Per-VLAN Spanning Tree (PVST/PVST+/PRST)
  • Mirroring: Port-based, ACL-based, MAC Filter-based, and
  • VLAN-based
  • PIM-SM v2 Snooping
  • Port Loop Detection
  • Private VLAN
  • Remote Fault Notification (RFN)
  • Single-instance Spanning Tree
  • Trunk Groups (static, LACP)
  • Uni-Directional Link Detection (UDLD)
  • Metro-Ring Protocol (MRP) (v1, v2)
  • Virtual Switch Redundancy Protocol (VSRP)
  • Q-in-Q and selective Q-in-Q
  • VLAN Mapping
  • Topology Groups
Base Layer 3 IP routing feature set
  • IPv4 and IPv6 static routes
  • RIP v1/v2, RIPng
  • ECMP
  • Port-based Access Control Lists
  • Layer 3/Layer 4 ACLs
  • Host routes
  • Virtual Interfaces
  • Routed Interfaces
  • Route-only Support
  • Routing Between Directly Connected Subnets
Premium Layer 3 IP routing feature set with software license
  • IPv4 and IPv6 dynamic routes
  • OSPF v2, v3
  • PIM-SM, PIM-SSM, PIM-DM, PIM passive (IPv4, IPv6)
  • PBR
  • Virtual Route Redundancy Protocol VRRP (IPv4)
  • VRRP v3 (IPv6)
  • VRRP-E(IPv4/IPv6)
  • VRF (IPv4 and IPv6
  • GRE


Features Standard Compliance
IEEE standards compliance
  • 802.1AB LLDP/ LLDP-MED
  • 802.1D MAC Bridging
  • 802.1p Mapping to Priority Queue
  • 802.1s Multiple Spanning Tree (MST)
  • 802.1w Rapid Reconfiguration of Spanning Tree (RSTP)
  • 802.1x Port-based Network Access Control (PNAC)
  • 802.3 Carrier Sense Multiple Access/Collision Detection
  • (CSMA/CD)
  • 802.3ab 1000BASE-T
  • 802.3 10Base-T
  • 802.3ad Link Aggregation (Dynamic and Static)
  • 802.1 AX-2008 Link Aggregation
  • 802.3ae 10 Gigabit Ethernet
  • 802.3af Power over Ethernet
  • 802.3at Power over Ethernet Plus
  • 802.3bz Multigigabit Ethernet
  • 802.3u 100Base-TX
  • 802.3x Flow Control
  • 802.3z 1000Base-SX/LX
  • 802.3 MAU MIB (RFC 2239)
  • 802.1Q VLAN Tagging
  • 802.1BR Bridge Port Extension
  • 802.3az Energy Efficient Ethernet
  • 802.3bt PoE++


Features Feature Sets
Management
  • DHCP Auto-Configuration
  • Configuration Logging
  • Digital Optical Monitoring
  • Display Log Messages on Multiple Terminals
  • Embedded Web Management (HTTP/HTTPS)
  • Embedded DHCP Server
  • Industry-standard Command Line Interface (CLI)
  • RUCKUS SmartZone, RUCKUS Cloud*, RUCKUS Unleashed*
  • CLI activation of optional software features
  • USB file management and storage
  • Macro for batch execution
  • Out-of-band Ethernet Management
  • RSPAN
  • TFTP
  • TELNET Client and Server
  • SSH / SSH V2
  • Bootp
  • SNMPv1/v2c
  • DHCP Server and DHCP Relay
  • SNMPv3 Intro to Framework
  • Architecture for Describing SNMP Framework
  • SNMP Message Processing and Dispatching
  • SNMPv3 Applications
  • SNMPv3 User-based Security Model
  • SNMP View-based Access Control Model SNMP
  • sFlow
  • Network Time Protocol (NTP)
  • Multiple Syslog Servers
  • SCP
  • Virtual Cable Tester (VCT)


Features Environment
Ambient Temperature
  • Operational: 0°C to 45°C (32°F to 113°F) at sea level
  • Non-operational: 40°C to 70°C (-40°F to 158°F)
Relative Humidity
(non-condensing)
  • Operational: 10% to 90% at 50°C (122°F)
  • Non-operational: 10% to 90% at 70°C (158°F)
Altitude
(above sea level)
  • Operational 0 to 3,048 m (10,000 ft)
  • Non-operational: 0 to 12,000 m (39,370 ft)


Features Compliance/Certification
Electromagnetic emissions
  • FCC Part 15, Subpart B (Class A)
  • EN 55032 (CE mark) (Class A)
  • EN 55035 (CE mark) (Immunity) for Information Technology Equipment
  • EN 55024 (CE mark) (Immunity) for Information Technology Equipment
  • ICES-003 (Canada) (Class A)
  • AS/NZ 55032 (Australia/New Zealand) (Class A)
  • VCCI (Japan) (Class A)
  • EN 300 386
  • CNS 15936-1 (BSMI) (Taiwan) (Class A)
  • KN 32 (South Korea) (Class A)
  • KN 35 (South Korea) (Class A)
  • TCVN 7189 / TCVN 7317 (Vietnam) (Class A)
  • EN 61000-3-2
  • EN 61000-3-3
Safety
  • CAN/CSA-C22.2 No. 62368-1/UL 62368-1 - Safety of Information Technology Equipment
  • EN 60825 Safety of Laser Products - Part 1: Equipment Classification, Requirements and User’s Guide
  • EN 60950-1/IEC 60950-1/EN 62368-1/EC 62368-1 Safety of Information Technology Equipment
  • CNS 15598-1 (BSMI) (Taiwan)
Environmental regulatory compliance
  • 2014/35/EU and 2014/30/EU
  • 2011/65/EU – Restriction of the use of certain hazardous substance in electrical and electronic equipment (EU RoHS)
  • 2012/19/EU – Waste electrical and electronic equipment (EU WEEE)
  • 94/62/EC – packaging and packaging waste (EU)
  • 2006/66/EC – batteries and accumulators and waste batteries and accumulators (EU battery directive)
  • 1907/2006 of the European Parliament and of the Council of 18 December 2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (EU REACH)
  • Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act of 2010 – U.S. Conflict Minerals
  • 30/2011/TT-BCT – Vietnam circular
  • SJ/T 11363-2006 Requirements for Concentration Limits for Certain Hazardous Substances in EIPs (China)
  • SJ/T 11364-2006 Marking for the Control of Pollution Caused by EIPs (China)
  • CNS 15663 (BSMI) (Taiwan)
Vibration
  • IEC 68-2-36, IEC 68-2-6
Shock and drop
  • IEC 68-2-27, IEC 68-2-32
TAA (Trade Agreement Act)
  • All ICX 8200 SKUs are TAA compliant
