Silarius SIL-P2P900MB16500FT58GHZ Outdoor CPE P2P 5.8GHz 900Mbps - Pair (Up to 5Km/16,500ft)

$89.99

SIL-P2P900MB16500FT58GHZ is an high power 5.8G outdoor CPE/WiFi Bridge with 900Mbps data rate. Comply with IEEE802.11a/n/ac standard, Atheros chipset, it supply you a stable and freely wifi networking. What’s more, with 14dBi high gain antenna, 600mW high power output power, the wifi distance more than 5000 meters.

SIL-P2P900MB16500FT58GHZ with wonderful RF performance, receive sensitivity can be -92dBm, then comply with 5G standard, improved hardware wifi interference, it is best choice for video and security industrial.

Meantime, it support Power over Ethernet, support passive PoE, easy in setup even no power socket nearby. With LED light show signal strength, easy to find a suitable place for outdoor CPE, save much human work and cost. With water proof case, it is best choice for outdoor wifi projects.

ABS waterproof, dust proof and sunscreen shell, temperature adaptive and board protective .

SIL-P2P900MB16500FT58GHZ with ABS waterproof, dust proof and sunscreen shell, avoid the damage from dust, thunderstorm weather. Meantime, it adaptive to various environment, the working temperature can be normal at -30℃ to 65℃. Suit for any country.



900Mbps high speed, Atheros industrial chipset, wider application

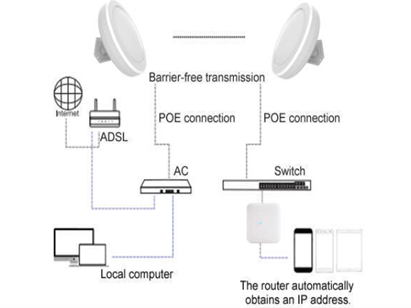

SIL-P2P900MB16500FT58GHZ comply with IEEE 802.11a/n/ac standard, 900Mbps high speed, with Atheros industrial solution, it is a wifi bridge with low power consumption, strong security. With PTP, PTMP, bridge operation mode, widely be used in voice, video, data transmission in long range wireless monitor industrial.



600mW High Power, 14dBi High Gain Antenna, Long Range wifi Device in market.

SIL-P2P900MB16500FT58GHZ with external power amplifier, 600mW true power, 14dBi high gain antenna, the wifi range is more than 5000 meter, it is the device with very stable performance in long range, but competitive in price.



5.8GHz frequency, faster, lower latency, higher stability

SIL-P2P900MB16500FT58GHZ with frequency of 5.180~5.825GHz, with wireless backbone channel of Europe, Japan, China, it avoid the same frequency interference problem, full meet with data transmission in fast speed, low delay, high stability requirement in wireless monitor.



Support Power over Ethernet, cost save

The device has integrated  Power over Ethernet (PoE) for easy installation and lower cost, with 24V PoE, it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.



Easy configure, multi function, remote control

SIL-P2P900MB16500FT58GHZ with humanized configuration steps, simple to complete the entire system configuration, supply more efficient service for your networking.

SIL-P2P900MB16500FT58GHZ support IP bandwidth control, DDNS, firewall, traffic statistics, watchdog, restart in a limited time, together with remote control in restart device and restore to default.



Model

SIL-P2P900MB16500FT58GHZ

Hardware Specifications

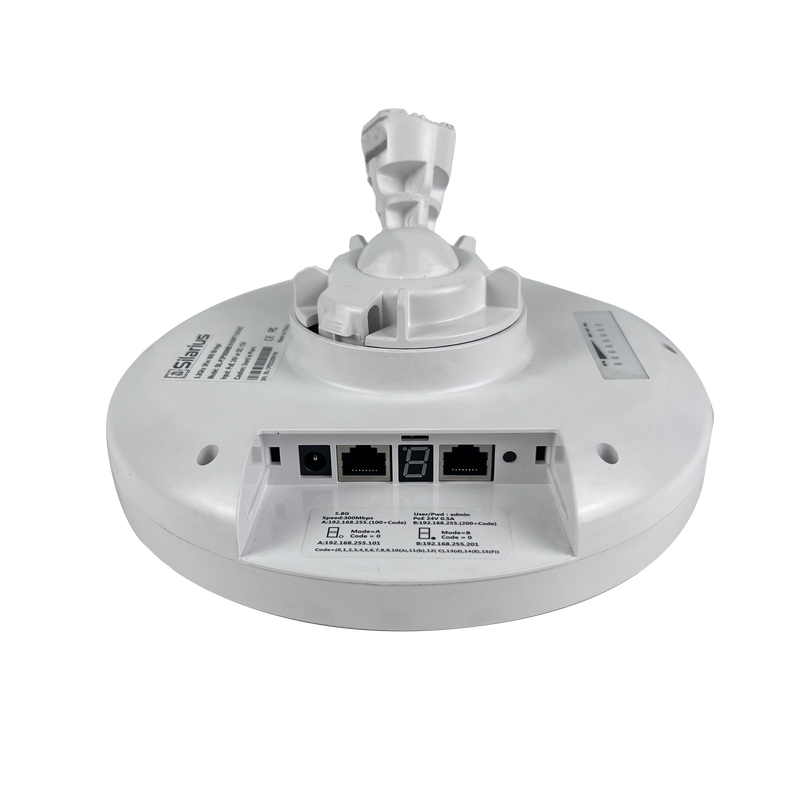

Interface

WAN/LAN PoE 10/100/1000Mbps RJ45

Button

1*Reset Button, Long press to reset, short press to adjust digital display number

Power Consumption

<12W

Power Supply

POE:24V 0.5A,DC:12V 1A

working environment

Temperature:-40℃~+75℃(operating),-40℃ ~+80℃(storage)Humidity(no-condensing):5%~90%(operating),5%~95%(storage)

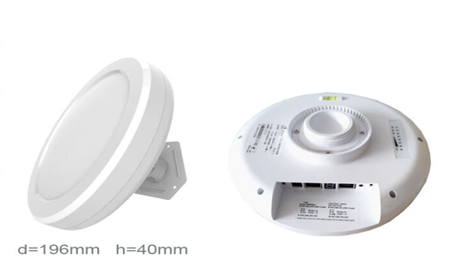

Size

R-98mm  D-40mm

Weight

0.8KG

Radio frequency Feature

Frequency

5.180 - 5.825 GHz

Modulation

OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK

Data Rate

11az: up to 900Mbps(dynamic);11n: up to 300Mbps(dynamic)11a: up to 54Mbps(dynamic)

Protocol

CSMA/CA、CSMA/CD、TCP/IP、ICMP、NAT、DHCP , Wired static , Wifi Client , UDP, DDNS、

Standard

IEEE802.3, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11a

Security

64/128bit WEP  WPA  WPA2  WPS

RF Output Power

802.11n:MCS7 19±2 DB, MCS0 22±2DB.802.11a:54M 20±2DB,6M 23±2DB.

Receive Sensitivity

802.11n: -68dbm@MCS7; -88dbm@MCS7;802.11a: -72dbm@54Mbps; -92dbm@6Mbps;

Antenna

14dBi MIMO Panel antenna

Data of 14dBi Panel Antenna

Frequency range(MHz)

5150~5850

Bandwidth(MHz)

900

Polarization

Vertical and Horizontal

Gain(dBi)

2×14

Half-power beam width(°)

Vertical

Input Impedance(Ω)

50

VSWR

≤1.8

Software Feature

Working Mode

Router, Universal Repeater, WISP, AP and Repeater

Users

64

Network

Controller address /DHCP/ static IP

System

Restore factory/system restart.
