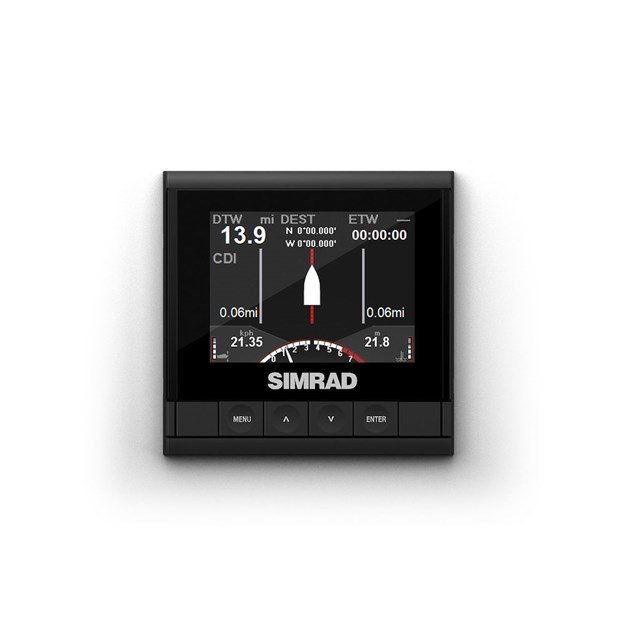

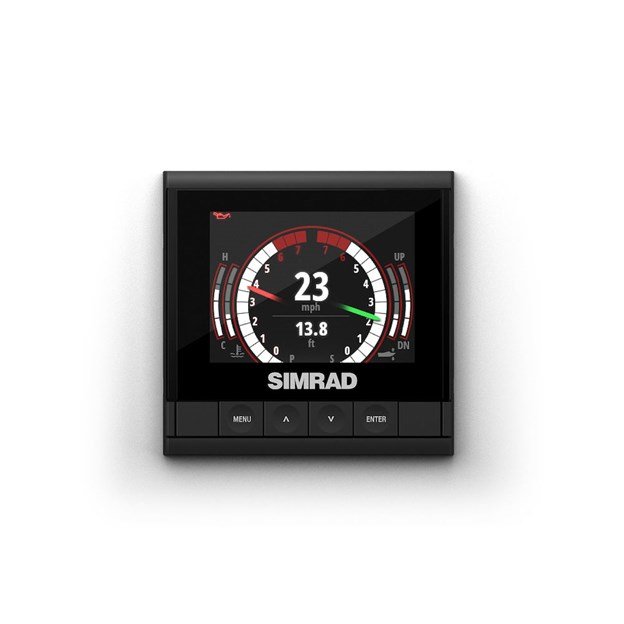

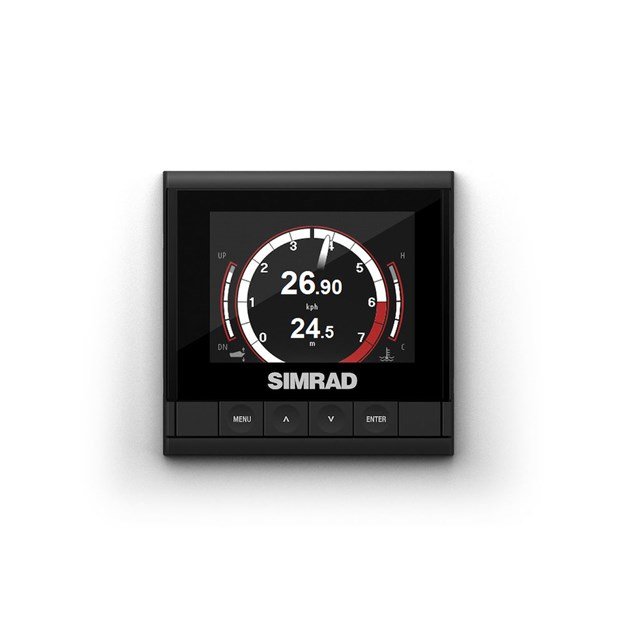

Simrad IS35 Digital Gauge
Bright, clear, and easily visible day or night, the IS35 offers a smart interface to engine data, fuel efficiency, depth history and more. Connected to your vessel’s NMEA 2000 network, the IS35 automatically detects and displays the most relevant information available on a series of pre-set and user-customizable data pages. With an installation cutout matching traditional analogue gauges, the IS35 is a hassle-free upgrade for any new build or refit.
The IS35 features a 3.5-inch optically bonded LCD display with clear 320x240-pixel resolution and bright LED backlight. White ‘day’ mode provides high brightness and contrast for use in full sunlight, while red ‘night’ mode offers more subtle illumination for use in low-light conditions.
Data is displayed on the IS35 as a series of pages, with pre-set pages for engine monitoring, fuel economy, cruising, steering, and depth history. A simple four-button interface makes it easy to switch between pages, change brightness quickly to reflect the conditions, and modify other settings on the go.
When connected to the NMEA 2000 network aboard your boat, the IS35 automatically detects other connected equipment including engines; fuel flow, engine temperature, and water pressure sensors; GPS receivers; depth transducers; and much more. The IS35 automatically displays the most relevant information available on its pre-set data pages, eliminating the need for a complicated and time-consuming setup process.
The IS35 is designed to fit standard 85mm (3 3/8”) circular cut-outs, for direct replacement of traditional analogue speed or RPM gauges. Surface-mounted, it has a low 8mm profile, matching the stylish Glass Bridge design of our NSS evo2 multifunction displays. The IS35 can also be flush mounted using an optional rear-mounting bracket. Electrical installation is simple, with both power and data over a single NMEA 2000 cable.

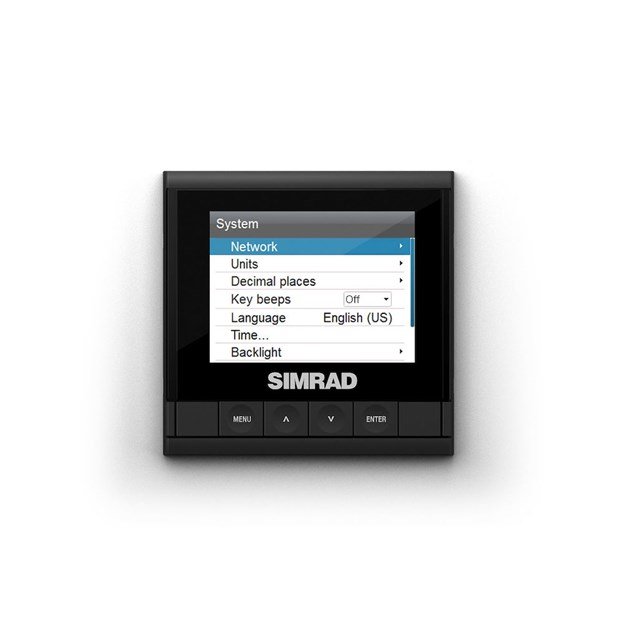

The IS35 is designed to automatically display the most relevant data available from your vessel’s NMEA 2000 connected engines and sensors. However, you’re free to customize its pre-set data pages to display your choice of information from any NMEA 2000-connected devices aboard. Easily create your own pages incorporating analogue-style gauges, bar graphs, and digital displays, in a variety of layouts, to suit your needs at the helm.
Pre-set pages include: Engine monitoring, fuel economy, cruising, steering, and depth history.
Features:
- Bright, full-color optically bonded LCD display
- Simple button-driven menus
- Automatically displays data from NMEA 2000 engines and sensors
- Monitor up to two engines per gauge
- Pre-set pages for engine monitoring, fuel economy, cruising, steering, and depth history
- Easily customize pages
- Stylish-low-profile design
- Surface or flush-mount
- Single-cable installation
