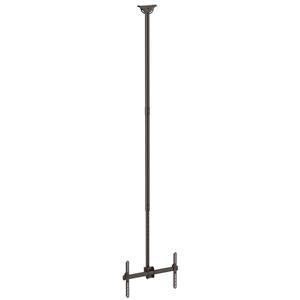

Ceiling TV Mount - 8.2' to 9.8' Long Pole - 32 to 75" TVs


General Information

Manufacturer Part Number: FPCEILPTBLP
Manufacturer Website Address:
Brand Name:
Product Name: Ceiling TV Mount - 8.2' to 9.8' Long Pole
Marketing Information: This ceiling TV mount supports VESA mount compatible TVs from 32"" to 75"" in size, with a weight capacity of up to 110 lb. (50 kg). It lets you save wall and floor space by hanging your flat-panel LCD, LED or plasma TV from the ceiling in a prominent area.

The ceiling mount is ideal for use in lobbies, entrances or other areas with high ceilings.

Adjustable Height

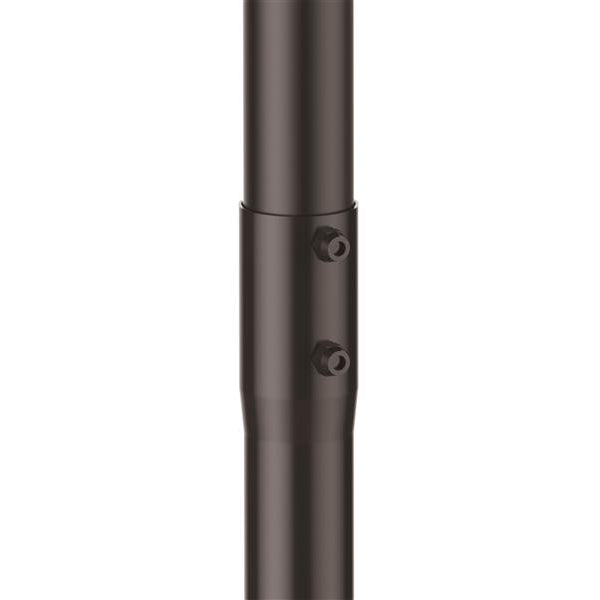

With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling. This works well with a range of ceiling heights. The steel pole can extend from 8.2 to 9.84 ft. (2.5 to 3 m), with a total lift (height extension) of 19.6"" (.5 m).

Swivels to Suit Your Ceiling

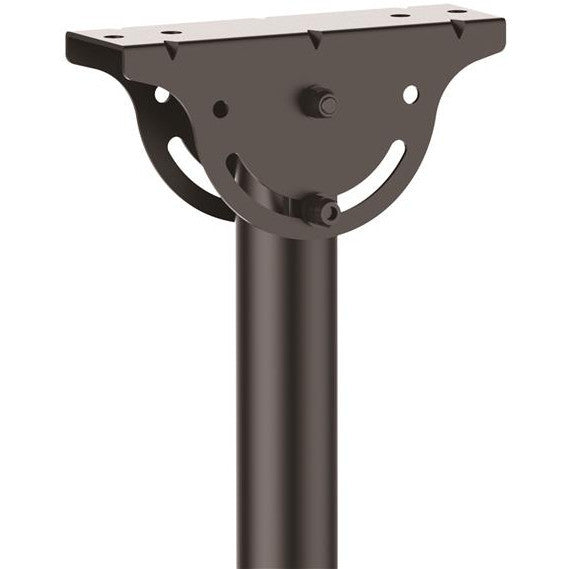

The flat-screen ceiling mount accommodates a wide variety of ceiling types. You can swivel the TV to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to 60 degrees), and pitched or horizontal (flat) ceilings.

Viewable from Any Direction

You can adjust your TV to create a comfortable viewing angle, by tilting it up to -25 degrees down towards your audience for optimum visibility. Plus, the full-motion mount lets you swivel your display around the pole + 180 / - 180 degrees, without using tools.

Hook-and-Mount Design

Simply attach the included vertical brackets, with built-in hooks, to the back of your TV. Once attached, hang your TV securely onto the ceiling mount. The preset leveling adjustments ensure ideal positioning after hanging.

FPCEILPTBLP is backed by a 5-year warranty and free lifetime technical support.

More from the Manufacturer

Product Type: Ceiling Mount

Product Information

Device Supported: Flat Panel Display
Number of Displays Supported: 2
Maximum Load Capacity: 220.46 lb
Maximum Screen Size Supported: 70"

Physical Characteristics

Color: Black
VESA Mount Standard: 200 x 200
VESA Mount Standard: 300 x 300
VESA Mount Standard: 400 x 200
VESA Mount Standard: 600 x 400
VESA Mount Standard: 400 x 400
Height: 10.6 ft
Width: 17.1"
Length: 26.8"
Weight (Approximate): 22.05 lb


Package Contents:

  • 1 x TV Mount
  • 2 x Vertical Brackets
  • 1 x Horizontal Bracket
  • 2 x M8x55 mm Screws
  • 2 x M8x60 mm Screws
  • 4 x Nuts
  • 1 x Wrench
  • 1 x Hex Key
  • 1 x Mounting Template
  • 4 x M5x14 mm Screws
  • 4 x M6x14 mm Screws
  • 4 x M6x30 mm Screws
  • 4 x M8x30 mm Screws
  • 4 x M8x50 mm Screws
  • 4 x Rectangular Washers
  • 8 x Small Spacers
  • 8 x Large Spacers
  • 4 x Screws
  • 4 x Concrete Anchors
  • 4 x Circular Washers
  • 1 x Instruction Manual

Environmentally Friendly: Yes
Environmental Certification: RoHS


Limited Warranty: 5 Year
