General Information
Manufacturer: Tripp Lite
Manufacturer Part Number: SUINT3000RTXL2U
Manufacturer Website Address: www.tripplite.com
Brand Name: Tripp Lite
Product Line: SmartOnline
Product Model: SUINT3000RTXL2U

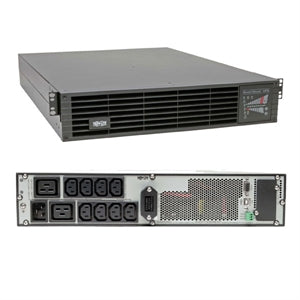

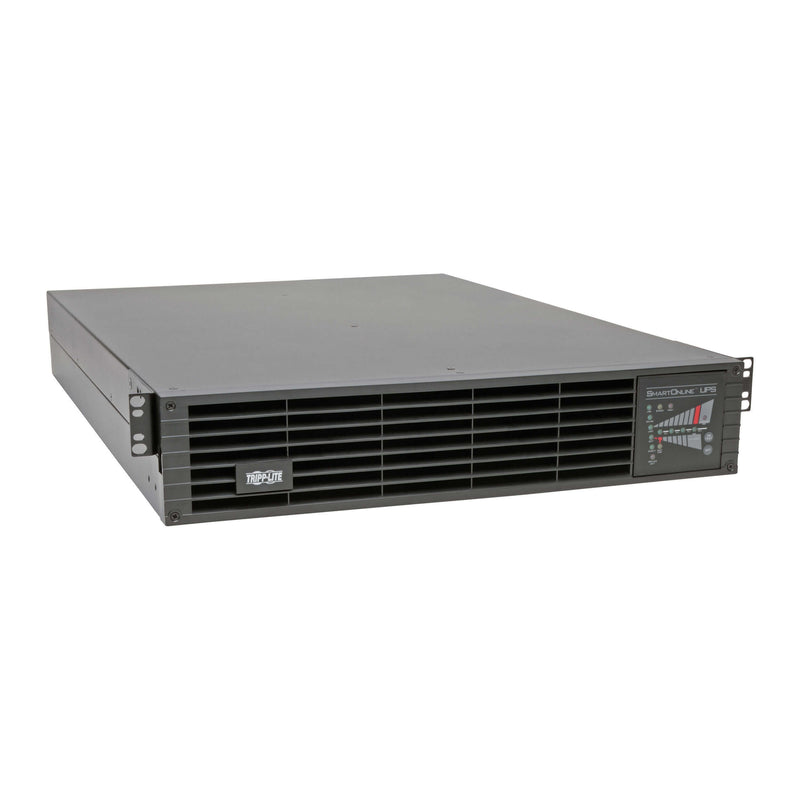

Product Name: SmartOnline SUINT3000RTXL2U 3000 VA Tower/Rack Mountable UPS
Marketing Information:
3000VA / 3kVA / 2500 watt on-line, double-conversion UPS system for critical server, network and telecommunications equipment. 2U rackmount form factor with an installed depth of only 66cm (26 inches). Full time sine wave 200/208/220/230/240V output with +/-2% voltage regulation. UPS actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 120V and overvoltages to 288V. C20 inlet accepts a wide variety of optional cordsets. C19 and C13 output receptacles. Network management interfaces include USB port, DB9 serial port and SNMPWEBCARD slot. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Multi-stage metered current monitoring and battery charge status LEDs.
Product Type: Dual Conversion Online UPS
Technical Information
Receptacles: 10
Bypass Switch: Automatic
Emergency Power OFF: Yes
Transfer Time: 0 ns
Power Description
Load Capacity: 3000 VA/2500 W
Input Voltage: 220 V AC
Output Voltage: 220 V AC
Output Voltage: 230 V AC
Output Voltage: 240 V AC
Output Voltage: 208 V AC
Input Current: 15 A
Management
Network Management: SNMP Manageable
Interfaces/Ports
Serial Port: Yes
USB: Yes
Battery Information
Backup/Run Time (Full Load): 6 Minute
Backup/Run Time (Half Load): 15 Minute
Typical Battery Recharge Time: 4.80 Hour
Hot Swappable: Yes
Physical Characteristics
Height: 3.5"
Width: 17.3"
Depth: 26"
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 78.30 lb
Miscellaneous
Package Contents:
- SmartOnline SUINT3000RTXL2U 3000 VA Tower/Rack Mountable UPS
- 4 Post Rackmount Installation Brackets
- C19 to C20 Power Cable
- PowerAlert Software CD
- USB Cable
- Serial Cable
- Owner's Manual with Warranty Information
Additional Information:
Input Receptacle: C20
Output Receptacles:
Certifications & Standards:
- UL1778
- FCC Part 15 Category A (EMI)
- TAA Compliant
Software Included: PowerAlert Software
Environmentally Friendly: Yes
Environmental Certification: RoHS
Warranty
Limited Warranty: 2 Year
