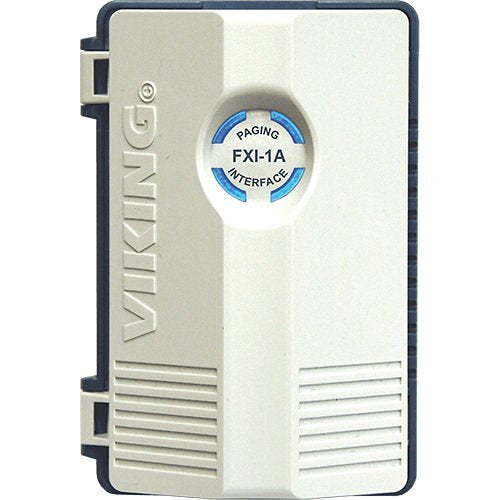

Viking FXI-1A Universal Smart Paging Interface

$200.00
  • Select: FXO (loop start), FXS (ring trip) or paging port (VOX relay) interface mode
  • No power supply required in FXS interface mode
  • 30VDC talk battery for interfacing with FXO or unused phone system line input / trunk port

Viking's FXI-1A universal paging interface allows you to provide paging from virtually any type of phone system instead of from a microphone. You can also provide background music and electronic night bell over the audio system.

The FXI-1A provides 30V talk battery for interfacing with an FXO or unused analog line input / trunk port. With the flip of a switch, the unit can connect to an FXS or PABX station ring trip port; no power supply is required in this mode. In the event that it must be connected to a "dry" 600 Ohm paging port, the built-in voice activation (VOX) is in control. This configuration is useful when interfacing with systems that do not provide a paging contact closure, such as Panasonic, South Western Bell, Intertel, etc.

In all modes the FXI-1A provides SPDT relay contacts to activate the central paging amplifier equipment or connect to an external background music source. After paging, the FXI-1A auto disconnects on CPC, busy signal, silence or page timer. An electronic night bell over paging feature can be activated from a momentary phone system contact closure (FXO and page port mode only).

Main Features
  • Select: FXO (loop start), FXS (ring trip) or paging port (VOX relay) interface mode
  • No power supply required in FXS interface mode
  • 30VDC talk battery for interfacing with FXO or unused phone system line input / trunk port
  • Floating 600 Ohm paging output with volume control
  • SPDT relay for external paging amp activation or interfacing the paging amp with an external background music source
  • Pre-page alert tone (on/off)
  • Compatible with 24V to 48VDC FXS operation
  • Calling party control (CPC) detection for immediate disconnect
  • Busy signal detect disconnect
  • Adjustable silence disconnect time, 2.5 to 10 seconds or disabled
General Information
Name: Viking FXI-1A Universal Smart Paging Interface, Viking Electronics, Inc, Viking Electronics
Category: Viking Electronics, Communications, Intercoms & Telephone Entry, Intercom & Entry Accessories
