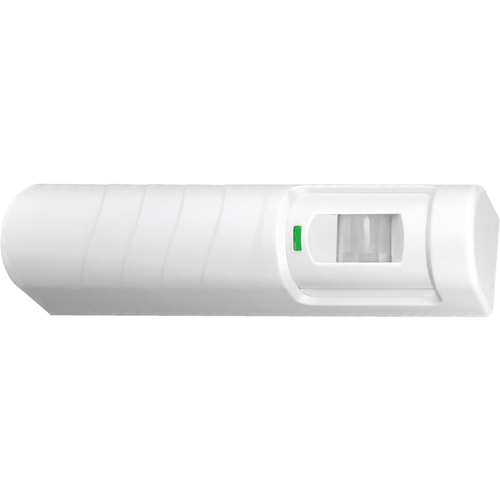

W-Box Technologies 0E-RXDST REQUEST TO EXIT DETECTOR SEQUENTIAL TRIGGERING/GRA

Main Features

• Voltage input: 12 VDC or VAC; 24 VDC or 24VAC
• Current draw: 16mA @ 12VDC (see Current Ratings on page 4)
• NO INTERNAL BATTERY. Budget 38mAh per hour standby
• REX detector output: 2 Form C relay contacts rated 2A 30VDC/VAC maximum for DC resistive loads
• Indicator: Green LED for PIR detection

• Relay latch duration: Adjustable from 0.5 second to 64 seconds
• Timer modes: Selectable for resettable (cumulative) or non-resettable (counting)
• Power loss operation modes: Selectable for fail safe (doors unlocked) or fail secure (doors locked)
