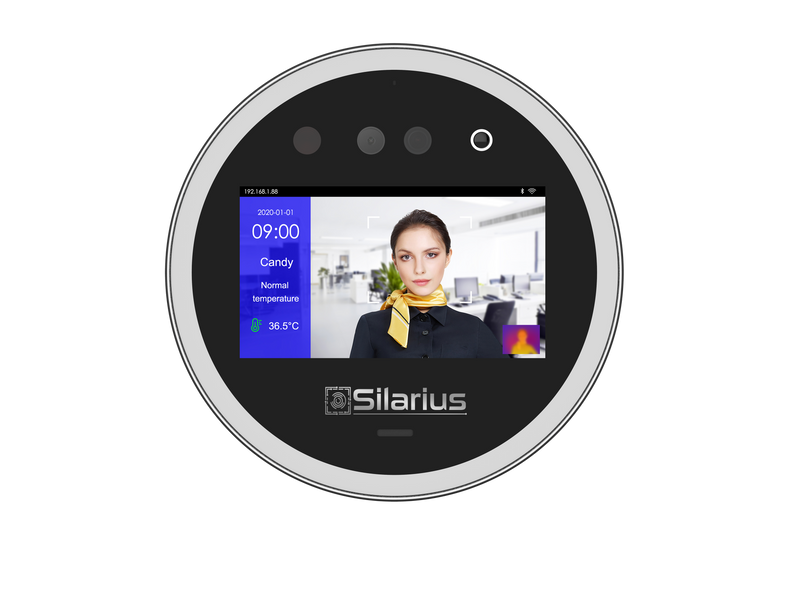

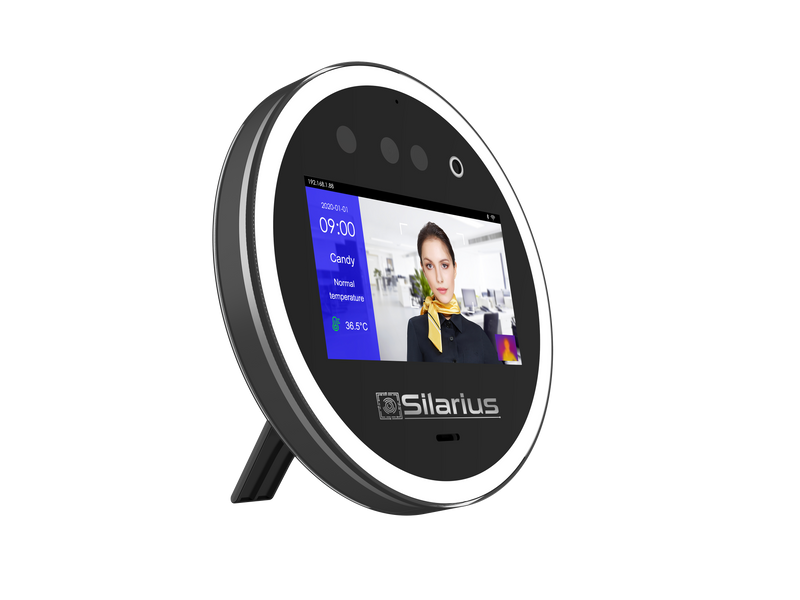

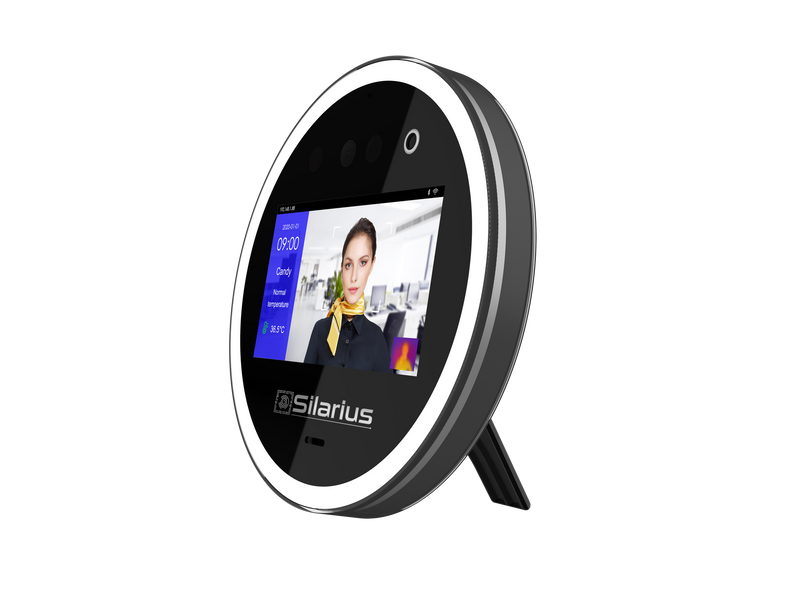

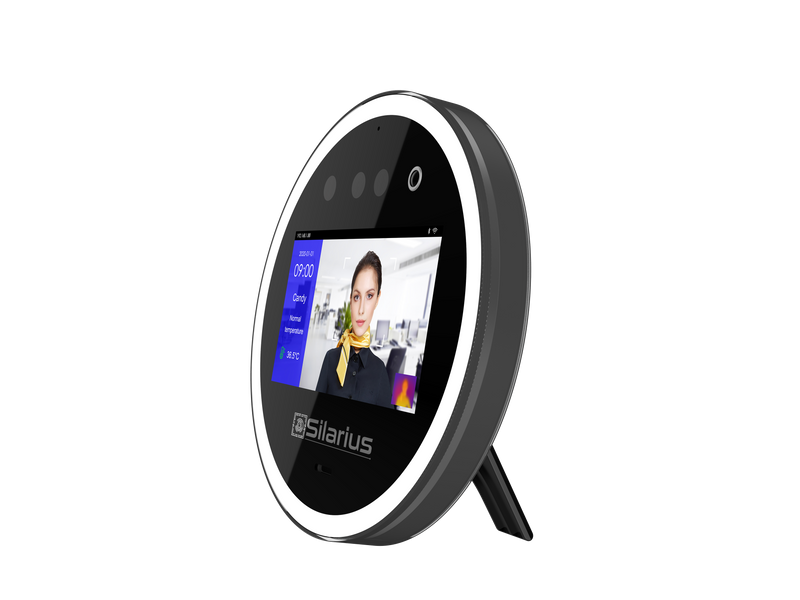

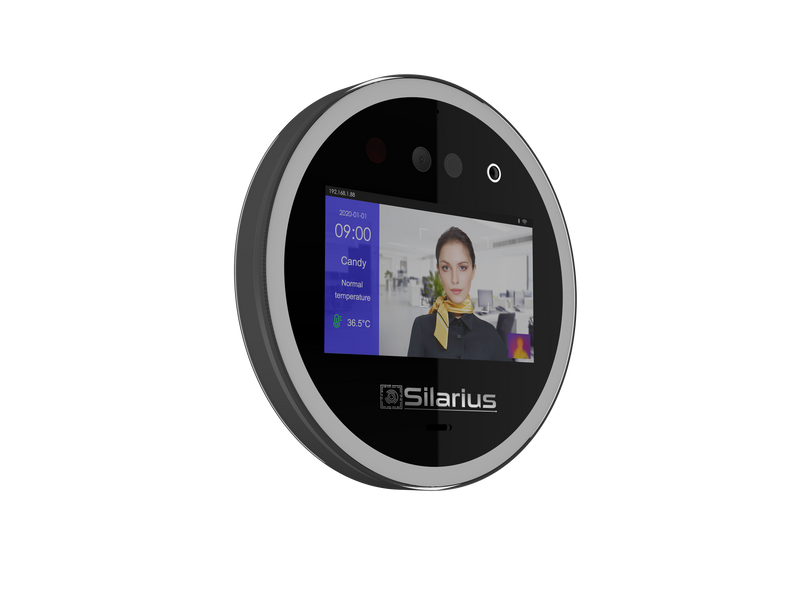

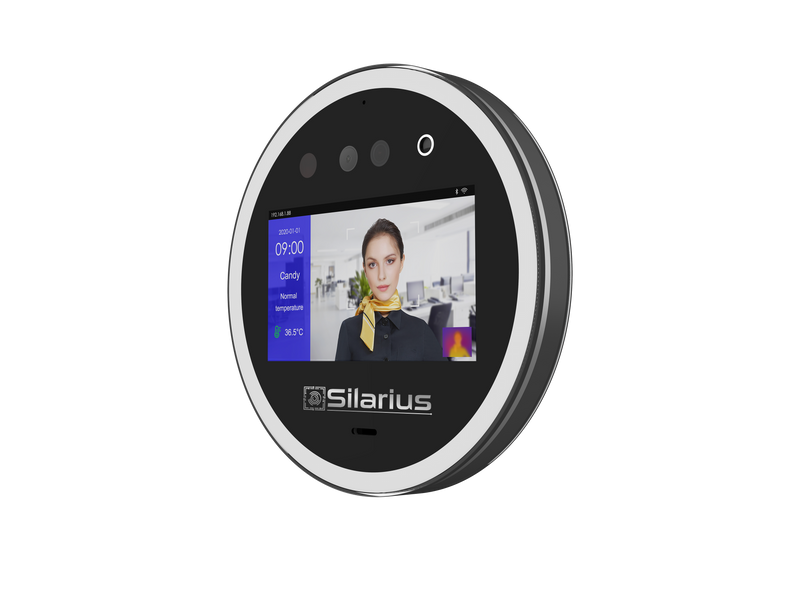

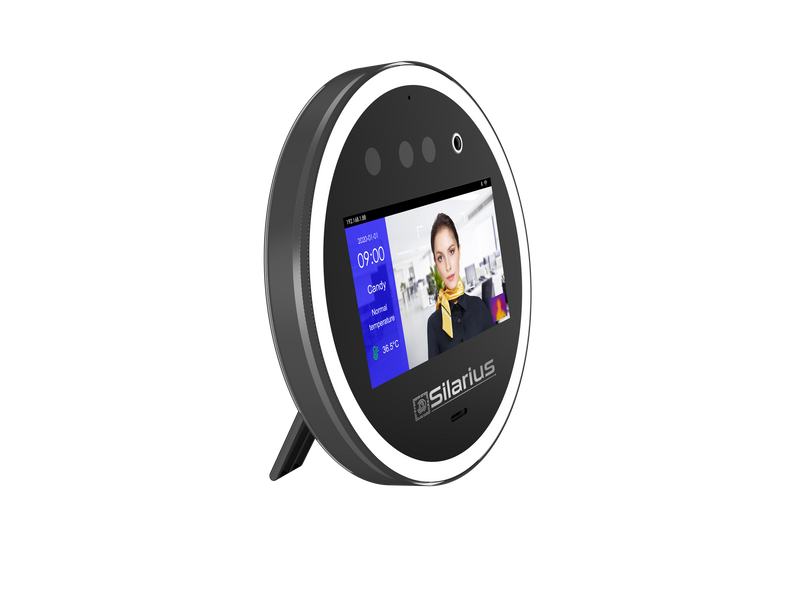

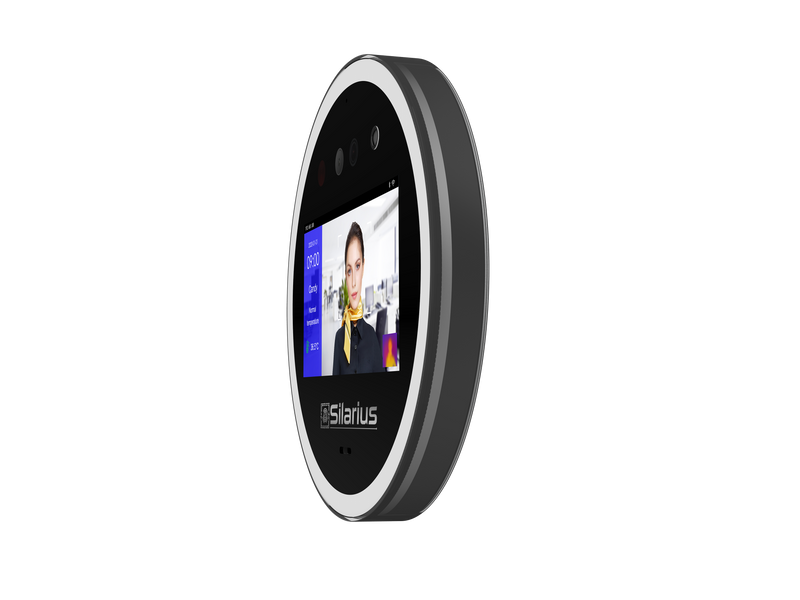

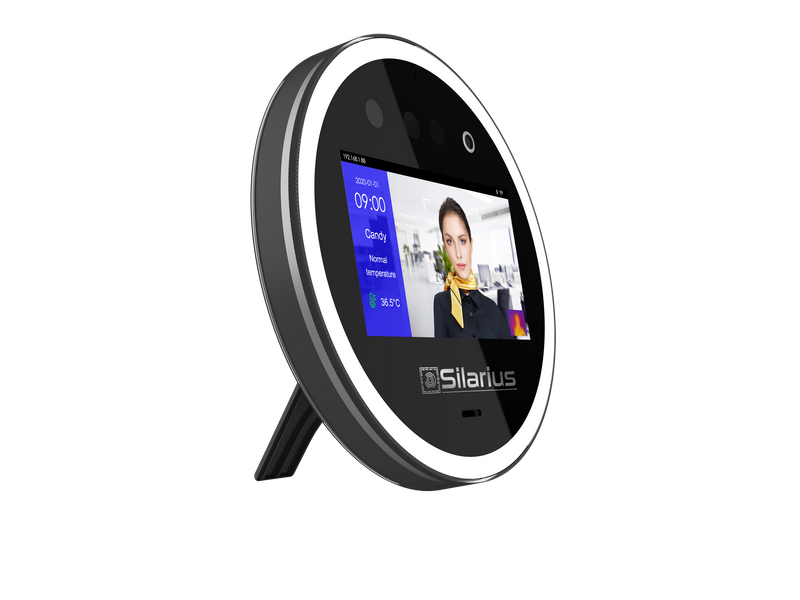

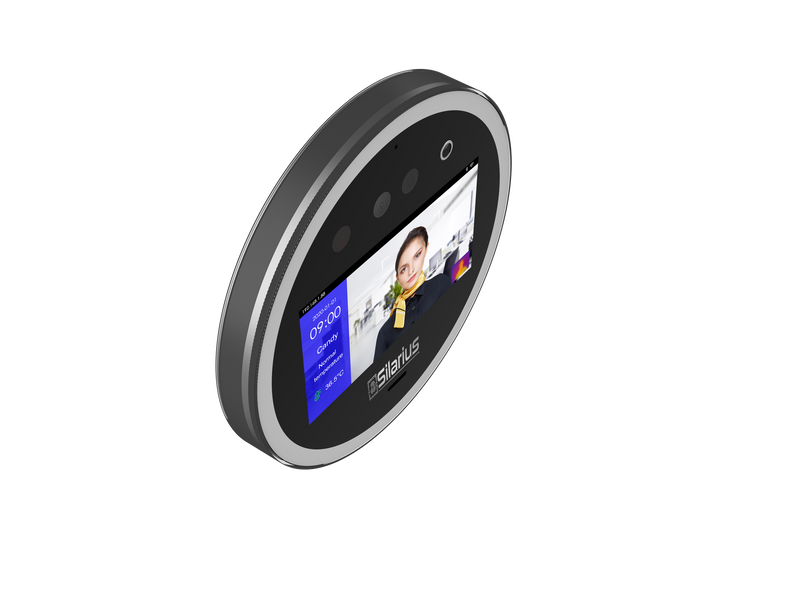

Silarius SIL‐ACCESSTEMP Smart Face Recognition, Temperature Measurement Device, Employee time management Device


Main Processor: SV806
Operating System: Embedded LINUX

Dimensions: 5 inch IPS HD LCD screen
Resolution: 1280*720

Type: 2MP camera
Sensor: 1/5" GC2145
Resolution: NIR 800*600 15fps
Lens: 2.28mm
Camera Type: Daily camera

Body temperature detection
Temperature measuring distance : 0.5m~0.75m
Temperature range: 35℃-42℃
Temperature measurement time: <2s
Temperature measurement accuracy: ± 0.3℃
Measuring Environment :10℃-40℃

Face recognition
Detection Type: Support face recognition, face comparison, mask detection, living body detection, mask recognition
Face recognition accuracy: 0.995
Face recognition distance: 0.5~1.2m
Face database capacity: Max support 2,000 faces
Face Posture: Horizontal less than 67°, vertical less than 40°
Occlusion: Ordinary glasses and short fringe have no effect on recognition.
Expression: Under normal circumstances, slight expressions do not affect recognition.
Response Speed : About 200ms
Face exposure: Support
Local Storage: Support storage of 5,000 records
Recognition area: Full screen recognition
Upload Method: TCP, HTTP, MQTT

Network Functions
Network protocol :IPv4, TCP/IP, HTTP, MQTT
Interface protocol :Private protocol
Security Mode: Authorized password
Event: linkage Voice broadcast, Abnormal event upload to the platform, Alarm output
System Upgrade: Support remote upgrade

Supplementary light: IR light, LED white light
Identification Module: /
Audio In: Support Internal MIC
Audio Out: Built in Speaker support voice broadcast after successful recognition
Network Module: /
Wi-Fi: 2.4G/5.8G Dual frequency, IEEE 802.11b/g/n, IEEE802.11a/ac
Bluetooth: /
Temperature Sensor: Heimann32*32
Alarm Indicator Light: Abnormal red light, Normal green light

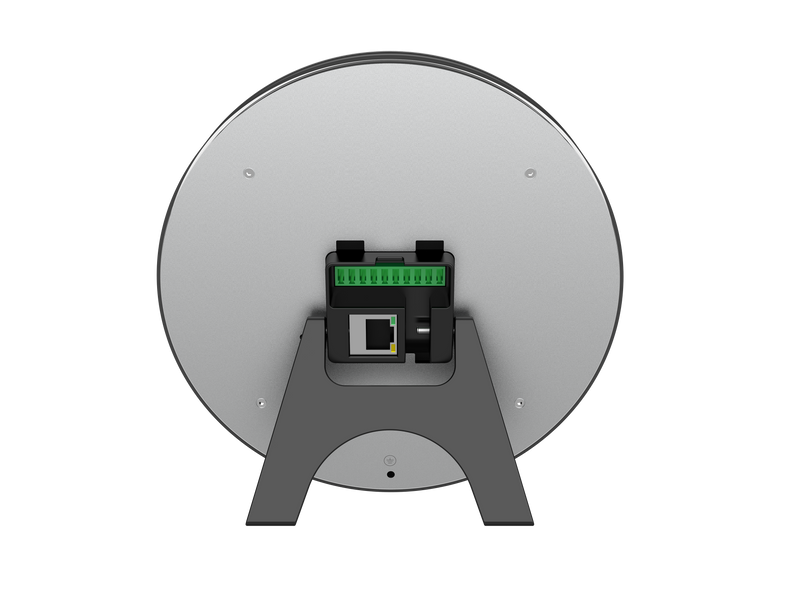

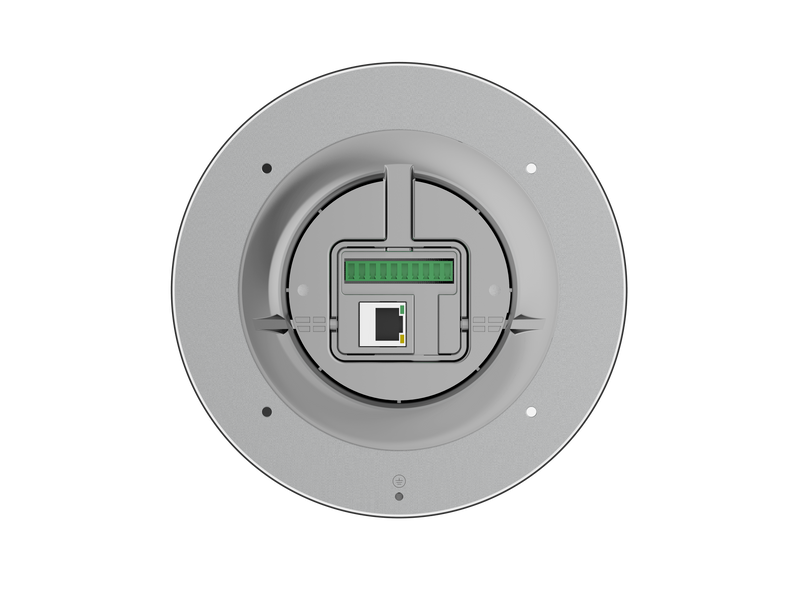

Network Interface: RJ45 10M/100M Network Adaptation
Alarm Input: /
Alarm Output :/
Relay Output: Support, NO, NC, COM
RS485: interface Support
Wiegand interface: Support external Wiegand protocol equipment
TF card slot: /
Reset key: Support

Housing :Plastic (PC+ABS), Aluminum alloy, Glass
Operating Temperature: 10℃-40℃
Working humidity: 10% -90% Non-condensing
Storage Temperature: -20 ° C ~ 70 ° C
Storage humidity: 5% -95% Non-condensing
Protection Level :/
Power Supply: DC12V, 2A
Power dissipation :(maximum) ≤ 12 W
Dimensions (mm): φ167*18.3mm

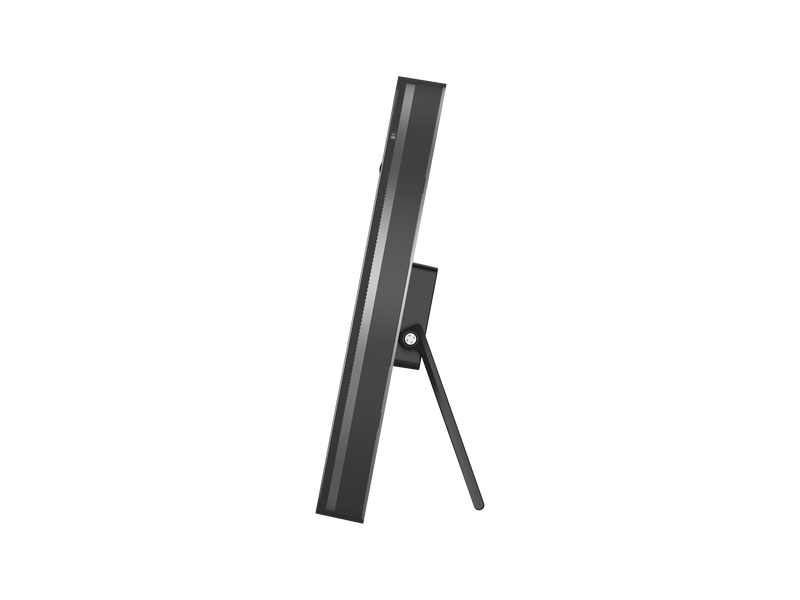

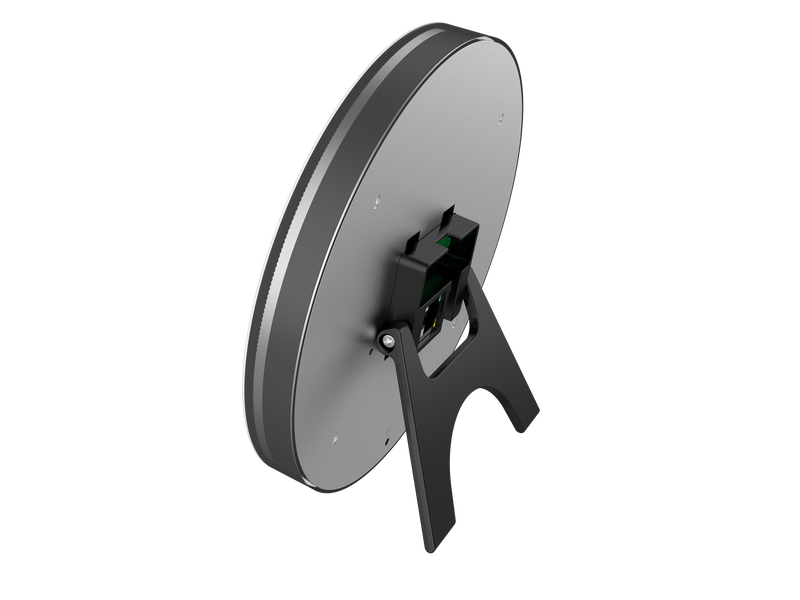

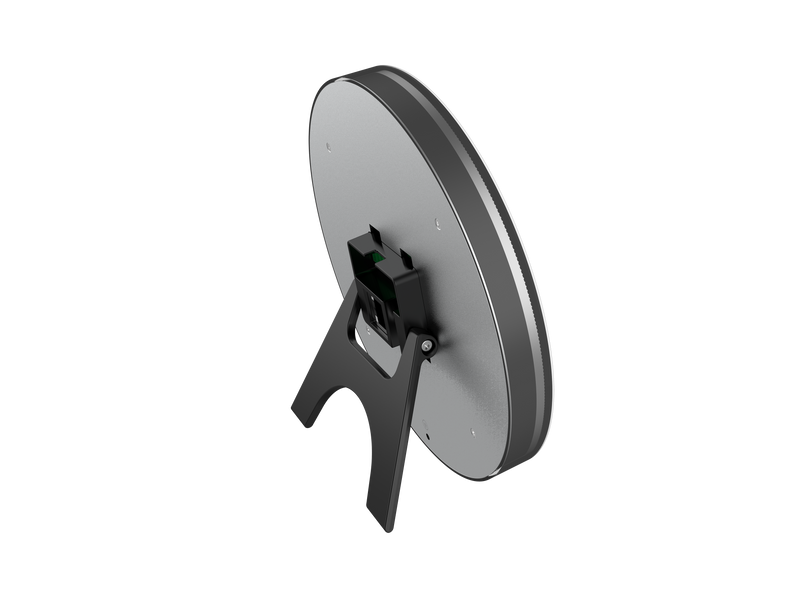

Bracket Type: Wall Mounting & Desktop
Product weight: (without packaging) 1.2kg
Packing size (mm): 241×202×104mm
Installation Method: Desktop installation/Doorpost installation/Wall installation
