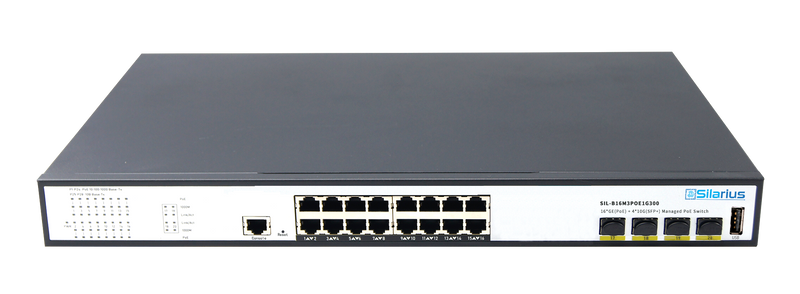

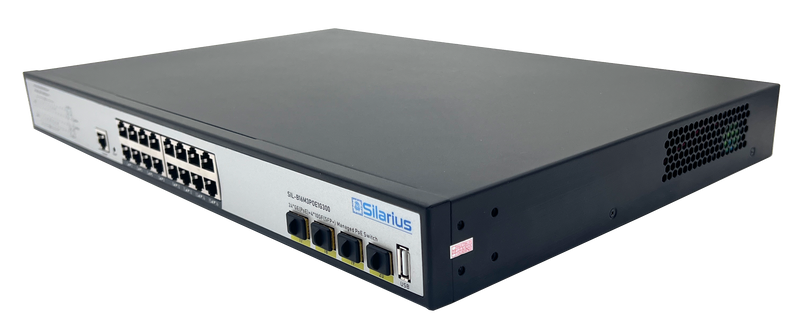

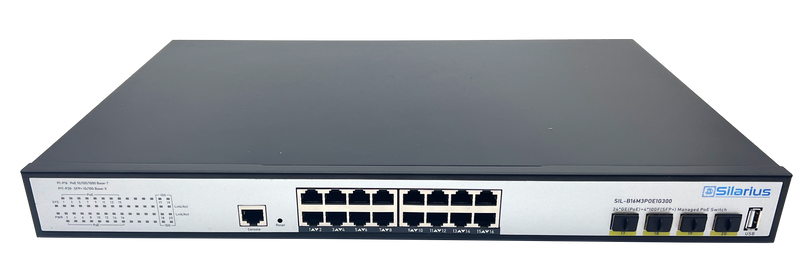

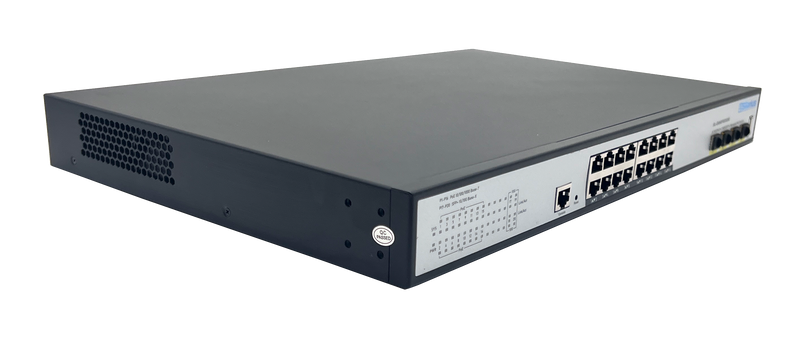

Silarius SIL-B16M3POE1G300 16 Ports 10/100/1000Mbps Layer3 Managed PoE+ switch with 4 Ports 10G SFP+ Uplink,1USB, 1 Console, 6KV surge protection,300W,rack mount installation

$399.99

Key Features:

Ports: Provide 16*1000Mbps PoE ports with 4 Ports 10G SFP+ Uplink,1 USB,1 Console.

PoE Standard: IEEE802.3af/at Power over Ethernet (PoE) Compliant

Self-adaption: RJ45 port supports 10/100/1000Mbps Auto MDI/MDIX

Fiber Port: 4 Ports 1/10G SFP+ Uplink

Wide Application: Designed for Wifi AP and IP Security camera.VoIP etc

Managed: Support remote web managed,VLAN and storm control and IPV6 management etc.

          Layer3 Features, Static route,RIP,OSPF  etc.

Surge protection: Protect the device from lighting surges and others electrical hazards

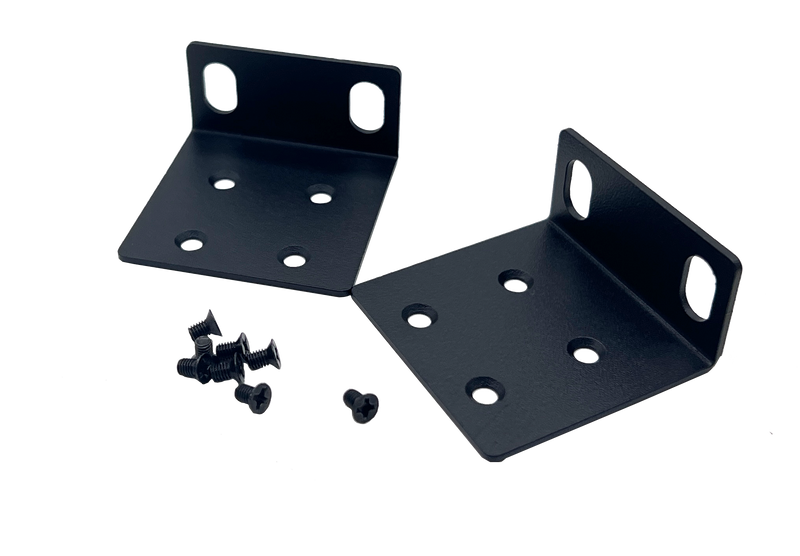

Considerate Design: Rack mount design with easy installation

Silarius’s 16-Port Gigabit Smart PoE+ Switch with 16 1000BASE-T PoE+ ports and four 10G SFP+ slots,It delivers advanced management features with an 256Gbps switching capacity. The SIL-B16M3POE1G300 is equipped with 1000BASE-T PoE+ ports that provide higher gigabit speeds capable of up to 1000Mbps over existing Cat5e or better cabling. This switch provides eight PoE+ connections with a Max power budget of 300W, and supplies up to 30W of power per port for devices such as wireless access points, PTZ IP cameras, and VoIP telephony systems.

1000Mbps Capability for Diversified Bandwidth Applications
With the terminal access rates of 802.11ac wireless APs reaching as high as 1Gbps, 100M ports has been unable to satisfy the demand. Supporting 1Gbps capability and 802.3af/at POE output, the SIL-B16M3POE1G300 can deliver not only data to 802.11ac wireless APs, but also power to other powered devices such as APs and IP cameras.

10 Gbps SFP Ports Optimize Network Performance
The SIL-B16M3POE1G300 provides greater bandwidth and powerful processing capacity. It offers a maximum 40Gbps uplink bandwidth through the Four 1/10Gbps SFP+ ports. In addition, the administrator can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

Cost-effective IPv6 Managed Gigabit Ethernet Switch Solution

With layer 3 managed Gigabit Ethernet Switch, It provides IPv6/IPv4 management and built-in L2/L4 Gigabit Switching engine, and supports high-speed transmission of surveillance images and videos.

Surge Protection Design

Reaching 6KV surge protection, the Ethernet ports owns the capacity to keep the Ethernet Switch from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments.

Model

SIL-B16M3POE1G300

Hardware Specifications

Connector

16*10/100/1000BASE-T RJ45 auto MDI/MDIX ports

4*1/10G Base-X SFP+ Slots Uplink

1 Console port,1 USB Port

Uplink port

4 10G Base-X SFP+ Slots

LED Display

Power Indicator: PWR(green).

Network Indicator: Link(yellow)

POE: Orange

SFP: Green

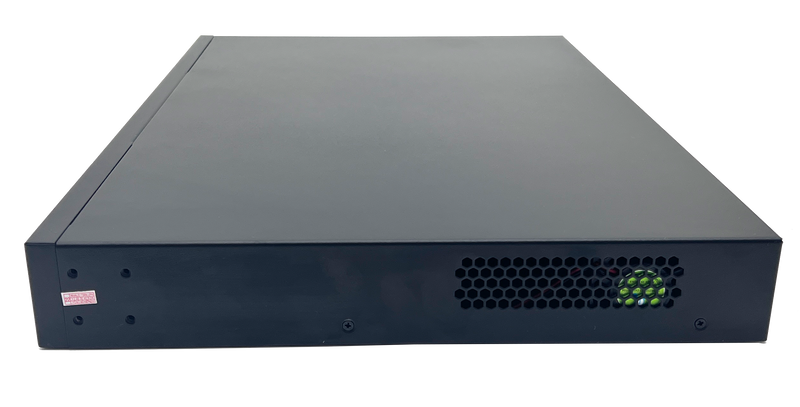

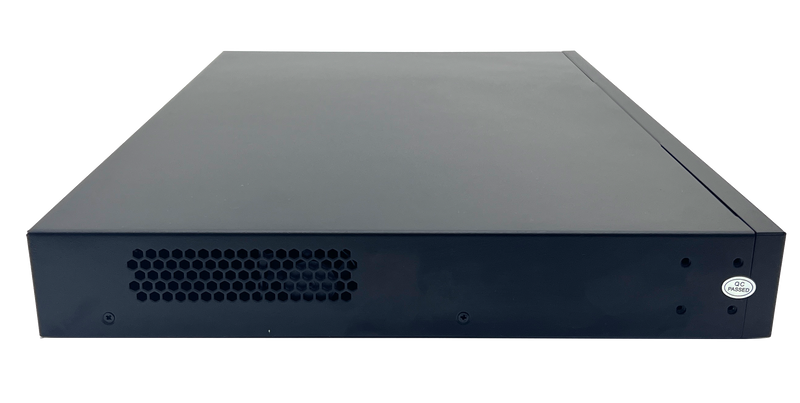

Thermal Fan

2 Fans

Network Standard

IIEEE 802.3u 100BASE-TX/100BASE-FX

IEEE 802.3z 1000BASE-SX/LX

IEEE 802.3ab 1000BASE-T

IEEE 802.3ae 10Gb/s Ethernet

IEEE 802.3x flow control and back pressure

IEEE802.3az EEE

Switch Architecture

Store and Forward

Transmission model

IEEE802.3X full-duplex and Backpressure half-duplex

Switch Performance

Backplane bandwidth

256Gbps

Packet forwarding rate

112.23Mpps

MAC address

32k

Power requirement

AC100-240V 50/60Hz

ESD Protection

6KV ESD

Dimension

440mm x 290mm x 44.5mm(17.32in x 11.42in x 1.75in)

Weight

3.9kg

Environment

Operating temperature: -20℃~55℃,operating humidity: 5%~95%

Storage temperature: -40℃~75℃,storage humidity: 5%~95%

Safety

FCC Part15 Class A,CE.RoHs





Power over Ethernet (PoE) Specifications

PoE Standard

IEEE 802.3af Power over Ethernet/PSE

IEEE 802.3at Power over Ethernet Plus/PSE

PoE Supply Type

1/2(+), 3/6(-) End-span

PoE Power Output

Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)

Per Port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)

PoE Power budget

300W







Layer 3 Functions



Port Mirroring

TX / RX / both  Many-to-1 monitor

Vlan

802.1Q tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling
Voice VLAN;Protocol VLAN;Private VLAN (Protected port),GVRP

Link Aggregation

IEEE 802.3ad LACP and static trunk

Supports 8 groups of 8-port trunk

Spanning Tree Protocol

STP, IEEE 802.1D Spanning Tree Protocol

RSTP, IEEE 802.1w Rapid Spanning Tree Protocol

MSTP, IEEE 802.1s Multiple Spanning Tree Protocol

IGMP Snooping

IGMP (v2/v3) snooping;IGMP querier;Up to 256 multicast groups

MLD Snooping

MLD (v1/v2) snooping, up to 256 multicast groups

Access Control List

IPv4/IPv6 IP-based ACL / MAC-based ACL

PoE Management

Open or close port

Standard POE scheduling management Power and current display

Automatic restarting function of equipment dead machine Timing

Support IP bindings restarting

Layer 3 Features

IPV4/IPV6 VRRP, the maximum group is 255

IPV4/IPV6 static route/default route supports up to 128 entries

IPV4 dynamic routing, RIPv1/v2, OSPFv2, BGP4+, 4000 routing entries

IPV6 dynamic routing OSPFv3, BGP+, RIPng, IPV6 management, 1000 routing entries

L3 network management function, IPV4/IPV6 dual-stack management

Layer 3 routing and forwarding, support communication between different network segments and different VLANs

QoS

8 mapping ID to 8 level priority queues
--- Port number
--- 802.1p priority
--- 802.1Q VLAN tag
--- DSCP field in IP packet
Traffic classification based, strict priority and WRR

Security

IEEE 802.1X port-based authentication

Built-in RADIUS client to co-operate with RADIUS server

RADIUS / TACACS+ user access authentication;IP-MAC port binding;MAC filtering;

Static MAC address;DHCP Snooping and DHCP Option82;STP BPDU guard,

BPDU filtering and BPDU forwarding;DoS attack prevention;ARP inspection

Management Function



Basic Management Interfaces

Web browser / Telnet / SNMP v1, v2c, V3
Firmware upgrade by HTTP / TFTP protocol through Ethernet network
Remote / Local Syslog,System log,LLDP protocol ,SNTP

Secure Management Interfaces

SSH, SSL, SNMP

SNMP MIBs

RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
