Silarius SIL-P2P2400MB7900FT24GHZ Outdoor CPE P2P 2.4GHz 300Mbps - Pair (Up to 1Km/3280ft)

$59.99

SIL-P2P2400MB7900FT24GHZ is an economic outdoor CPE/AP with 300Mbps Data rate. Comply with IEEE 802.11b/g/n standard, build in 10dBi panel antenna, the transmit/receive wireless distance more than 1000 meters.

It supports Router, Universal Repeater, WISP, AP and Repeater Mode, effective solution for PTP, PTMP application and outdoor long range WIFI coverage application.

SIL-P2P2400MB7900FT24GHZ with ABS waterproof, dust-proof and sunscreen shell, temperature adaptive and board protective, Meantime, it supports 24V passive POE, easy in setup even no power socket nearby, ideal for outdoor use;

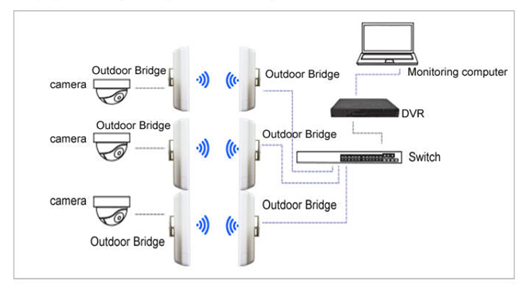

Besides that, SIL-P2P2400MB7900FT24GHZ with digital display, easy to be pairing, simple configuration, make this device is widely used in CCTV, Village long range data transmit, Park, Squares...

Product Features

Very cost-effective hardware configuration

Industrial grade circuit design, 8MB Flash/64MB SDRAM, support IEEE802.11b/g/n protocol, can provide 300Mbps wireless access speed, excellent anti-high and low temperature design,  enhance the user experience in extreme environment.



10dBi High Gain Antenna, Long Range Wi-Fi Device in market

SIL-P2P2400MB7900FT24GHZ with 10dBi high gain antenna, the Wi-Fi range is more than 1000 meters, it is the device with very stable performance in long range, but competitive in price.



Support Power over Ethernet, Cost Save

The device has integrated Power over Ethernet (PoE) for easy installation and lower cost, with 24V PoE, it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.



Stylish compact, simple and flexible installation

Stylish appearance, supports the wall/pole fixed installation mode, flexible installation, greatly reduces the construction difficulty and improves the construction efficiency without affecting the original design.



IP66 dust-proof and waterproof, suitable for a variety of harsh environments

The enclosure is IP66 rated for outdoor dust, water and sun protection. It can work normally in extreme environments as low as -30 ℃ up to 65 ℃. It can easily adapt to the harsh outdoor environment and ensure stable operation of the network for 24 hours.



Model

SIL-P2P2400MB7900FT24GHZ

Hardware Specifications

Interface

LAN PoE 10/100Mbps RJ45

Button

1*Reset Button, Long press to reset, short press to adjust digital display number

Power Consumption

<12W

Power Supply

POE:24V 0.5A,DC:12V 1A

working environment

Temperature:-40℃~+75℃(operating),-40℃ ~+80℃(storage)Humidity(no-condensing):5%~90%(operating),5%~95%(storage)

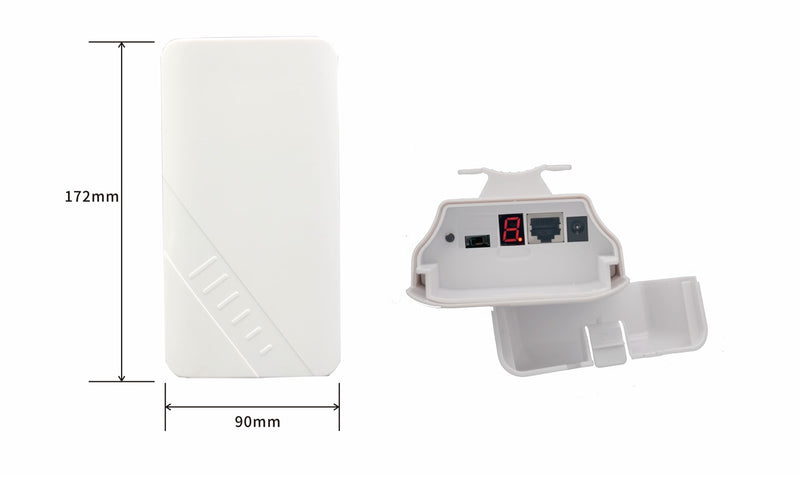

Size

172*90*44(mm)

Weight

0.5KG

Toggle switch

Define product AP Mode and Repeater Mode



Radio frequency Feature

Frequency Range

ISM band: 2.400 ~ 2.4835 GHz

Channel

2G:1、2、3、4、5、6、7、8、9、10、11、12、13

Modulation method

OFDM = BPSK, QPSK,16-QAM,64-QAM; DSSS = DBPSK, DQPSK, CCK

Output power

2.4G:  11n @MCS0~2/MCS8~10:27±1dBm    @MCS7/MCS15:23±1dBm

11g @6~24M:27±1dBm   @54M:23±1dBm   11b @1~11M:27±1dBm

EVM

802.11n: ≤-29 dB            802.11g: ≤-26 dB802.11b

Frequency offset

±20ppm

Software Feature

Working Mode

Router, Universal Repeater, WISP, AP and Repeater

Users

32

Network

Controller address /DHCP/ static IP

System

Restore factory/system restart



 Spec Sheet





 Download Here
