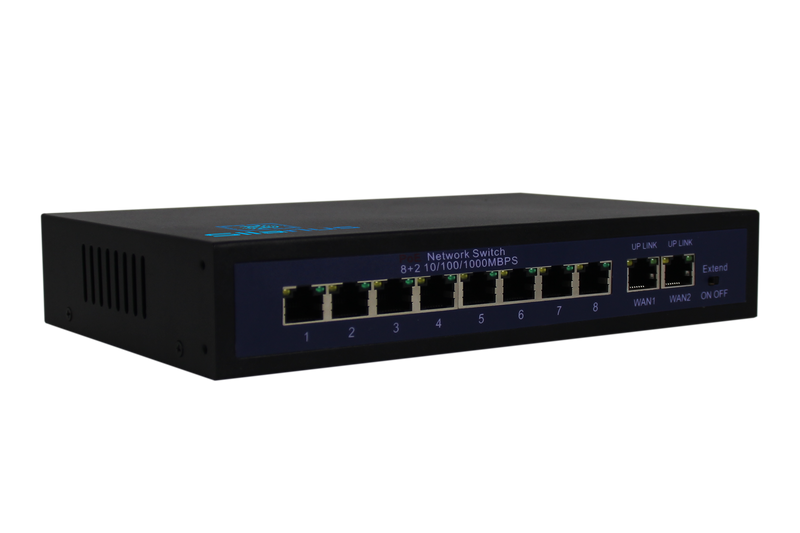

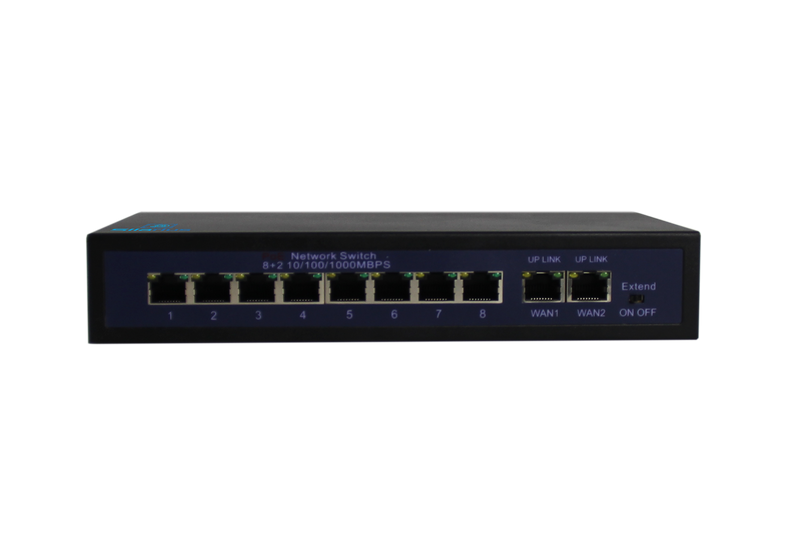

10 Ports POE switch with 8/100MB Ports PoE and 2 Gigabit Uplinks - 120W POE

$99.99

Free shipping
3-year Silarius warranty
US-based support team

Buying in volume or for several sites? Get project pricing.

Complete your setup

Everything this needs to work on day one. Add with one tap.

SIL-RJ45CAT6UTP CAT6 RJ45 Plastic Plug (100-PACK)Cable ends for a clean, reliable install
$54.00
SIL-POEEXPOE Extender/transmitterReach cameras beyond 100 m
$19.99

Specifications

Network Connector

Network Port 1~8 port	:10/100Mbps PoE Ethernet LAN port
WAN1/WAN2 port	10/100/1000Mbps Ethernet WAN port

Transmission Distance

Extend switch is ON, state	(1~8 port:): 200m
WAN1/WAN2 port	100m

Network Switch

Maximum Frame Size	1536 Bytes
MAC address lisT	2K
Backplane bandwidth	1Gbps
PoE Standard	IEEE802.3af/at

Power Over Ethernet

PoE Power Supply Type	End‐Span(4/5+;7/8‐)
PoE Power Consumption	af,at Adaptive (every port)

Environmental

Working temperature	0℃~55℃
Storage temperature	‐40℃~70℃
Working humidity	10%‐90% non‐condensing
Storage humidity	5%‐95% non‐condensing

Mechanical

Dimension (L x W x H) mm	22014040
Material	SECC
Color	Dark grey
Stability	MTBF >30000h

Full description

Power

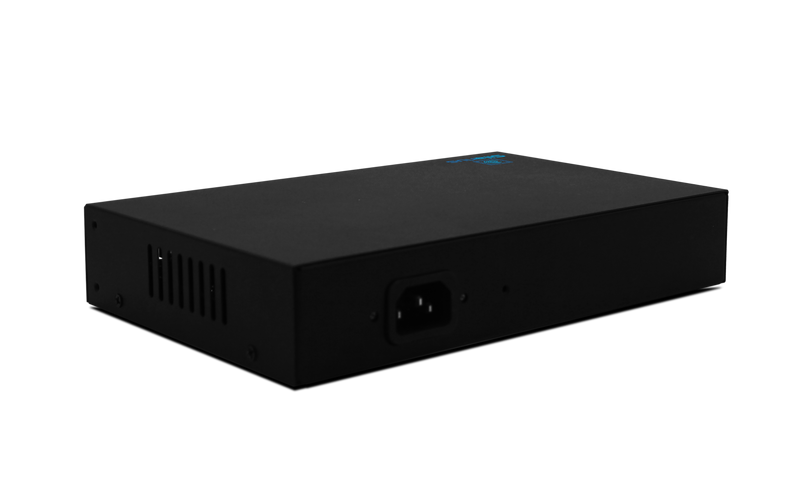

Power Adapter Voltage Input：110‐240V/AC 50‐60Hz 5
The maximum power supply machine 120W

Protection level
Mould +‐4KV
Differential mode +‐1KV

Network Connector
Network Port 1~8 port: :10/100Mbps PoE Ethernet LAN port
WAN1/WAN2 port : 10/100/1000Mbps Ethernet WAN port

Transmission Distance
Extend switch is default OFF, state(1~8 port)：100m
Extend switch is ON, state:(1~8 port:): 200m
WAN1/WAN2 port: 100m
Transmission Medium Cat5/5e/6 standard network cable

Network Switch
Network Standard
IEEE802.3/10BASE‐T
IEEE802.3u/100BASE‐TX
IEEE802.3x Flow Control, IEEE802.3az
Maximum Frame Size: 1536 Bytes
MAC address lisT: 2K
Backplane bandwidth: 1Gbps
PoE Standard: IEEE802.3af/at

Power Over Ethernet
PoE Power Supply Type: End‐Span(4/5+;7/8‐)
PoE Power Consumption: af,at Adaptive (every port)
LED Status Indicator PoE Ethernet
When the PoE is powered, 1‐8 LEDs are green
When accessing Ethernet, ports 1‐8 are yellow

Environmental
Working temperature: 0℃~55℃
Storage temperature: ‐40℃~70℃
Working humidity: 10%‐90% non‐condensing
Storage humidity: 5%‐95% non‐condensing

Mechanical
Dimension (L x W x H) mm :220*140*40
Material: SECC
Color: Dark grey
Stability: MTBF >30000h
