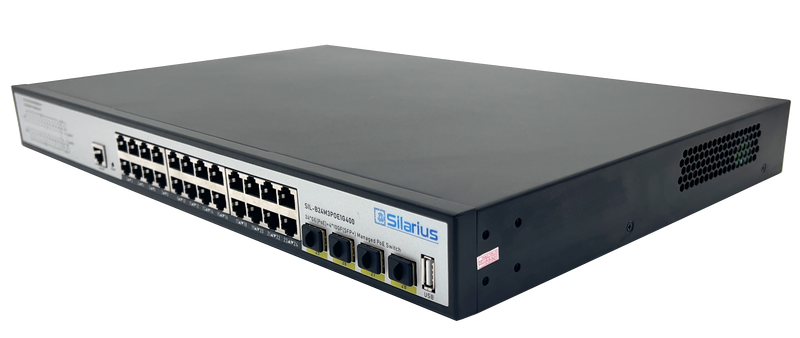

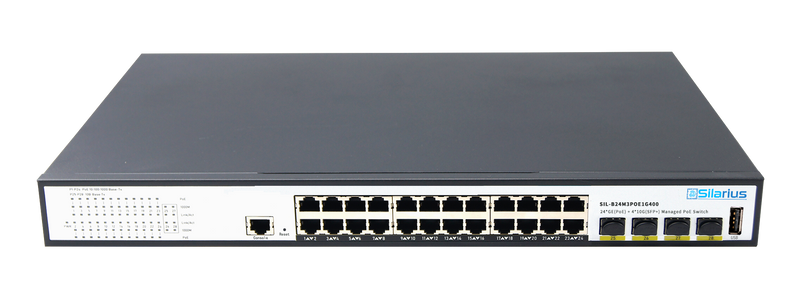

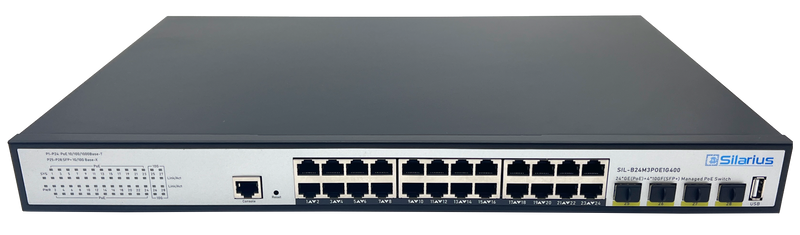

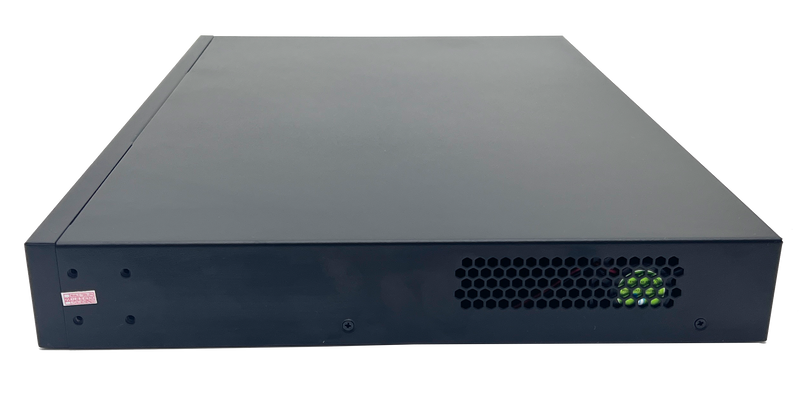

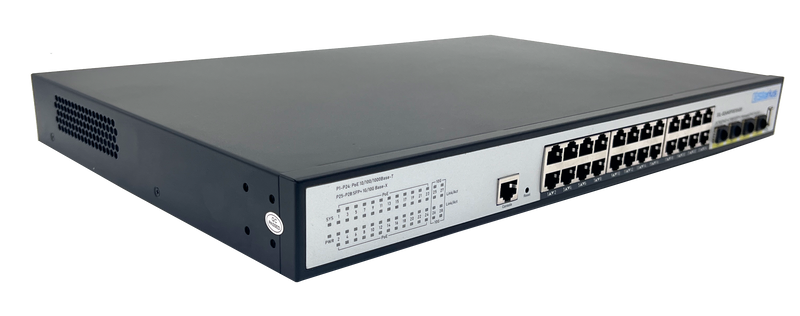

Silarius SIL-B24M3POE1G400 24 Ports 10/100/1000Mbps Layer3 Managed PoE+ switch with 4 Ports 10G SFP+ Uplink, 1 Console, 6KV surge protection, 400W, rack mount installation

$499.99

Key Features:

Ports: Provide 24*1000Mbps PoE ports with 4 Ports 10G SFP+ Uplink,1 USB,1 Console.

PoE Standard: IEEE802.3af/at Power over Ethernet (PoE) Compliant

Self-adaption: RJ45 port supports 10/100/1000Mbps Auto MDI/MDIX

Fiber Port: 4 Ports 1/10G SFP+ Uplink

Wide Application: Designed for Wifi AP and IP Security camera.VoIP etc

Managed: Support remote web managed,VLAN and storm control and IPV6 management etc.

          Layer3 Features, Static route,RIP,OSPF  etc.

Surge protection: Protect the device from lighting surges and others electrical hazards

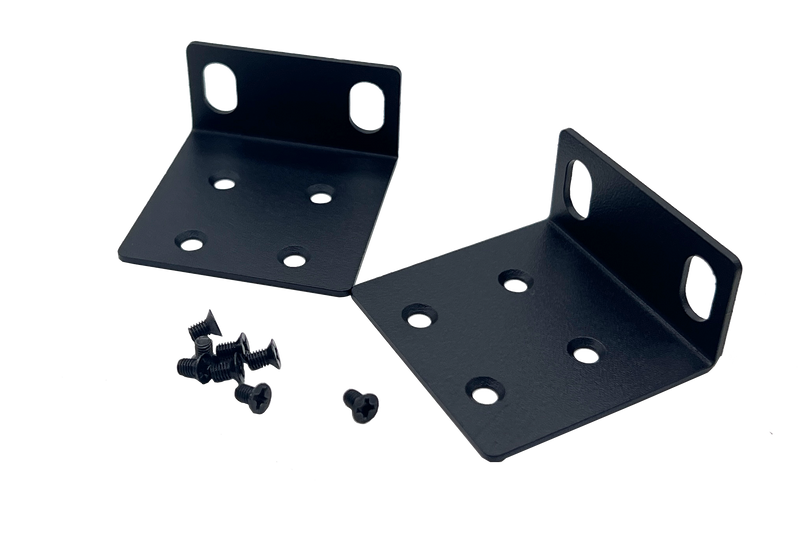

Considerate Design: Rack mount design with easy installation



Introducing a new Gigabit Managed POE Switch for future-proof deployments

Silarius’s 24-Port Gigabit Smart PoE+ Switch with 24 1000BASE-T PoE+ ports and four 10G SFP+ slots,It delivers advanced management features with an 256Gbps switching capacity. The SIL-B24M3POE1G400 is equipped with 1000BASE-T PoE+ ports that provide higher gigabit speeds capable of up to 1000Mbps over existing Cat5e or better cabling. This switch provides eight PoE+ connections with a Max power budget of 400W, and supplies up to 30W of power per port for devices such as wireless access points, PTZ IP cameras, and VoIP telephony systems.

1000Mbps Capability for Diversified Bandwidth Applications
With the terminal access rates of 802.11ac wireless APs reaching as high as 1Gbps, 100M ports has been unable to satisfy the demand. Supporting 1Gbps capability and 802.3af/at POE output, the SIL-B24M3POE1G400 can deliver not only data to 802.11ac wireless APs, but also power to other powered devices such as APs and IP cameras.

10 Gbps SFP Ports Optimize Network Performance
The SIL-B24M3POE1G400 provides greater bandwidth and powerful processing capacity. It offers a maximum 40Gbps uplink bandwidth through the Four 1/10Gbps SFP+ ports. In addition, the administrator can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

Cost-effective IPv6 Managed Gigabit Ethernet Switch Solution

With layer 3 managed Gigabit Ethernet Switch, It provides IPv6/IPv4 management and built-in L2/L4 Gigabit Switching engine, and supports high-speed transmission of surveillance images and videos.

Surge Protection Design

Reaching 6KV surge protection, the Ethernet ports owns the capacity to keep the Ethernet Switch from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments.

Model

SIL-B24M3POE1G400

Hardware Specifications

Connector

24*10/100/1000BASE-T RJ45 auto MDI/MDIX ports

4*1/10G Base-X SFP+ Slots Uplink

1 Console port,1 USB Port

Uplink port

4 10G Base-X SFP+ Slots

LED Display

Power Indicator: PWR(green).

Network Indicator: Link(yellow)

POE: Orange

SFP: Green

Thermal Fan

2 Fan

Network Standard

IIEEE 802.3u 100BASE-TX/100BASE-FX

IEEE 802.3z 1000BASE-SX/LX

IEEE 802.3ab 1000BASE-T

IEEE 802.3ae 10Gb/s Ethernet

IEEE 802.3x flow control and back pressure

IEEE802.3az EEE

Switch Architecture

Store and Forward

Transmission model

IEEE802.3X full-duplex and Backpressure half-duplex

Switch Performance

Backplane bandwidth

256Gbps

Packet forwarding rate

132.61Mpps

MAC address

32k

Power requirement

AC100-240V 50/60Hz

ESD Protection

6KV ESD

Dimension

440mm x 290mm x 44.5mm(17.32in x 11.42in x 1.75in)

Weight

5kg

Environment

Operating temperature: -20℃~55℃,operating humidity: 5%~95%

Storage temperature: -40℃~75℃,storage humidity: 5%~95%

Safety

FCC Part15 Class A,CE.RoHs
