SIL-DWIFI5MP36

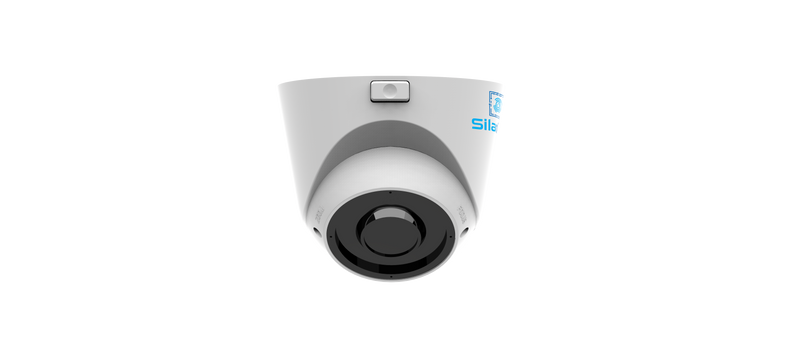

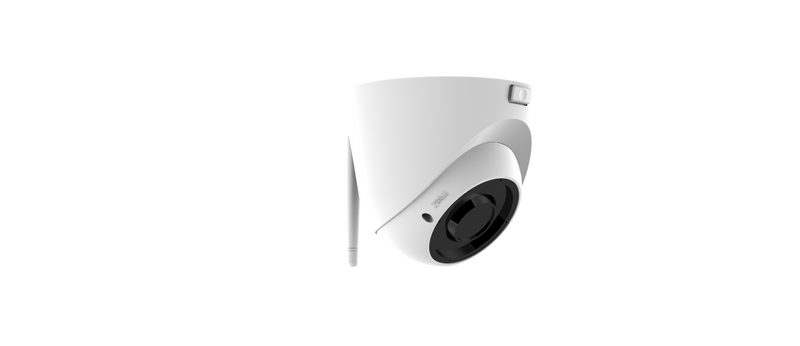

Outdoor IP67 WiFi mini Dome 5MP, 3.6mm lens

NDAA compliantWorks with Silarius CloudWi-Fi

$149.99

Free shipping
3-year Silarius warranty
US-based support team

Add Silarius Cloud recordingOptional. Watch and search video from anywhere. From $6.99 per camera per month.

Video quality

Keep video for

No plan selected. Pick a video quality or how long to keep video to add Silarius Cloud, or just add the camera to your cart.

Buying in volume or for several sites? Get project pricing.

Works with Silarius Cloud. Connect this camera through the Silarius Gateway for remote viewing, AI search and alerts. How Silarius Cloud works

Complete your setup

Everything this needs to work on day one. Add with one tap.

SIL-CK-AB160Bracket for SIL-DWIFI5MP36Made for the SIL-DWIFI5MP36
$62.99

Specifications

Camera

Image Sensor	1/2.5" High-resolution CMOS Sensor
Resolution	5MP
Effective Pixels	2608(H)*1952(V)
Compression	H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
TV System	PAL/NTSC
Electronic Shutter Time Auto	PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
Minimun Illumination	0.01Lux
S/N Ratio	≥52dB
Scanning System	Progressive
Video Output	Network
Reset Button	NO

Lens Type

Focus Length	3.6mm
Focus Control	manual
Lens Type	manual
Pixels	5MP

Night Vision

Infrared LED	14μx 20PCS
Infrared Distance	30M
IR Status	Auto
IR Power	On Auto

Network

Ethernet	RJ-45 (10/100Base-T)
Protocol	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
ONVIF	Support ONVIF 2.4(Profile S)
P2P	YES, Support QR Code
Video Delay	0.3S (Within the Lan)
Main Stream 1	2592*1944@20fp
Main Stream 2	2560*1440@30fp
Main Stream 3	1920*1080@30fps
Sub Stream 1	720*480@20fps
IE Brower	IE9-11, Google Chrome(Under Ver 45), Firefox(Under Ver 53), Mac Safari(Under ver 11)
Smart Phone	iPhone, iPad, Android, Android Pad

Wireless

Antena	3dbi
Wi-Fi	Wi-Fi(IEEE802.11b/g/n),2.4Ghz
WIFI Range	No obstacles 300m Max.

Camera Features

Day/Night	Color/ B&W (IR-CUT )
Image Config	Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control)
Corridor Pattern	Support
Defog Mode	Support
BLC	Support
Motion Detection	Support
Privacy Masking	3 Rectangular Zone
Recording Mode	NVR/VMS/Web/SD Card
Language	Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean,Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese

Interface

Audio	Optional Audio in(RCA interface)
SD Card Slot	support 256G Micro SD With External SD Card Slot

General

Housing	Metal, IP67
Anti-cut Bracket	NO
IR Cut Filter	YES
Operation Temperature	-20℃ ~ +60℃ RH95% Max
Storage Temperature	-20℃ ~ +60℃ RH95% Max
Power Source	DC12V±10%, 900mA
Dimension	￠120 x 104(H) mm
Weight	600g

Full description

Secure your premises with Silarius SIL-DWIFI5MP36: NDAA compliant and IP67 rated for reliable outdoor surveillance
The Silarius SIL-DWIFI5MP36 Outdoor IP67 WiFi mini Dome 5MP, 3.6 mm lens is the perfect solution for all of your outdoor security needs! This NDAA Compliant camera is designed to withstand extreme weather and temperatures yet still provide crystal clear, high resolution images day or night with its powerful 5MP sensor and wide angle 3.6 mm lens. With easy setup through WiFI connectivity, you can have peace of mind that your home or business will be safe and secure no matter what Mother Nature throws at it!

Silarius is taking quality and reliability to the next level
with the Pro series line of 5MP, 8MP, and 12MP IP cameras including a
2MP, and 4MP outdoor speed dome. The Silarius cameras, including
indoor and outdoor dome, bullet and outdoor speed dome offer
exceptional picture clarity, flexible system integration, secure
data transmission and easy installation.

Camera
Image Sensor: 1/2.5" High-resolution CMOS Sensor
Resolution: 5MP
Effective Pixels: 2608(H)*1952(V)
Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
TV System: PAL/NTSC
Electronic Shutter Time Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
Minimun Illumination: 0.01Lux
S/N Ratio: ≥52dB
Scanning System: Progressive
Video Output :Network
Reset Button: NO

Lens Type
Focus Length: 3.6mm
Focus Control: manual
Lens Type: manual
Pixels: 5MP

Night Vision
Infrared LED: 14μx 20PCS
Infrared Distance: 30M
IR Status: Auto
IR Power: On Auto

Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
ONVIF: Support ONVIF 2.4(Profile S)
P2P :YES, Support QR Code
POE /
Video Delay: 0.3S (Within the Lan)
Main Stream 1: 2592*1944@20fp
2560*1920@20fp
Main Stream 2: 2560*1440@30fp
Main Stream 3: 1920*1080@30fps
Sub Stream 1: 720*480@20fps
720*480@30fps
Sub Stream 2 /
Sub Stream 3 /
Tri Stream /
IE Brower: IE9-11, Google Chrome(Under Ver 45), Firefox(Under Ver 53), Mac Safari(Under ver 11)
Smart Phone: iPhone, iPad, Android, Android Pad

Wireless
Antena: 3dbi
Hotspot /
Wi-Fi: Wi-Fi(IEEE802.11b/g/n),2.4Ghz
WIFI Range: No obstacles 300m Max.

Camera Features
Day/Night: Color/ B&W (IR-CUT )
Image Config: Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control)
Corridor Pattern: Support
ROI /
Defog Mode: Support
BLC: Support
HDR /
WDR /
Motion Detection: Support
Privacy Masking: 3 Rectangular Zone
Recording Mode: NVR/VMS/Web/SD Card
Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean,Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese

Interface
Audio: Optional Audio in(RCA interface)
Alarm /
SD Card Slot: support 256G Micro SD With External SD Card Slot
RS485 /

General
Housing: Metal, IP67
Anti-cut Bracket: NO
IR Cut Filter: YES
Operation Temperature: -20℃ ~ +60℃ RH95% Max
Storage Temperature: -20℃ ~ +60℃ RH95% Max
Power Source: DC12V±10%, 900mA
Dimension: ￠120 x 104(H) mm
Weight: 600g

Download the Silarius IP Tool and Scanner, viewing software, manuals and firmware from the Silarius Download Center.
