SIL-DWIFI5MP8

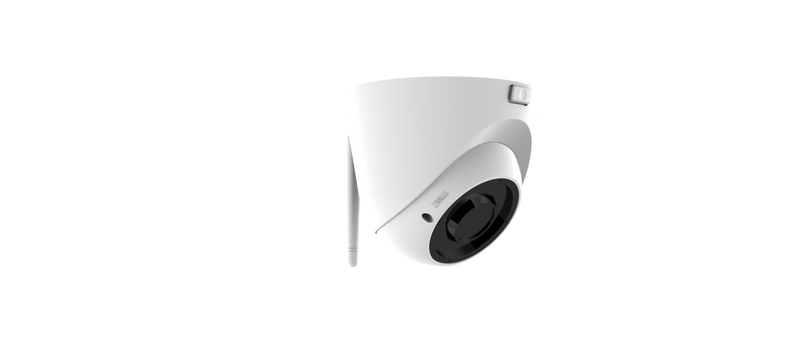

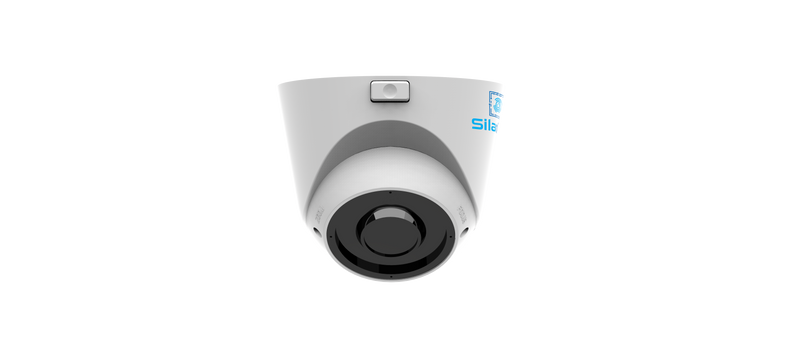

Outdoor IP67 WiFi mini Dome 5MP, 8mm lens

NDAA compliantWorks with Silarius CloudWi-Fi

$149.99

Free shipping
3-year Silarius warranty
US-based support team

Add Silarius Cloud recordingOptional. Watch and search video from anywhere. From $6.99 per camera per month.

Video quality

Keep video for

No plan selected. Pick a video quality or how long to keep video to add Silarius Cloud, or just add the camera to your cart.

Buying in volume or for several sites? Get project pricing.

Works with Silarius Cloud. Connect this camera through the Silarius Gateway for remote viewing, AI search and alerts. How Silarius Cloud works

Specifications

Camera

Image Sensor	1/2.5" High-resolution CMOS Sensor
Resolution	5MP
Effective Pixels	2608(H)*1952(V)
Compression	H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
TV System	PAL/NTSC
Electronic Shutter Time Auto	PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
Minimun Illumination	0.01Lux
S/N Ratio	≥52dB
Scanning System	Progressive
Video Output	Network
Reset Button	NO

Lens Type

Focus Length	8mm
Focus Control	manual
Lens Type	manual
Pixels	5MP

Night Vision

Infrared LED	14μx 20PCS
Infrared Distance	30M
IR Status	Auto
IR Power	On Auto

Network

Ethernet	RJ-45 (10/100Base-T)
Protocol	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
ONVIF	Support ONVIF 2.4(Profile S)
P2P	YES, Support QR Code
Video Delay	0.3S (Within the Lan)
Main Stream 1	2592*1944@20fp
Main Stream 2	2560*1440@30fp
Main Stream 3	1920*1080@30fps
Sub Stream 1	720*480@20fps
IE Brower	IE9-11, Google Chrome(Under Ver 45), Firefox(Under Ver 53), Mac Safari(Under ver 11)
Smart Phone	iPhone, iPad, Android, Android Pad

Wireless

Antena	3dbi
Wi-Fi	Wi-Fi(IEEE802.11b/g/n),2.4Ghz
WIFI Range	No obstacles 300m Max.

Camera Features

Day/Night	Color/ B&W (IR-CUT )
Image Config	Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control)
Corridor Pattern	Support
Defog Mode	Support
BLC	Support
Motion Detection	Support
Privacy Masking	3 Rectangular Zone
Recording Mode	NVR/VMS/Web/SD Card
Language	Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean,Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese

Interface

Audio	Optional Audio in(RCA interface)
SD Card Slot	support 256G Micro SD With External SD Card Slot

General

Housing	Metal, IP67
Anti-cut Bracket	NO
IR Cut Filter	YES
Operation Temperature	-20℃ ~ +60℃ RH95% Max
Storage Temperature	-20℃ ~ +60℃ RH95% Max
Power Source	DC12V±10%, 900mA
Dimension	￠120 x 104(H) mm
Weight	600g

Full description

Secure Your World with Silarius SIL-DWIFI5MP8 - NDAA Compliant Outdoor WiFi Mini Dome!
Silarius' SIL-DWIFI5MP8 Outdoor IP67 WiFi mini Dome 5MP, 8 mm lens is the perfect security solution for any outdoor space. With its NDAA Compliant features and waterproof design, you can rest assured that your property is safe from intruders 24/7. Whether you're looking to monitor a business or home property, this innovative surveillance system provides crystal clear video images up to five megapixels with an 8 mm lens, so you never miss a single detail. Get maximum protection with Silarius today!

Waterproof rating of IP67 – With its Ingress Protection 67 (IP6
Wireless connection Quick setup
Product is compliant with the National Defense Authorization Act (NDAA)

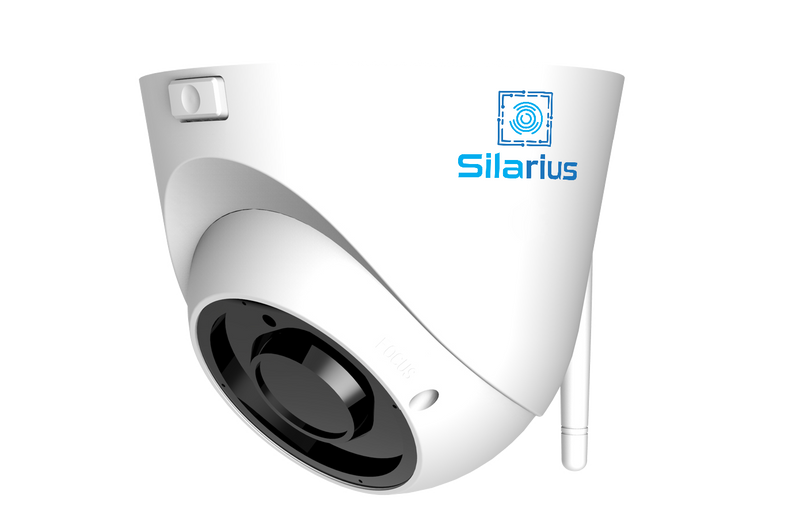

The mini dome camera features a high resolution 5 megapixel sensor and 8 mm lens for superior image quality

Silarius is taking quality and reliability to the next level
with the Pro series line of 5MP, 8MP, and 12MP IP cameras including a
2MP, and 4MP outdoor speed dome. The Silarius cameras, including
indoor and outdoor dome, bullet and outdoor speed dome offer
exceptional picture clarity, flexible system integration, secure
data transmission and easy installation.

Camera
Image Sensor: 1/2.5" High-resolution CMOS Sensor
Resolution: 5MP
Effective Pixels: 2608(H)*1952(V)
Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
TV System: PAL/NTSC
Electronic Shutter Time Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
Minimun Illumination: 0.01Lux
S/N Ratio: ≥52dB
Scanning System: Progressive
Video Output :Network
Reset Button: NO

Lens Type
Focus Length: 8mm
Focus Control: manual
Lens Type: manual
Pixels: 5MP

Night Vision
Infrared LED: 14μx 20PCS
Infrared Distance: 30M
IR Status: Auto
IR Power: On Auto

Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
ONVIF: Support ONVIF 2.4(Profile S)
P2P :YES, Support QR Code
POE /
Video Delay: 0.3S (Within the Lan)
Main Stream 1: 2592*1944@20fp
2560*1920@20fp
Main Stream 2: 2560*1440@30fp
Main Stream 3: 1920*1080@30fps
Sub Stream 1: 720*480@20fps
720*480@30fps
Sub Stream 2 /
Sub Stream 3 /
Tri Stream /
IE Brower: IE9-11, Google Chrome(Under Ver 45), Firefox(Under Ver 53), Mac Safari(Under ver 11)
Smart Phone: iPhone, iPad, Android, Android Pad

Wireless
Antena: 3dbi
Hotspot /
Wi-Fi: Wi-Fi(IEEE802.11b/g/n),2.4Ghz
WIFI Range: No obstacles 300m Max.

Camera Features
Day/Night: Color/ B&W (IR-CUT )
Image Config: Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control)
Corridor Pattern: Support
ROI /
Defog Mode: Support
BLC: Support
HDR /
WDR /
Motion Detection: Support
Privacy Masking: 3 Rectangular Zone
Recording Mode: NVR/VMS/Web/SD Card
Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean,Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese

Interface
Audio: Optional Audio in(RCA interface)
Alarm /
SD Card Slot: support 256G Micro SD With External SD Card Slot
RS485 /

General
Housing: Metal, IP67
Anti-cut Bracket: NO
IR Cut Filter: YES
Operation Temperature: -20℃ ~ +60℃ RH95% Max
Storage Temperature: -20℃ ~ +60℃ RH95% Max
Power Source: DC12V±10%, 900mA
Dimension: ￠120 x 104(H) mm
Weight: 600g

Download the Silarius IP Tool and Scanner, viewing software, manuals and firmware from the Silarius Download Center.
