25-Channel 4K NVR, 16 PoE Ports, 1 Drive Bay, No HDD
No hard drive included. Add your own, or pick one above.
- Free shipping
- 3-year Silarius warranty
- US-based support team
- 30-day returns on eligible items
Buying in volume or for several sites? Get project pricing.
Add Silarius Live Monitoring. Trained operators watch every camera on this recorder at night, on weekends or 24/7, warn intruders off and call the police. Works with any camera system. From $69.99 per camera a month, no contract. Add monitoring
Complete your setup
Everything this needs to work on day one. Add with one tap.
SIL-XT5MP28AU5MP IR Turret IP Camera, 2.8mm LensPopular 5MP turret, indoor or outdoor$199.99
SIL-XB5MP28AU5MP IR Bullet IP Camera, 2.8mm Lens, Built-in MicPopular 5MP bullet for outdoor coverage$199.99
Specifications
System
| Main Processor | ARM Cortex A7 Processor |
|---|---|
| Operating System | Embedded LINUX |
Video
| Input | 25CH (3840×2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc) |
|---|---|
| Output | 1 VGA, 1 HD |
Audio
| Input | 1 Port RCA |
|---|---|
| Output | 1 Port RCA(Linear, 1kΩ) |
| Audio Bit Rate | 64kbps |
| Audio Compression | AAC,G711u, G711a, ADPCM_DVI4 |
| Intercom | support (two-way) |
Alarm
| Sensor Input | NO |
|---|---|
| Output | NO |
| Motion Detection | 25 Channel, MD Zones: 396 (22 × 18) |
| Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips |
AI Function
| Face database | Max support 16(Each database can max support 5000 faces) |
|---|---|
| Max number of supported faces | 20000 |
Display
| HD Output1 | Resolution:4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|---|---|
| HD Output2 | / |
| VGA | Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Display Split | 25CHxD1/16CHxD1/9CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k |
| Digital Zoom | YES |
| OSD | Camera Title, Time, Recording, Motion Detection, Event Alarm |
Recording
| Video Compression | H265/H264/H265+/H264+ |
|---|---|
| Record Rate | PAL :4k@12×25fp,5MP@20×25fp,4MP@25x25fp,3MP@25×25fp,1080P@25×25fp, 960P@25×25fp,720P@25×25fp, D1@25×25fp |
| NTSC | 4k@12×30fp,5MP@20×30fp,4MP@25×30fp,3MP@25×30fp,1080P@25×30fp, 960P@25×30fp, 720P@25×30fp, D1@25×30fp |
| Record Mode | Manual\Timer\Motion Detection\Smart Event |
Playback & Backup
| Local Sync Playback | 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, |
|---|---|
| Decode Capability | 1CH 4K(3840×2160)@30fps |
| Remote Sync Playback | YES |
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm,Tag search |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom,tag,clip |
| Backup Mode | USB Device/Network |
Network

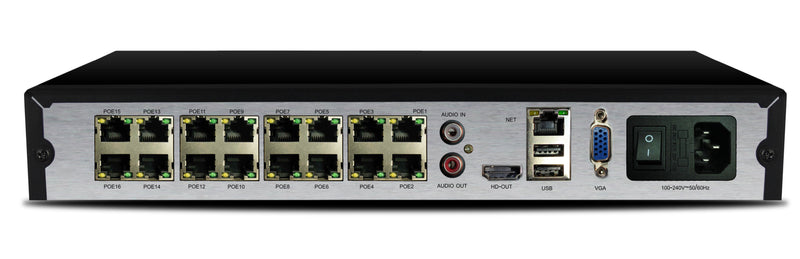

| Interface | 16 x RJ45 (10M/100M Adaptive Ethernet Interface)+1xRJ45 10M/100M/1000M Adaptive Ethernet Interface |
|---|---|
| Incoming Bandwidth | 120MB |
| Network Functions | TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE |
| Onvif Version | onvif S,onvif T |
| Web Browser | Edge,IE8-11, Google Chrome , Firefox ,Safari |
| Smart Phone | iPhone, iPad, Android, Android Pad |
| POE | 16 x Independent 100Mbps POE Network Interfaces(Output PowerAT mode 30W, AF mode 15W per Interface), |
Storage
| Interface Type | 1 SATA Hard Disk Interface (3.5" SATA) |
|---|---|
| Capacity | Up to 8TB capacity |
| eSATA | / |
General
| Language | Traditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, |
|---|---|
| USB Interface | 2 USB 2.0 Interfaces |
| Power Supply | AC 100-240V |
| Working Environment | -10~55℃/10~90% |
| Dimension(W×D×H) | 310*295*46(mm) |
| Weight | 2KG (without HDD) |
Full description
System
Main Processor: ARM Cortex A7 Processor
Operating System: Embedded LINUX
Video
Input: 25CH (3840×2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
Output: 1 VGA, 1 HD
Audio
Input: 1 Port RCA
Output: 1 Port RCA(Linear, 1kΩ)
Audio Bit Rate: 64kbps
Audio Compression: AAC,G711u, G711a, ADPCM_DVI4
Intercom : support (two-way)
Alarm
Sensor Input: NO
Output: NO
Motion Detection: 25 Channel, MD Zones: 396 (22 × 18)
Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips
AI Function
Face Comparison
Channel 1-4 support video stream face comparison(Every channel max support 4mp@30fps)
Face database: Max support 16(Each database can max support 5000 faces)
Max number of supported faces: 20000
Display
HD Output1: Resolution:4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HD Output2: /
VGA: Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split: 25CHxD1/16CHxD1/9CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k
Digital Zoom: YES
OSD: Camera Title, Time, Recording, Motion Detection, Event Alarm
Recording
Video Compression: H265/H264/H265+/H264+
Resolution:
4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),
3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
Record Rate: PAL :4k@12×25fp,5MP@20×25fp,4MP@25x25fp,3MP@25×25fp,1080P@25×25fp, 960P@25×25fp,720P@25×25fp, D1@25×25fp
NTSC: 4k@12×30fp,5MP@20×30fp,4MP@25×30fp,3MP@25×30fp,1080P@25×30fp, 960P@25×30fp, 720P@25×30fp, D1@25×30fp
Record Mode: Manual\Timer\Motion Detection\Smart Event
Playback & Backup
Local Sync Playback: 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps,
4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps,16CH D1@30fps
Decode Capability: 1CH 4K(3840×2160)@30fps
Remote Sync Playback: YES
Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm,Tag search
Playback Functions: Play, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom,tag,clip
Backup Mode: USB Device/Network
Network
Interface: 16 x RJ45 (10M/100M Adaptive Ethernet Interface)+1xRJ45 10M/100M/1000M Adaptive Ethernet Interface
Incoming Bandwidth: 120MB
Network Functions:TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
Onvif Version: onvif S,onvif T
Web Browser: Edge,IE8-11, Google Chrome , Firefox ,Safari
CMS Software Support Windows 7/ Windows 8/Windows 10/MAC OS
Cloud Support(P2P) Yes
Smart Phone: iPhone, iPad, Android, Android Pad
POE: 16 x Independent 100Mbps POE Network Interfaces(Output PowerAT mode 30W, AF mode 15W per Interface),
45/78 line order, Total Power Output≧200W, Support Plug and Play, Support network cable extended mode Max. 250M
WIFI /
Storage
Interface Type: 1 SATA Hard Disk Interface (3.5" SATA)
Capacity: Up to 8TB capacity
eSATA: /
General
Language: Traditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese,Janpanese
USB Interface: 2 USB 2.0 Interfaces
RS485 /
Power Supply: AC 100-240V
Working Environment: -10~55℃/10~90%
Dimension(W×D×H): 310*295*46(mm)
Weight: 2KG (without HDD)
