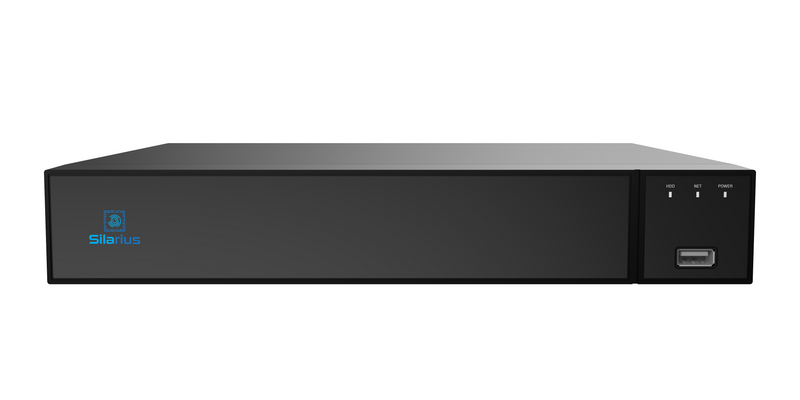

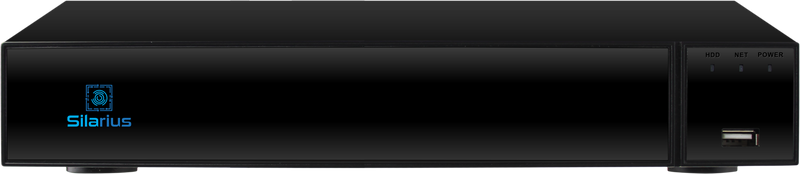

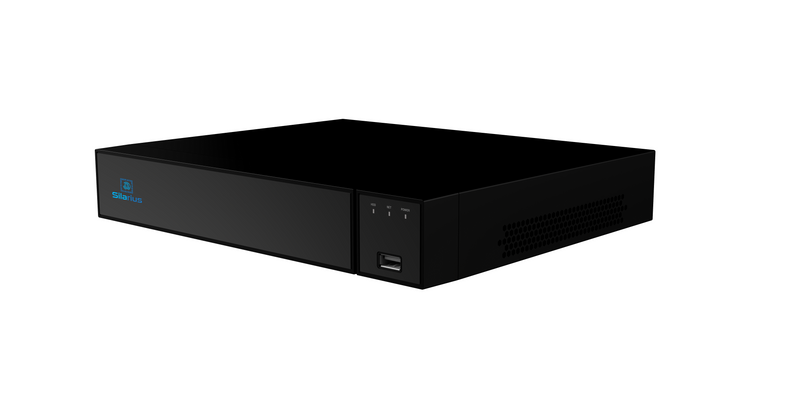

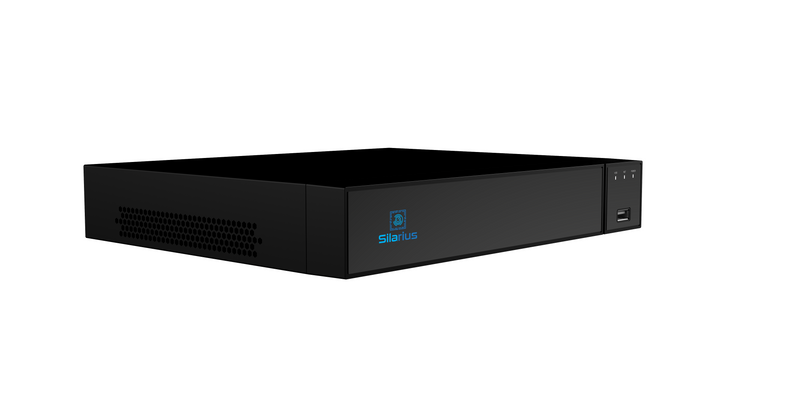

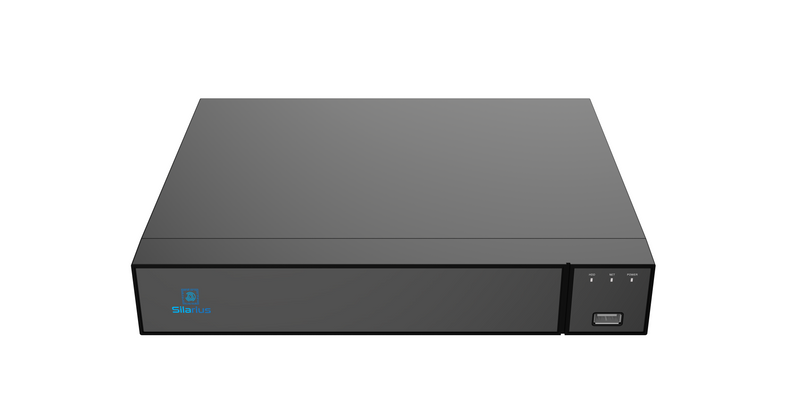

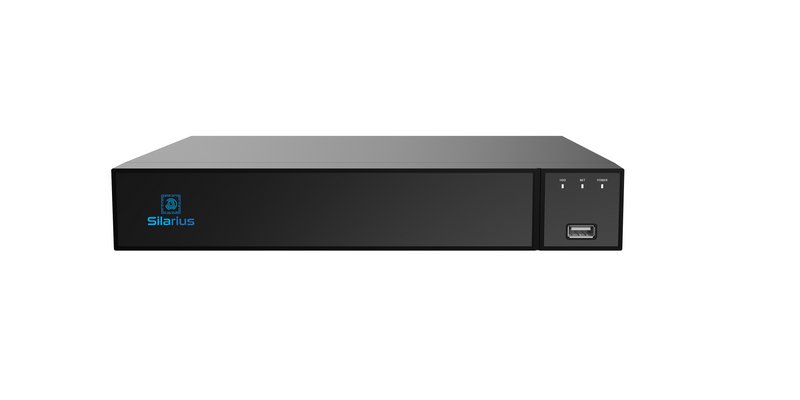

XVR (DVR+NVR) 4CH BNC

System
Main Processor: MC6630
Operating System: Embedded LINUX

Video
Input
:Normal Mode: Analog: 4*(TVI/AHD: 5M@12fps; AHD/TVI/CVI: 4M@15fps;
AHD/TVI: 3M@18fps; AHD/TVI/CVI: 1080P/720P; Analog: 960H)
Analog+Network: 2*Analog(TVI/AHD: 5M@12fps; AHD/TVI/CVI: 4M@15fps;
AHD/TVI: 3M@18fps; AHD/TVI/CVI: 1080P/720P; Analog: 960H)+4*network(MAX 2MP)
Network: 9*5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ≤48M)

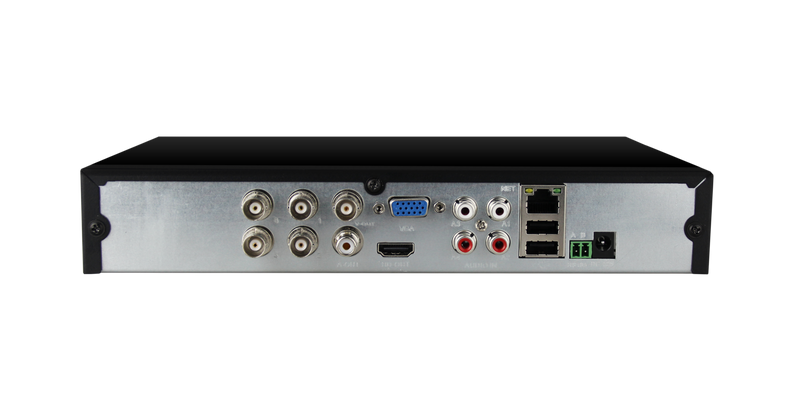

Input: 4CH BNC
Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
Output: 1HDMI ,1 VGA

Audio
Input: 1 Channel, RCA
Two-way Audio :NO
Output: 1 Channel, RCA

Alarm
Sensor Input: NO
Output: NO
Motion Detection: 4 Channel(max 9 Channel in pure network mode)
Trigger Events :Recording, Email, Screen tips, Buzzer, Push notifications(motion detection)
Email Alarm: Send Image to The Designated E-mail

PTZ
Interface: RS485
Protocol: Pelco-D, Pelco-P
Baud Rate :110~921600
Address: 0~255

Display
VGA Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
HD Output Resolution:1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
Display Split: 9 Channel/4 Channel / 1Channel
Privacy Masking: 3 Rectangular Zones (Each camera)
OSD :Camera title, Time, Video loss, Alarm, Motion detection, Recording

Recording
Video Compression: H.265/H.264
Audio Compression: G.711U/G.711A
Resolution: 5MP_Lite(1296×1952),4MP_Lite(1280×1440),3MP_Lite(1024×1536),1080N(960×1080),720P(1280×720),960H(P:960×576/N:960×480)
Video Quality: Lowest/Low/Ordinary/Good/Better/Best
Record Rate:
Analog: PAL:5MP_Lite(1296×1944 4*8fps),4MP_Lite(1280×1440 4*15fps),
3MP_Lite(1024×1536 4*18fps),1080N(960x1080 4*18fps),720P(1280×720 4*20fps), 960H(960×480 4*25fps)
NTSC: 5MP_Lite(1296×1944 4*8fps),4MP_Lite(1280×1440 4*15fps),
3MP_Lite(1024×1536 4*18fps),1080N(960x1080 4*18fps),720P(1280×720 4*20fps), 960H(960×480 4*30fps)
Pure IP(H.265):
PAL: 5MP@8×25fps,4MP@9x25fps,3MP@9×25fps,1080P@9×25fps,960P@9×25fps,720P@9×25fps,D1@9×25fps
NTSC: 5MP@8×30fps,4MP@9×30fps,3MP@9×30fps,1080P@9×30fps, 960P@9×30fps, 720P@9×30fps, D1@9×30fps

Playback & Backup
Decode Capability: 2CH 1080P@30fps
Sync Playback:
Pure Analog: 4CH 960H@25fps, 2CH 720P@20fps, 2CH 1080N@18fps,
1CH 5M_LITE@8fps, 1CH 4M_LITE@15fps, 1CH 3M_LITE@18fps
Mixture mode: 4CH 720P@25fps, 2CH 1080P@25fps,
1CH 5M_LITE@8fps, 1CH 4M_LITE@15fps, 1CH 3M_LITE@18fps
Pure Network: 4CH*720P@25fps, 2CH 1080P@25fps, 1CH 5MP@25fps
Remote Playback: 1 Channel
Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions: Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen
Smart Phone Playback : 4 Channel
Backup Mode: USB Device(with format FAT 32 )/Network/FTP

Network
Interface: 1 RJ45 10M/100M Adaptive Ethernet Interface
Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP,DHCP, FTP, DDNS, RTP, RTSP, RTCP
DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE,HDPROVN
Web Browser: Edge,IE8-11, Google Chrome , Firefox ,Safari
CMS Software: Support Windows 7/ Windows 8/Windows 10
Extra Stream: CIF/D1(1~25fps)
Smart Phone: iPhone, ipad, Android ,Android pad

Storage
Interface Type: 1 SATA Interface
Capacity:  1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)

General
Language: Simplified Chinese,Traditional Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,
Japanese, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek, Vietnamese,
UTC Control: YES
USB Interface :2 USB 2.0 Interfaces
Power consumption: DC 12V/2A ≤4W (Without Hard Disk)
Working Environment: -10~55℃/10~90%
Dimension: (W×D×H) 260*215*43(mm)
Weight: 2kg (Without HDD)
