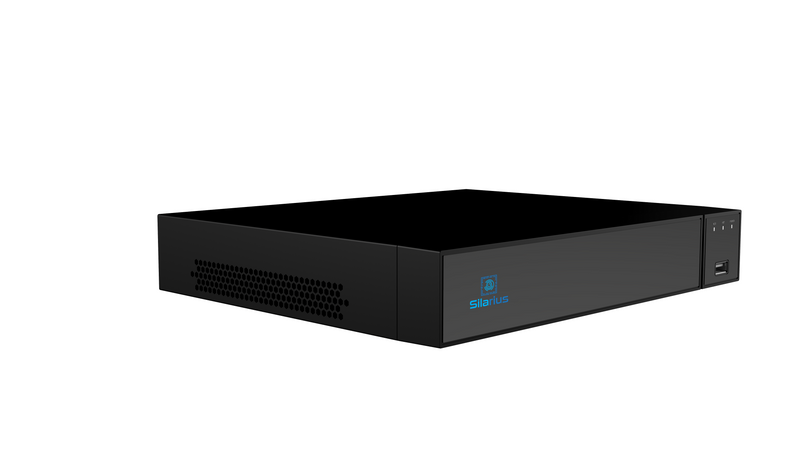

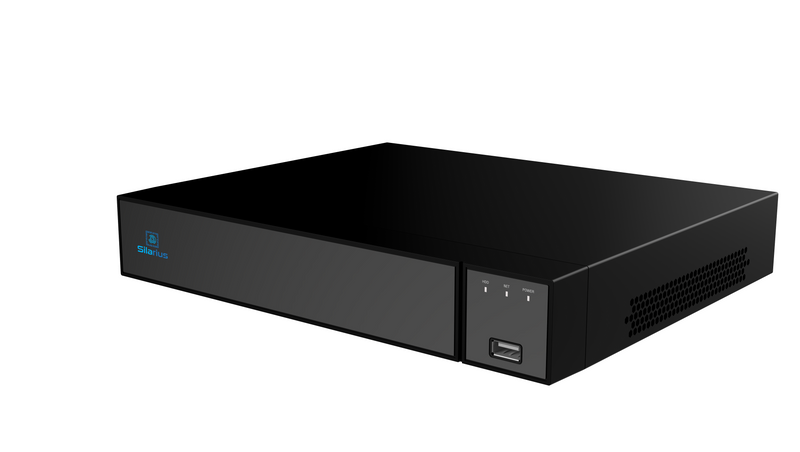

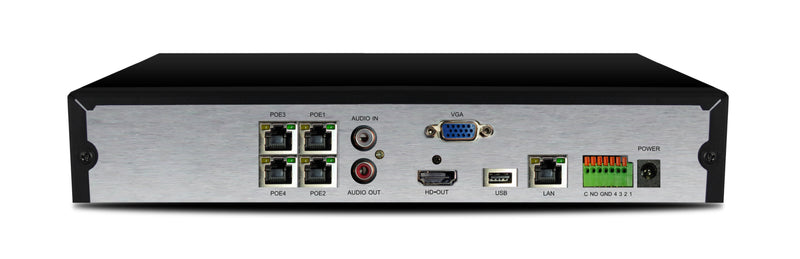

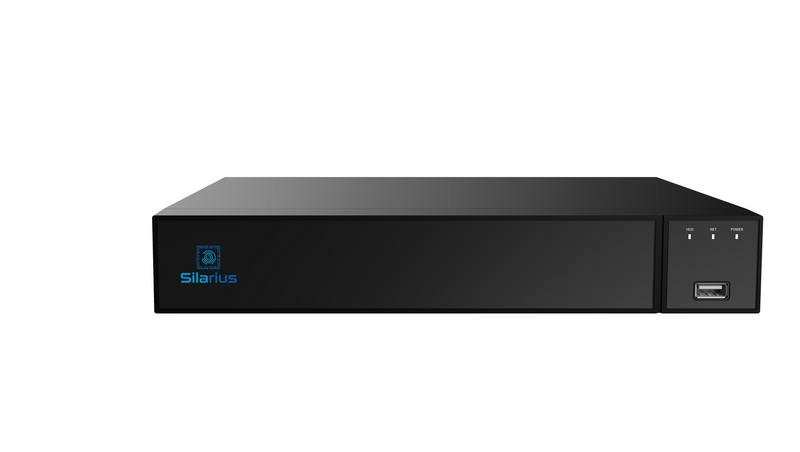

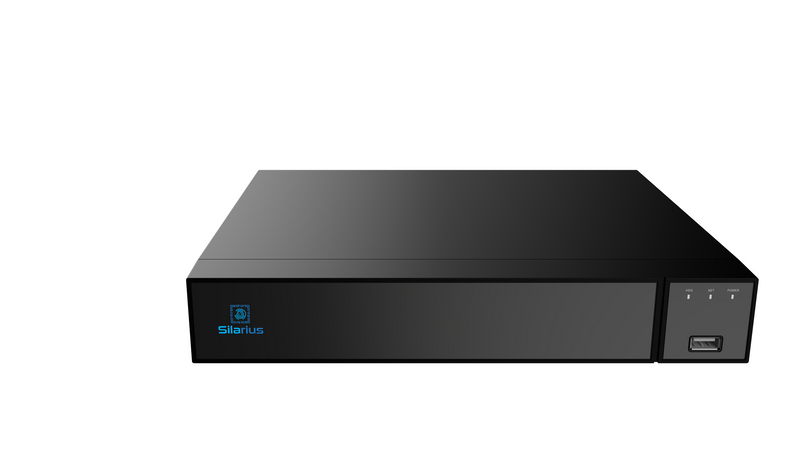

9CH total, 4-Channels 4K POE NVR Gigabit, NVR
- Free shipping
- 3-year Silarius warranty
- US-based support team
Buying in volume or for several sites? Get project pricing.
Complete your setup
Everything this needs to work on day one. Add with one tap.
SIL-XT5MP28AU5MP IR Turret Network CameraPopular 5MP turret, indoor or outdoor$199.99
SIL-XB5MP28AU5MP IR Fixed Bullet Network CameraPopular 5MP bullet for outdoor coverage$199.99
SIL-B16M3POE1G30016 Ports 10/100/1000Mbps Gigabit Layer3 Managed PoE+ switch with 4 Ports 10G SFP+ Uplink,1USB, 1 Console, 6KV surge protection,300W,rack mount installationPoE power for more cameras$220.00
HDMI Cable (15 Feet) Ultra HDMI 2.0V Support 4K 2160P, 1080P, 3D, Audio Return and Ethernet - 1 Pack 15'Connect a monitor$8.99
Specifications
System
| Main Processor | ARM Cortex A7 Processor |
|---|---|
| Operating System | Embedded LINUX |
Video
| Input | 9CH(3840*2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc) |
|---|---|
| Output | 1 VGA, 1 HD |
Audio
| Input | 1 Port RCA |
|---|---|
| Output | 1 Port RCA(Linear, 1kΩ) |
| Audio Bit Rate | 64kbps |
| Audio Compression | G711u, G711a, ADPCM_DVI4 |
| Intercom | support (two-way) |
Alarm
| Sensor Input | 4 |
|---|---|
| Output | 1 |
| Motion Detection | 9 Channel, MD Zones: 396 (22 × 18) |
| Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output |
Display
| HD Output1 | 1024x768/60Hz，1280x720/60Hz，1280x1024/60Hz，1920x1080/60Hz，4K(3840x2160)/30Hz |
|---|---|
| HD Output2 | / |
| VGA | Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Display Split | 9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k |
| Digital Zoom | YES |
| OSD | Camera Title, Time, Recording, Motion Detection, Event Alarm |
Recording
| Video Compression | H265/H264/H265+/H264+ |
|---|---|
| Record Rate | PAL :4K@8x25fps,5MP@9 ×25fp,4MP@9x25fp,3MP@9 ×25fp,1080P@9×25fp, 960P@9×25fp,720P@9×25fp, D1@9×25fp |
| NTSC | 4K@8x30fps,5MP@9 ×30fp,4MP@9×30fp,3MP@9×30fp,1080P@9×30fp, 960P@9×30fp, 720P@9×30fp, D1@9×30fp |
| Record Mode | Manual\Timer\Motion Detection\ Alarm\Motion and Alarm\Smart Event |
Playback & Backup
| Local Sync Playback | 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, |
|---|---|
| Decode Capability | 4CH 1080P(1920x1080)@30fps |
| Remote Sync Playback | YES |
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm,Tag search |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom,tag,clip |
| Backup Mode | USB Device/Network |
Network
| Interface | 1xRJ45 10M/100MAdaptive Ethernet Interface 10M/100M/1000M Adaptive Ethernet Interface |
|---|---|
| Incoming Bandwidth | 80MB |
| Network Functions | TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE |
| Onvif Version | onvif S,onvif T |
| Web Browser | Edge,IE8-11, Google Chrome , Firefox ,Safari |
| Smart Phone | iPhone, iPad, Android, Android Pad |
| POE | 4x Independent 100Mbps POE Network Interfaces(Output PowerAT mode 30W, AF mode 15W per Interface), |
Storage
| Interface Type | 1 SATA Hard Disk Interface (3.5" SATA) |
|---|---|
| Capacity | Up to 8TB capacity |
| eSATA | / |
General
| Language | Traditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, |
|---|---|
| USB Interface | 2 USB 2.0 Interfaces |
| Power Supply | DC52V∕1250mA |
| Working Environment | -10~55℃/10~90% |
| Dimension(W×D×H) | 260*215*43(mm) |
| Weight | 2KG (without HDD) |
Full description
System
Main Processor: ARM Cortex A7 Processor
Operating System: Embedded LINUX
Video
Input: 9CH(3840*2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
Output: 1 VGA, 1 HD
Audio
Input: 1 Port RCA
Output: 1 Port RCA(Linear, 1kΩ)
Audio Bit Rate: 64kbps
Audio Compression: G711u, G711a, ADPCM_DVI4
Intercom : support (two-way)
Alarm
Sensor Input: 4
Output: 1
Motion Detection: 9 Channel, MD Zones: 396 (22 × 18)
Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output
Display
HD Output1:1024x768/60Hz，1280x720/60Hz，1280x1024/60Hz，1920x1080/60Hz，4K(3840x2160)/30Hz
HD Output2: /
VGA: Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split: 9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k
Digital Zoom: YES
OSD: Camera Title, Time, Recording, Motion Detection, Event Alarm
Recording
Video Compression: H265/H264/H265+/H264+
Resolution:
4k(3840×2160),5MP(2592 ×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),
1080P(1920×1080),960P(1280x960),720P(1280 ×720),D1 (720×576/720×480)
Record Rate: PAL :4K@8x25fps,5MP@9 ×25fp,4MP@9x25fp,3MP@9 ×25fp,1080P@9×25fp, 960P@9×25fp,720P@9×25fp, D1@9×25fp
NTSC: 4K@8x30fps,5MP@9 ×30fp,4MP@9×30fp,3MP@9×30fp,1080P@9×30fp, 960P@9×30fp, 720P@9×30fp, D1@9×30fp
Record Mode: Manual\Timer\Motion Detection\ Alarm\Motion and Alarm\Smart Event
Playback & Backup
Local Sync Playback: 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps,
4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps,9CH D1@30fps
Decode Capability: 4CH 1080P(1920x1080)@30fps
Remote Sync Playback: YES
Search Mode:ALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm,Tag search
Playback Functions: Play, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom,tag,clip
Backup Mode: USB Device/Network
Network
Interface: 1xRJ45 10M/100MAdaptive Ethernet Interface 10M/100M/1000M Adaptive Ethernet Interface
Incoming Bandwidth: 80MB
Network Functions:TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
Onvif Version: onvif S,onvif T
Web Browser: Edge,IE8-11, Google Chrome , Firefox ,Safari
CMS Software Support Windows 7/ Windows 8/Windows 10/MAC OS
Cloud Support(P2P) Yes
Smart Phone: iPhone, iPad, Android, Android Pad
POE: 4x Independent 100Mbps POE Network Interfaces(Output PowerAT mode 30W, AF mode 15W per Interface),
45/78 line order, Total Power Output≧200W, Support Plug and Play, Support network cable extended mode Max. 250M
WIFI /
Storage
Interface Type: 1 SATA Hard Disk Interface (3.5" SATA)
Capacity: Up to 8TB capacity
eSATA: /
General
Language: Traditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese,Janpanese
USB Interface: 2 USB 2.0 Interfaces
RS485 /
Power Supply: DC52V∕1250mA
Working Environment: -10~55℃/10~90%
Dimension(W×D×H): 260*215*43(mm)
Weight: 2KG (without HDD)
