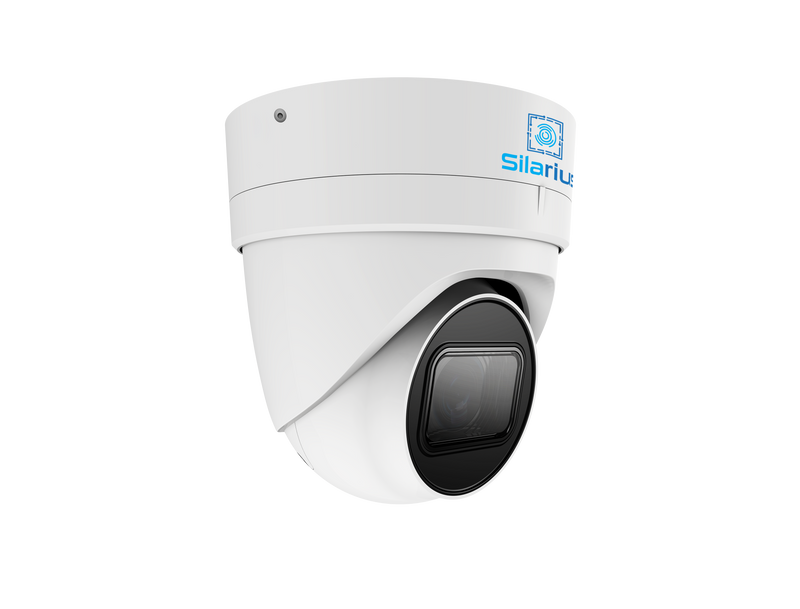

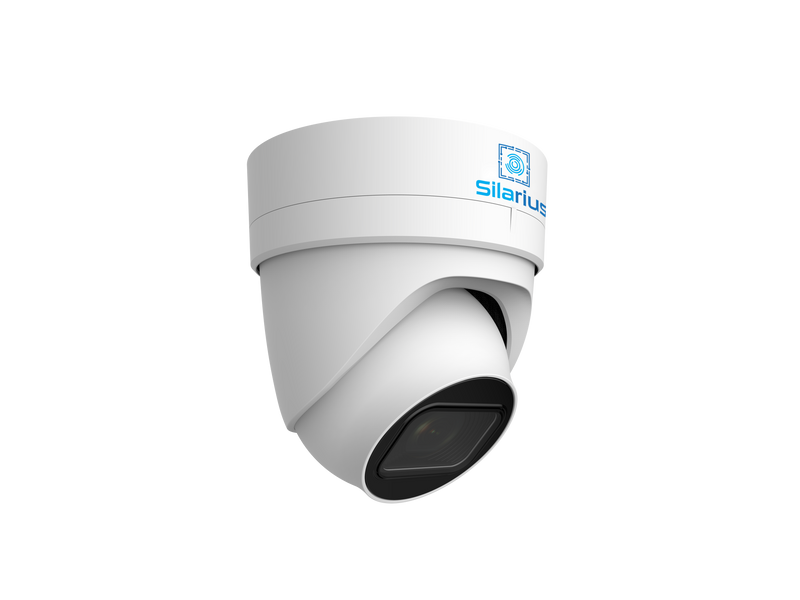

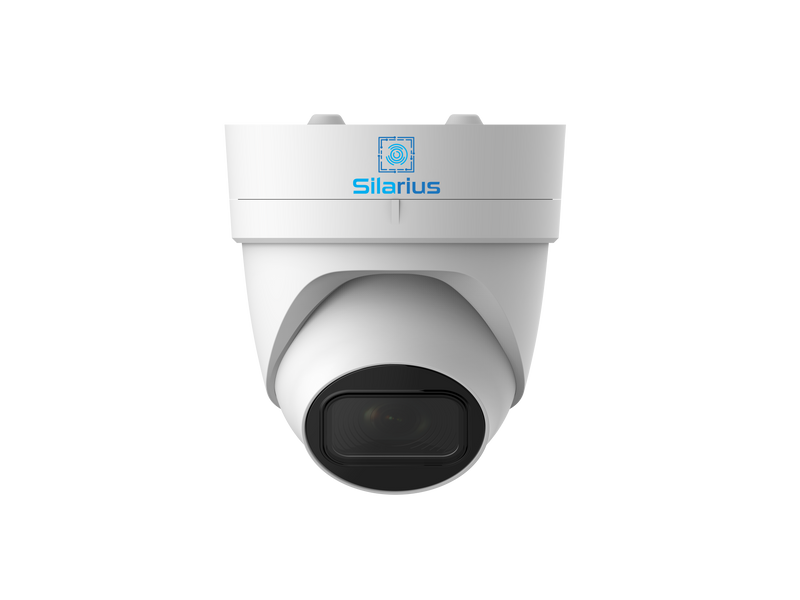

Dome 12MP 6K Auto Focus
- Free shipping
- 3-year Silarius warranty
- US-based support team
No plan selected. Pick a video quality or how long to keep video to add Silarius Cloud, or just add the camera to your cart.
Buying in volume or for several sites? Get project pricing.
Works with Silarius Cloud. Connect this camera through the Silarius Gateway for remote viewing, AI search and alerts. How Silarius Cloud works
Add Silarius Live Monitoring. Trained operators watch this camera at night, on weekends or 24/7, warn intruders off and call the police. Works with any camera system. From $69.99 per camera a month, no contract. Add monitoring
Complete your setup
Everything this needs to work on day one. Add with one tap.
SIL-B16M3POE1G30016 Ports 10/100/1000Mbps Gigabit Layer3 Managed PoE+ switch with 4 Ports 10G SFP+ Uplink,1USB, 1 Console, 6KV surge protection,300W,rack mount installationPowers and connects your cameras, one cable each$220.00
SIL-CLOUDGATEWAY200Gateway V2 - Industrial Edge AI Cloud Gateway for up to 200 Cameras, 4G LTE + GPS, Dual Gigabit, SSDAdds Silarius Cloud: watch anywhere, AI search, alerts$899.99
SIL-NVR4CHPOE29CH total, 4-Channels 4K POE NVR Gigabit, NVR, 2TB HDDRecords 24/7 on site, plug-and-play PoE$399.99
SIL-RJ45CAT6UTP CAT6 RJ45 Plastic Plug (100-PACK)Cable ends for a clean, reliable install$54.00
Specifications
Camera
| Image Sensor | 1/1.7" SONY Low Illumination CMOS Sensor |
|---|---|
| Resolution | 12MP |
| Effective Pixels | 4072 (H) × 3046 (V) |
| Compression | H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec |
| Minimun Illumination | 0.01Lux |
| S/N Ratio | ≥52dB |
| Scanning System | Progressive |
| Video Output | Network |
Lens
| Focus Length | 3.6-11mm |
|---|---|
| Focus Control | Auto |
| Lens Type | Auto |
| Pixels | 12MP |
Night Vision
| Infrared LED | 42μ x 4PCS |
|---|---|
| Infrared Distance | 40M |
| IR Status | Auto Control |
| IR Power | On Manual & Timed mode |
Network
| Ethernet | RJ-45 (10/100Base-T) |
|---|---|
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,UDP |
| ONVIF | Support ONVIF 2.4 |
| P2P | YES, Support QR Code |

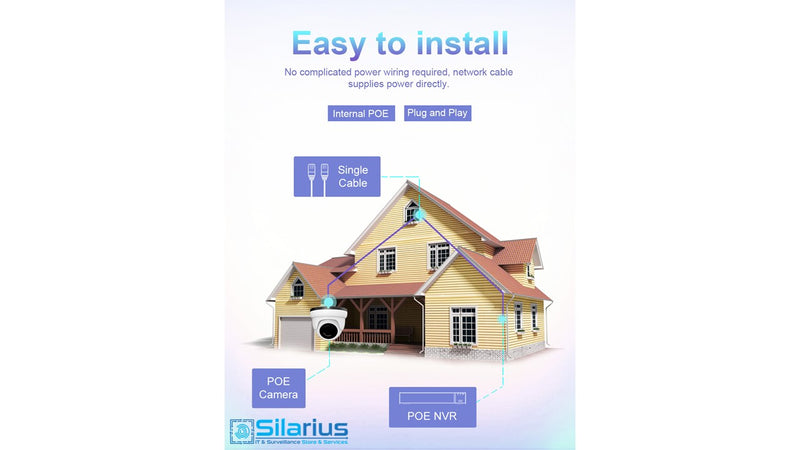

| POE | Internal, Support IEEE 802.3af |
| Video Delay | 0.3S (Within the Lan) |
| Main Stream 2 | 2592*1944@30fps |
| Sub Stream 1 | 720*480@20fps |
| Tri Stream | 352*288@20fps |
| IE Brower | IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), Mac Safari(lower than version 12) |
| Smart Phone | iPhone, iPad, Android, Android Pad |
Camera Features
| Day/Night | Color/ B&W (IR-CUT ) |
|---|---|
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering, HLC, Distortion |
| Corridor Pattern | Support |
| Defog Mode | Support |
| ROI | Support |
| BLC | Support |
| WDR DWDR | 50dB |
| Motion Detection | Support |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR/CMS/Web |
| Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, |
Interface
| Audio | No |
|---|
General
| Housing | IP67 |
|---|---|
| Anti-cut Bracket | NO |
| IR Cut Filter | YES |
| Operation Temperature | -20℃ ~ +60℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | POE / DC12V±10%,950mA |
| Dimension | φ136 x 148(H)mm |
| Weight | 1.7Kgs |
Full description

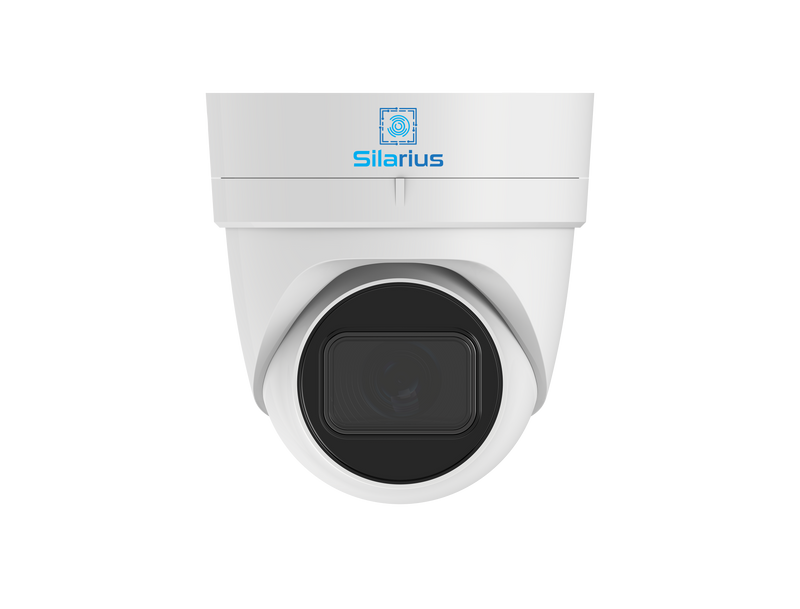

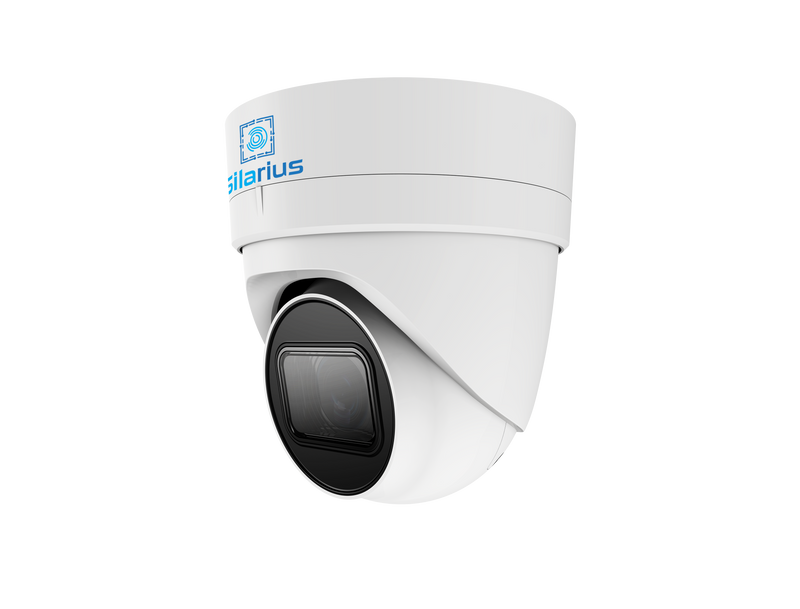

The Silarius SIL-HD12MPAF Dome 12MP 6K Auto Focus (NDAA Compliant) is perfect for any security or surveillance needs. It provides crystal clear images with its 6k resolution and advanced auto focus technology, so you'll never miss a detail. And it's NDAA compliant, meaning it meets the highest standards of quality and performance in the industry. Protect what matters most with this reliable dome camera from Silarius!
- NDAA compliance ensures the highest standards of cybersecurity and data protection
- IP67 rating provides dustproof, waterresistant performance in challenging outdoor environments
with the Pro series line of 5MP, 8MP, and 12MP IP cameras including a
2MP, and 4MP outdoor speed dome. The Silarius cameras, including
indoor and outdoor dome, bullet and outdoor speed dome offer
exceptional picture clarity, flexible system integration, secure
data transmission and easy installation.
Image Sensor: 1/1.7" SONY Low Illumination CMOS Sensor
Resolution: 12MP
Effective Pixels: 4072 (H) × 3046 (V)
Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
TV System: PAL/NTSC
Electronic Shutter Time: Auto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec
Minimun Illumination: 0.01Lux
S/N Ratio: ≥52dB
Scanning System: Progressive
Video Output: Network
Lens
Focus Length: 3.6-11mm
Focus Control: Auto
Lens Type: Auto
Pixels: 12MP
Night Vision
Infrared LED: 42μ x 4PCS
Infrared Distance: 40M
IR Status: Auto Control
IR Power: On Manual & Timed mode
Network
Ethernet: RJ-45 (10/100Base-T)
Wireless /
Protocol :TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,UDP
ONVIF: Support ONVIF 2.4
P2P: YES, Support QR Code
POE: Internal, Support IEEE 802.3af
Video Delay: 0.3S (Within the Lan)
Main Stream 1:
4000*3000@20fps
3840*2160 @30fps
3072*2048@30fps
Main Stream 2: 2592*1944@30fps
2560*1920@30fps
Main Stream 3:
2560*1440@30fps
1920*1080@30fps
1280*720@30fps
Sub Stream 1: 720*480@20fps
720*480@30fps
Sub Stream 2 /
Sub Stream 3 /
Tri Stream :352*288@20fps
352*288@30fps
IE Brower: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), Mac Safari(lower than version 12)
Smart Phone: iPhone, iPad, Android, Android Pad
Camera Features
Day/Night: Color/ B&W (IR-CUT )
Image Config: Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering, HLC, Distortion
Full Starlight /
Corridor Pattern: Support
Defog Mode: Support
ROI :Support
BLC: Support
WDR DWDR: 50dB
Motion Detection: Support
Privacy Masking: 3 Rectangular Zone
Recording Mode: NVR/CMS/Web
Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean,
Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese
Interface
Audio : No
Alarm /
RS485 /
General
Housing: IP67
Anti-cut Bracket: NO
IR Cut Filter: YES
Operation Temperature: -20℃ ~ +60℃ RH95% Max
Storage Temperature: -20℃ ~ +60℃ RH95% Max
Power Source : POE / DC12V±10%,950mA
Dimension: φ136 x 148(H)mm
Weight: 1.7Kgs
