SIL-PTZ5MPX22

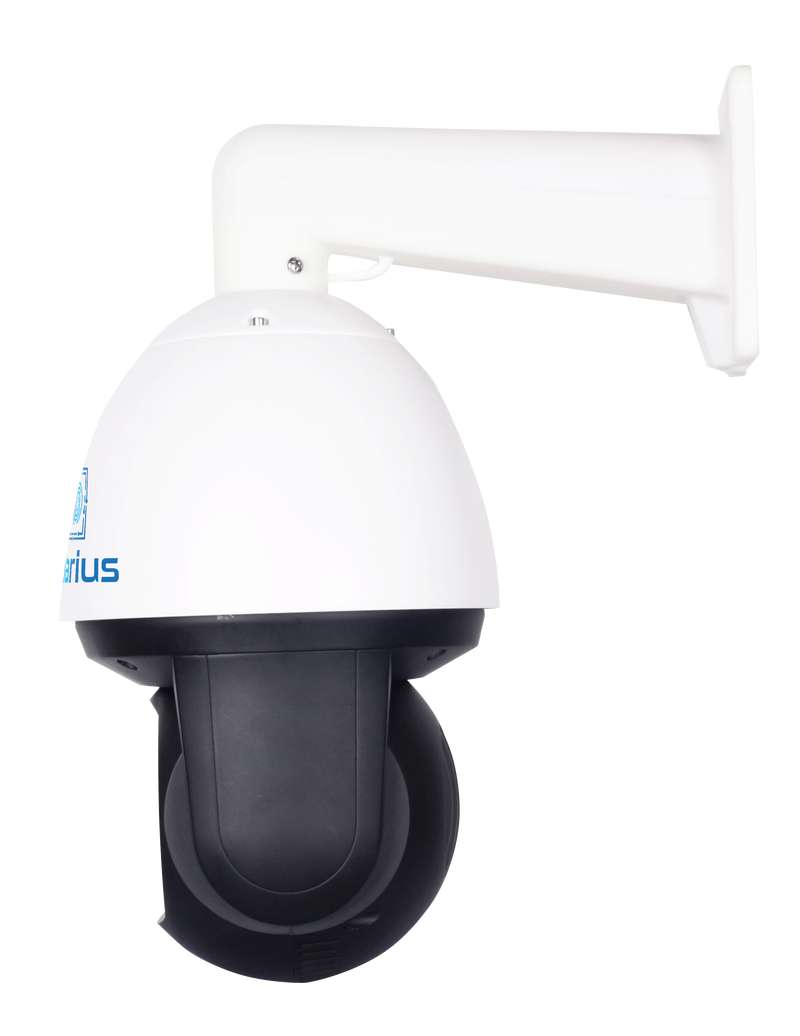

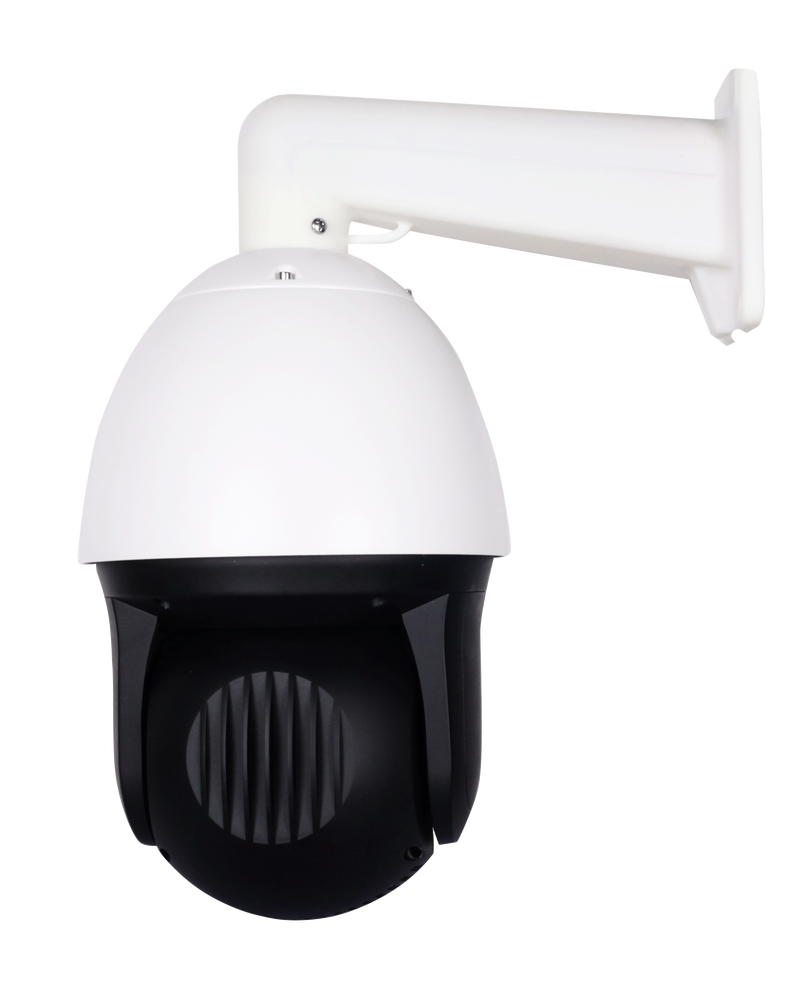

7" PTZ 5MP High speed dome X22 Optical Zoom Camera

NDAA compliantWorks with Silarius Cloud

$599.99

Free shipping
3-year Silarius warranty
US-based support team

Add Silarius Cloud recordingOptional. Watch and search video from anywhere. From $6.99 per camera per month.

Video quality

Keep video for

No plan selected. Pick a video quality or how long to keep video to add Silarius Cloud, or just add the camera to your cart.

Buying in volume or for several sites? Get project pricing.

Works with Silarius Cloud. Connect this camera through the Silarius Gateway for remote viewing, AI search and alerts. How Silarius Cloud works

Complete your setup

Everything this needs to work on day one. Add with one tap.

SIL-CBX22Ceiling bracket for SIL-PTZ5MPX22Made for the SIL-PTZ5MPX22
$66.99
SIL-B16M3POE1G30016 Ports 10/100/1000Mbps Gigabit Layer3 Managed PoE+ switch with 4 Ports 10G SFP+ Uplink,1USB, 1 Console, 6KV surge protection,300W,rack mount installationPowers and connects your cameras, one cable each
$220.00
SIL-CLOUDGATEWAY200Gateway V2 - Industrial Edge AI Cloud Gateway for up to 200 Cameras, 4G LTE + GPS, Dual Gigabit, SSDAdds Silarius Cloud: watch anywhere, AI search, alerts
$899.99
SIL-NVR4CHPOE29CH total, 4-Channels 4K POE NVR Gigabit, NVR, 2TB HDDRecords 24/7 on site, plug-and-play PoE
$399.99

Specifications

Camera

Image Sensor	1/2.8" SONY Starvis Back-illuminated CMOS Sensor
Horizontal Resolution	5MP
Compression	H.265/H.264
S/N Ratio	>50db

PTZ

Horizontal Rotation Speed	120°/S
Horizontal Rotation Range	0°~360°
Tilt Rotation Speed	30°/s
Tilt Rotation Range	0°~93°
Preset Points	220
Guard Tours	3 groups
Guard Points	Max.16 points

Lens

Focus Length	4.7mm-94mm
Focus Control	22X Optical Zoom

Night Vision

Infrared LED	￠42x6PCS IR LEDS + 2PCS Laser LED
IR Range	120m
Day-night mode	AUTO

Network

Network protocol	TCP/IP, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, UDP, IGMP,P2P
ONVIF	Support
Network interface	Built-in RJ45 network interface,support 10M/100M IP DATA
Main Stream1	2560*1920@20fps
Main Stream2	2560*1440@25fps
Main Stream3	2304*1296@25fps
Main Stream4	1920*1080@25fps
Main Stream5	1280*720@25fps
Main Stream6	640*512@25fps
Sub Stream1	800*448@25fps
Sub Stream2	704*576@25fps
Sub Stream3	640*360@25fps
Sub Stream4	352*288@25fps

Interface

Audio	No
POE	Yes

General

Weatherproof	IP66
Operating Temperature	Indoor: 0°~ +40° Outdoor: -40°~ +60°
Operating Humidity	≤90% Non Condensing
Power	DC12V/4A / POE

Full description

See it all with Silarius SIL-PTZ5MPX22 - the NDAA compliant 5MP high speed dome X22 Optical Zoom Camera
The Silarius SIL-PTZ5MPX22 7" PTZ 5MP High speed dome X22 Optical Zoom Camera is the perfect solution for your security needs. With its NDAA Compliant technology, this camera offers exceptional clarity and resolution with a powerful 22x optical zoom that allows you to see details in any environment. Its versatile pan/tilt/zoom capabilities ensure easy coverage of large areas while its high speed response time keeps up with fast-moving subjects or events. Keep your property safe and secure with the top-of-the line Silarius SIL-PTZ5MPX22 7" PTZ 5MP High speed dome X22 Optical Zoom Camera!

7" PTZ size allowing for flexible maneuvering of the camera from one to another or up and down shooting angles
X22 optical zoom allows for extreme close up shots as well as long range monitoring capabilities (up to 350 m)

Silarius is taking quality and reliability to the next level
with the Pro series line of 5MP, 8MP, and 12MP IP cameras including a
2MP, and 4MP outdoor speed dome. The Silarius cameras, including
indoor and outdoor dome, bullet and outdoor speed dome offer
exceptional picture clarity, flexible system integration, secure
data transmission and easy installation.

Camera
Image Sensor: 1/2.8" SONY Starvis Back-illuminated CMOS Sensor
Horizontal Resolution: 5MP
Compression: H.265/H.264
S/N Ratio: >50db

PTZ
Horizontal Rotation Speed: 120°/S
Horizontal Rotation Range: 0°~360°
Tilt Rotation Speed: 30°/s
Tilt Rotation Range: 0°~93°
Preset Points: 220
Guard Tours: 3 groups
Guard Points: Max.16 points

Lens
Focus Length: 4.7mm-94mm
Focus Control: 22X Optical Zoom

Night Vision
Infrared LED: ￠42x6PCS IR LEDS + 2PCS Laser LED
IR Range: 120m
Day-night mode: AUTO

Network
Network protocol: TCP/IP, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, UDP, IGMP,P2P
ONVIF: Support
Network interface: Built-in RJ45 network interface,support 10M/100M IP DATA
Main Stream1: 2560*1920@20fps
Main Stream2: 2560*1440@25fps
Main Stream3: 2304*1296@25fps
Main Stream4: 1920*1080@25fps
Main Stream5: 1280*720@25fps
Main Stream6: 640*512@25fps
Sub Stream1 :800*448@25fps
Sub Stream2: 704*576@25fps
Sub Stream3 :640*360@25fps
Sub Stream4 :352*288@25fps

Interface
Audio :No
Alarm /
SD Card Slot /
POE: Yes

General
Weatherproof: IP66
Operating Temperature: Indoor: 0°~ +40° Outdoor: -40°~ +60°
Operating Humidity: ≤90% Non Condensing
Power: DC12V/4A / POE
Lightning Protection Transient voltage 6000V
Dimension 31x31x44(cm)
Weight 10.7Kgs

Download the Silarius IP Tool and Scanner, viewing software, manuals and firmware from the Silarius Download Center.
